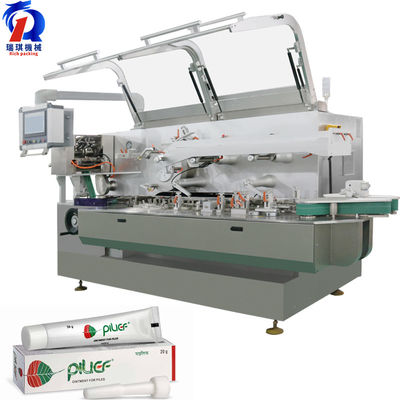

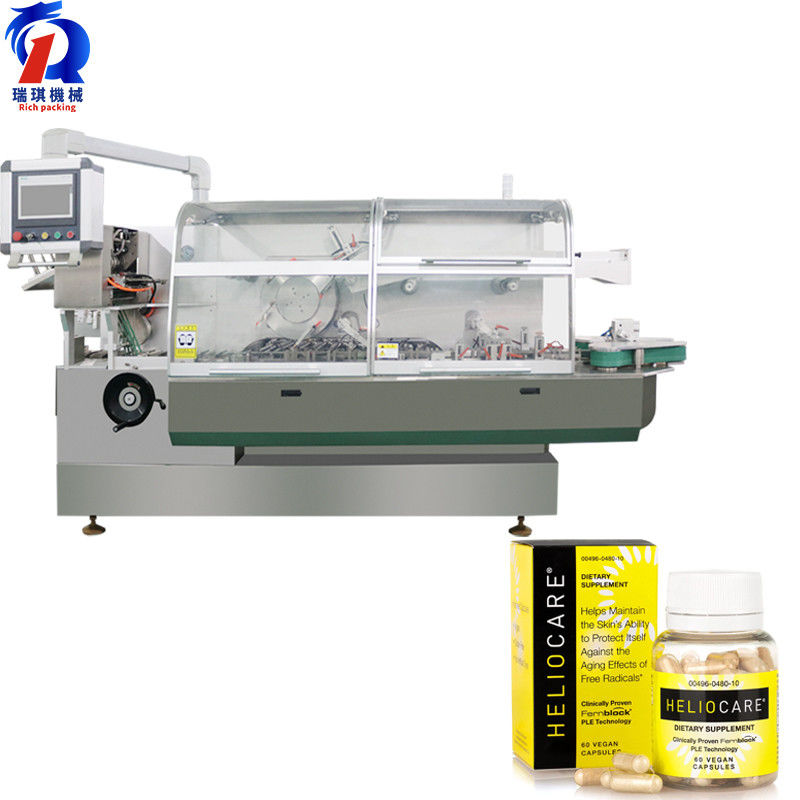

Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle

Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle

  • Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle
  • Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle
  • Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle
Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: RQ-ZHL-260W
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $97770-108633/pc
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: RQ-ZH-260W Automatic Horizontal Bottle Cartoning Machine Speed: 260 Carton/min
Total Power: 5 KW Material: Stainless Steel Bottle Cartoning Machine
Application: Pharmaceutical Blister Cartoning Machine Overall Size Of Machine: 6800*1600*1860mm
High Light:

Horizontal Box Cartoning Machine

,

5KW Box Cartoning Machine

,

Pharmaceutical Blister Cartoning Machine



Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle



auto carton machine Model RQ-ZH-26OW
auto carton machine Speed 260 carton/min
Total power 5.0 KW
Power supply 220/380V 50Hz
Requirements of carton size range of carton:L(70-180)*W(35-80)*H(12-50)mm
  carton weight:250-350g/㎡
Requirements of instructions size range of instructions:L(80-250)*W(90-170)mm
  range of folding times of instructions:1-4 fold
  instructions weight:60-70g/㎡
auto carton machine Pressure pressure intensity:≥0.6MPa
Overall size of the machine 6800*1600*1860㎜
Net weight of the machine about 3400kg



Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle 0

                                                       High Speed 260 Carton/min


Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle 1

                                                     Wide range of applications

Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle 2

         Intelligent detection, suitable for bottles, sachets, medicine boards





Horizontal Box Cartoning Machine Fully Automatic For Tube Bottle 3

                                             Large factory, fast delivery promise





    Rq-zh-260w ultra-high speed full active horizontal box packing caroning machine is a new generation of fast box packing cartoning machine developed by our company according to the market and customer demand. Rq-zh-260w high speed full active horizontal box loading cartoning machine combined with our company's advanced technology and international advanced technical research achievements.



   Rq-zh-260w is a high speed full active horizontal packing machine in line with GMP production requirements. Production requirements of RQ-ZH-260W Ultra-high speed full Active horizontal Box Loaders in Europe and Asia. This machine is suitable for pharmaceutical industry, chemical industry, food, health care products, medical equipment and other mass production. 260W horizontal packing machine can be used for drug packaging (tablet, capsule), aluminum-plastic plate, aluminum-plastic plate, pellet bag, ointment, soft bag, bottled medicine, cleansing cream, e-cigarette, facial mask, etc.



       Use machines instead of manual boxing. The cartoning machine needs to be maintained and maintained in order to improve the quality of machine operation and extend the service life of the machine. The following is the specific maintenance method:
Caring for the equipment through general methods such as wiping, the cleaning, lubrication, and adjustment to maintain and protect the performance and technical condition of the equipment is called the equipment maintenance. There are four main requirements for equipment maintenance:Clean the inside and outside of the cartoning machine clean and tidy. There is no oil on all sliding surfaces, lead screws, racks, gear boxes, oil holes, etc., no oil or air leakage at all parts, and chips, debris, and dirt around the new cartoning equipment should be cleaned up clean;Tidy tools, accessories, and workpieces (products) of the cartoning machine must be placed neatly, and pipelines and lines must be organized;Good lubrication Add oil or change oil on time, keep the cartoning machine oiling, and no dry friction.
Safety Observe the safety operation regulations of the cartoning machine, do not overload the cartoning machine, the safety protection device of the equipment is complete and reliable, and eliminate unsafe factors in time.
