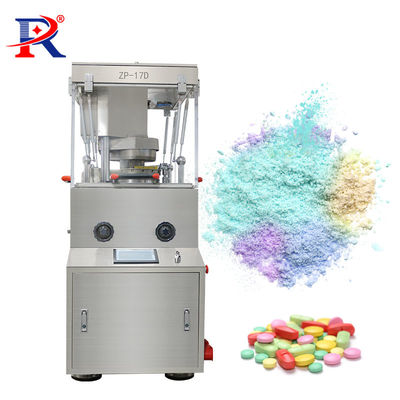

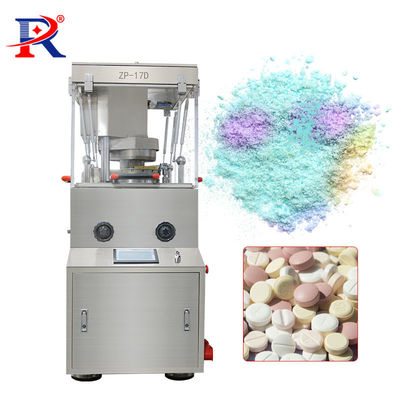

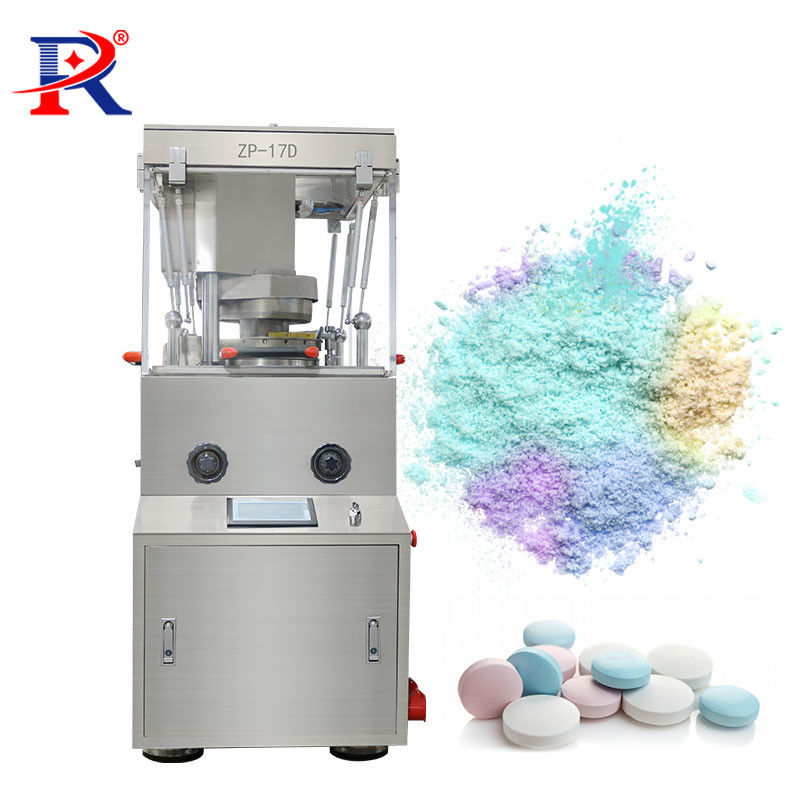

17D Pharmaceutical Tablet Making Machine 40mm Automatic Rotary Pill Press

17D Pharmaceutical Tablet Making Machine 40mm Automatic Rotary Pill Press

  • 17D Pharmaceutical Tablet Making Machine 40mm Automatic Rotary Pill Press
  • 17D Pharmaceutical Tablet Making Machine 40mm Automatic Rotary Pill Press
  • 17D Pharmaceutical Tablet Making Machine 40mm Automatic Rotary Pill Press
17D Pharmaceutical Tablet Making Machine 40mm Automatic Rotary Pill Press
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: ZP 17D
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Product Name: Fully Automatic Rotary Tablet Pill Press Machine Item Type: Tablet Pill Press Machine
Power: 3.0kw Max Pressure: 60 Kn
Rotary Speed: 30 R/min Warranty: 1 Year
High Light:

3.0kw Tablet Making Machine

,

30r/min Tablet Making Machine

,

Automatic Rotary Pill Press

17D Pharmaceutical Tablet Making Machine 40mm Automatic Rotary Pill Press



17D Pharmaceutical Tablet Making Machine is a fully automatic rotary tablet press. This machine cost effective machine can compress powder and granules into tablets. The maximum diameter of 17d Pharmaceutical Tablet Making Machine can be compressed to 40mm, and the maximum pressure can reach 100KN. Usually, pharmaceutical, chemical, electronic, food and other companies will choose this cost-effective tablet press and strictly follow GMP production requirements, which is trustworthy.



The power supply part of 17d Pharmaceutical Tablet Making Machine is located at the bottom of the machine to avoid contact with materials and reduce re-contamination.The 17d Pharmaceutical Tablet Making Machine digital display regulator has the characteristics of digitalization of filling depth and pressure regulator, which makes the regulator more accurate and more convenient for customers to operate.



17d Pharmaceutical Tablet Making Machine The structure is stable. For example, the bracket part is made of cast iron, which has better stability. 17d Pharmaceutical Tablet Making Machine has low noise. Its upper and lower guide rails are made of cast steel, the guide rails run radian, etc., have a large-angle linear structure, the mold runs without obstacles, and the noise is low.



Model zp17D zp19D
Number of die 17 19
maximumPressure(kn) 60 kn 60 kn
maximum Dia. of Tablet(mm) 20 mm 13 mm
maximum Depth of Filling(mm) 15 mm 15 mm
maximumThickness of Tablet(mm) 6 mm 6 mm
Rotary Speed(r/min) 30 /min 30 /min
maximum Production Capacity(pc/h) 30600 pc/h 34200 pc/h











tablet press machine



17D Pharmaceutical Tablet Making Machine 40mm Automatic Rotary Pill Press 1china tablet press machine
