| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS |
| Model Number: | DPP-260r |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Packaging Details: | Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation. |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Production Capacity: | 236,000 Grains/hour | Number Of Blanking: | 20～180 Boards/min |
|---|---|---|---|
| Maximum Forming Area: | 160×250*15mm | Maximum Depth: | 26mm (can Customized) |
| Standard Travel Range: | 40-160mm | Standard Plate: | 80*57mm |
| PVC Thickness/width: | 260×0.15-0.45mm | PTP Aluminum Foil Thickness/width: | 260×0.02-0.03mm |
| High Light: | Tablet Blister Packaging Machine,160mm Blister Packaging Machine |
||

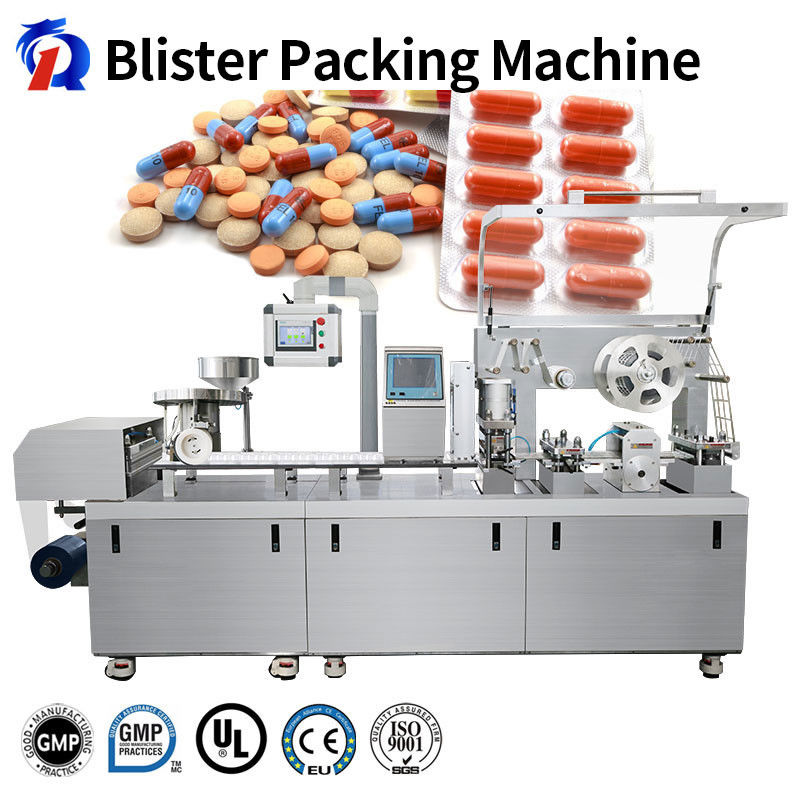

Dpp 260r Pill Tablet Blister Packaging Machine For Pharmacy Auto Servo Motor
The 260r blister packaging machine is the latest model and has many uses. We use imported well-known brands as the configuration of the machine:

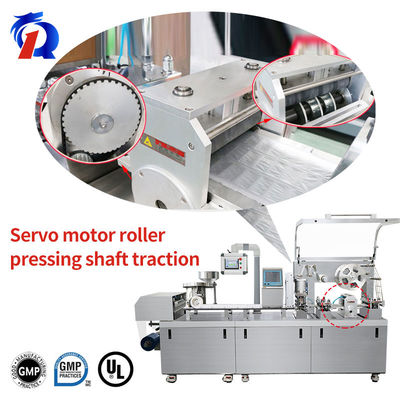

1. The servo motor is made by Taiwan Delta, which has the characteristics of high precision, no error in traction accuracy, and the machine runs at a fast speed. Even if the machine stops running, the packaging material will not retreat, and the customer operation is simpler and more convenient.
2. The PLC module uses Japan’s Omron, while the PLC touch screen uses Germany’s Siemens. The combination of these two brands facilitates customer data management. The machine data has been programmed, PLC is used as control, customer operation is simple and easy to understand, and the accuracy is higher.
3. Emergency stop button: Schneider, France. When the machine breaks down or has a problem, the emergency stop button can stop the machine immediately.
|
Model |
260R Blister Packaging Machine For Pharmacy |
|
The production capacity |
236000 p / h |
|
The maximum molding area |
160 × 250 * 15.1mm |
|
Blanking |
20～180 blisters/min (alu plastic) 20～120 blisters/min (alu alu) |
|
Maximum depth |
26mm (can customed) |
|
The main motor power |
1.5 KW |
|
The total power(kw) |
6.0 kw |
