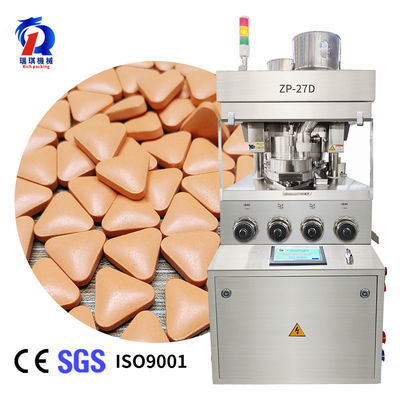

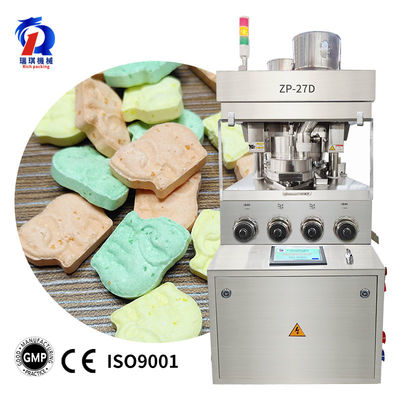

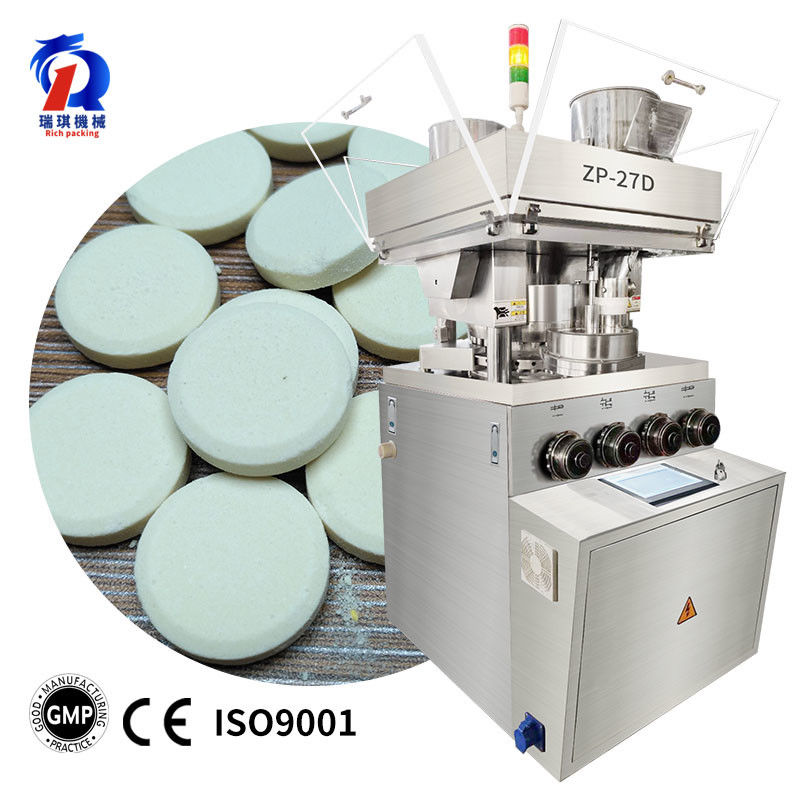

27D Pharma Fully Automatic 25mm Effervescent Tablet Press Machine

27D Pharma Fully Automatic 25mm Effervescent Tablet Press Machine

27D Pharma Fully Automatic 25mm Effervescent Tablet Press Machine
27D Pharma Fully Automatic 25mm Effervescent Tablet Press Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: ZP-27D
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the tablet press machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Zp 27D 25mm Diameter Auto Tablet Maker Machine Tablet Presser Maximum Output: 55000 Pcs/hour
Maximum Pressure: 120KN Maximum Tablet Diameter: 25mm
Max. Depth Of Filling: 35mm Max. Thickness Of Tablet: 17mm
Rotary Speed: 7~17 R/min Feature: Large 25mm Diameter
High Light:

25mm Tablet Press Machine


55000pcs/hour Tablet Press Machine

Number of punches 27
Maximum production capacity 55,000 pieces/hour
Maximum tablet pressure 120
Maximum tablet diameter 25
Maximum filling depth 35
Maximum tablet thickness 17



The 27D tablet press strictly follows the production requirements of GMP. It has a product structure and a modular design.
1.The transmission system of the 1.27D tablet press is independent and modular. It is placed under the main body of the tablet press, which can effectively avoid the contamination of drugs by trace impurities produced by the running friction of the tablet press.

2.The working surface of the 27D tablet press is designed with a large-angle platform for each part, which can reduce "ditch ridges" and exposed nuts, and make the tablet press smooth and smooth without dead corners.
3. The installation of the lower roller shaft and lower rail guide of the 3.27D tablet press adopts the casting subtraction structure, which is more convenient for customers to disassemble, repair and replace.
4.27D tablet press has a drain hole at the bottom of the lower pressing wheel, and the customer can flush it out with water.
5.27D tablet press mold, feeding hopper, tablet slot, scraper, etc. can be disassembled, and the disassembly is convenient and quick, and it is more convenient for cleaning and daily maintenance of customers.
6.27D tablet press has good sealing performance and organic glass can prevent cross-contamination.

7.The 27D tablet press has high pressure. The tablet press is equipped with a pre-compression track, which can compress materials that are difficult to form.
8.The 27D tablet press has a high equipment configuration. The core components are imported from Germany's Siemens, Japan's Omron, and the United States' Bezier company and other famous brand products, which have a long service life and greatly reduce the failure rate.
