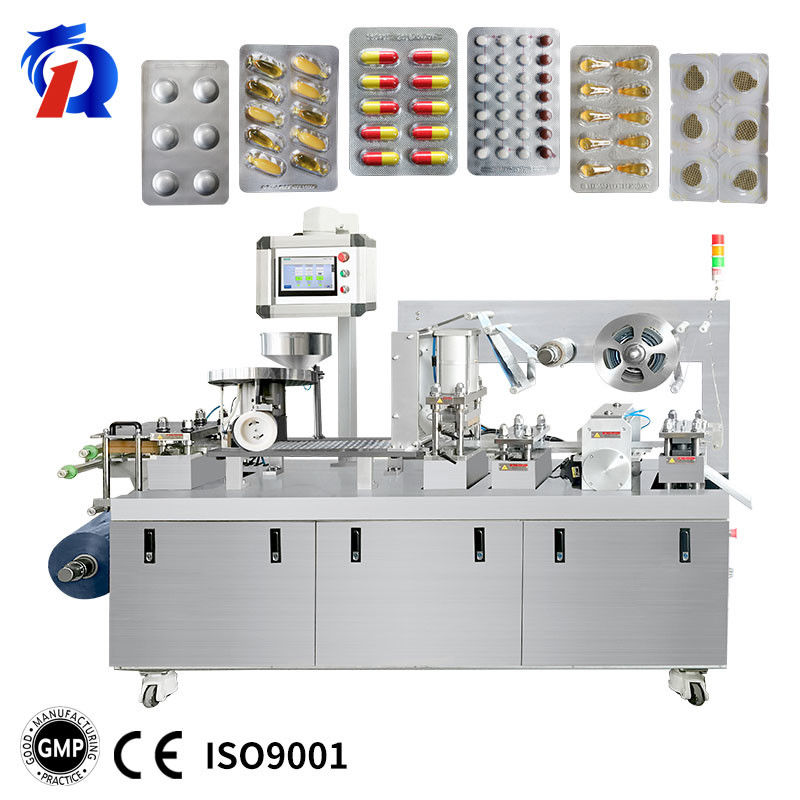

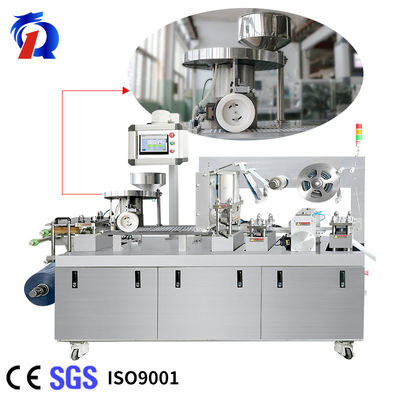

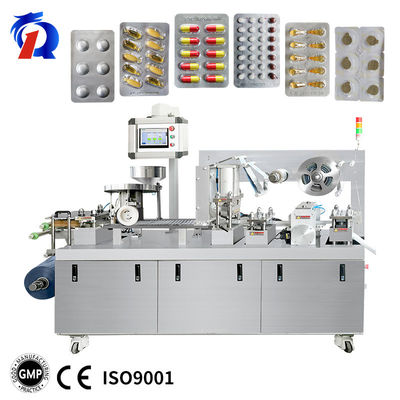

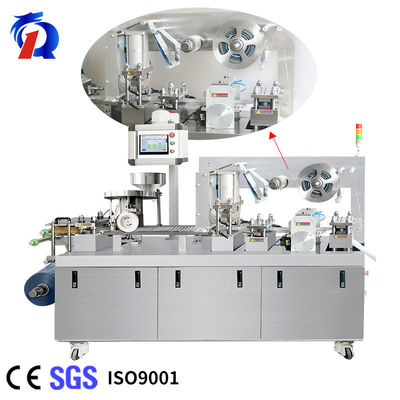

DPP-160r GMP Requirements Thermoforming Alu Pvc Blister Packaging Machine

DPP-160r GMP Requirements Thermoforming Alu Pvc Blister Packaging Machine

DPP-160r GMP Requirements Thermoforming Alu Pvc Blister Packaging Machine
DPP-160r GMP Requirements Thermoforming Alu Pvc Blister Packaging Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE/ISO 9001/SGS
Model Number: DPP-160r
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $14008-$14700 per pcs
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Production Capacity: 4200 Pellets Per Hour Max. Shaping Dia. And Depth: 130*100*15mm Max. Depth 26mm(custom-made)
Blanking: 20~50 Times/min Total Power: 3.78kW
Standard Plate: 80*57mm Standard Travel Range: 40~110mm
Noise: <75dBA Product: DPP-160 Plate Tablet Capsule Pill Automatic Blister Packing Machine
Voltage: 380V/220V 50Hz Warranty: 24 Months
High Light:

Pvc Blister Packaging Machine


Thermoforming Blister Packaging Machine

Model  DPP-160r
Punching times 20~50 times/min
Production capacity 36000-72000 grains/hour
Maximum forming area and depth 130*100*15mm
 Maximum depth up to 26mm (customized)

1. The three stations of forming, heat-sealing and punching are all fixed by cam box mandrel, unified horizontal positioning reference and adjustment scale, convenient for customers to adjust the alignment.
2. The three stations of forming, heat sealing and blanking are equipped with safety covers to protect the safety of operators.
3. The material of this machine has a wide range of applications, not only PVC, PS, but also PET and other materials can be used for production.
4. This machine is equipped with blanking dislocation, photoelectric detection and automatic shutdown function, this machine protects the mold and the product.
5. The PVC feeding of this machine is detected by photoelectricity and driven by a motor. The feeding amount is accurate, the traction pressure is reduced, and the overall running speed of this machine is faster.
6. The heat-sealing station of this machine adopts dual-cylinder and dual-axis linkage, and the pressure is large and balanced. The combination of PVC and aluminum foil of this machine is good, with clear lines and no wrinkles.
7. This machine adopts a new type of helical gear reducer motor, and the equipment runs stably.

8. The four-position cams of this machine, forming, heat-sealing, indentation, and punching, are made of cast steel integrally formed floor-standing box body seat, which will never be deformed, and the center of gravity of the machine's operation is stable, and each station is adjusted Lightweight and accurate.
9. 160 aluminum-plastic blister packaging machine This machine adopts a large platform design, and the power transmission and cam box are all built-in under the body, which is convenient for cleaning and maintenance of the machine after use.
10. The PVC and PTP fragments of this machine will stop and automatically alarm, which improves the efficiency of raw material utilization.

blister packing machine pricealu alu blister packing machineblister machine priceautomatic blister packing machinetablet blister packing machinepill blister pack machineblister packaging machine pricethermoforming blister packaging machine
