| Place of Origin: | Guangzhou, China |
| Brand Name: | RichPacking |
| Certification: | CE/ISO9001/SGS |
| Model Number: | NJP-1500D |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Packaging Details: | capsule filling machine is first wrapped with a transparent film, and then bound in a wooden box |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 39 pcs/month |
| After-sales Service: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support | Output Capacity: | 88800 Capsules/hour |
|---|---|---|---|
| Condition: | New Product | Type Of Model: | Auto Capsule Filling Machine |
| Working Voltage: | 220-380V 50Hz | Driven Type: | Electric Type |
| Power Supply W: | 10450 | Automatic Grade: | Fullly Automatic |
| Warranty: | 2 Year | Name Of Machine: | Rotary Capsule Filling Machine |
| High Light: | Rotary Capsule Filling Machine,Auto Capsule Filling Machine |
||

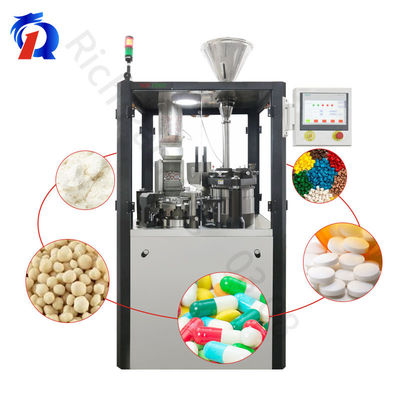

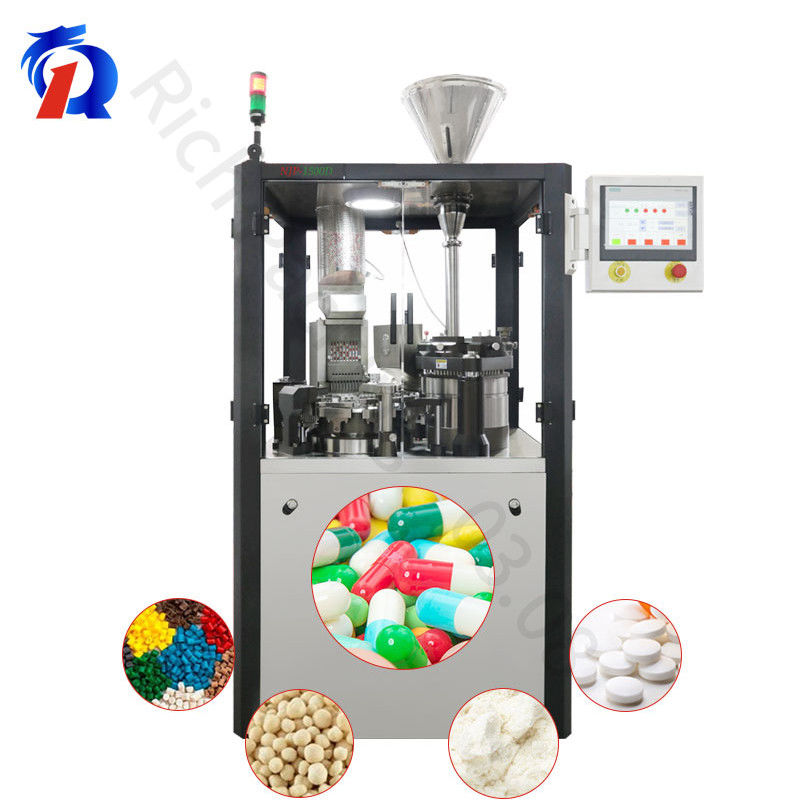

1500D capsule filling machine: The 1500D capsule filling machine of our Rich Packing company using the turntable type filling structure, according to the patent design. This 1500D model has ten working positions. When the 1500D model start running, its turntable rotate runs counterclockwise. The 1 and 2 working station are the capsule separate position, the 3 or 4 working station is the grainule feeding position, the 4 working station is the feeding powder position, the 6 working station is rejection function, the 7 and 8 working station are to lock the capsules, the 9 working station is finished product output working station, and the 10 working station is to clean rods before start working.

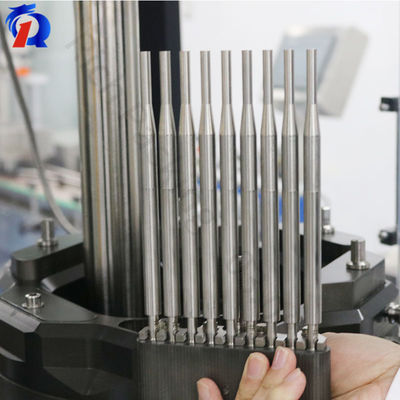

The powder filling working position: When the rotary and ten working positions operate, the complete working process of filling capsules is completed. The very important of the ten positions is the fourth working station, the powder filling working position. According to the feedback from our customers that it would take a very long time to replace the mold and the current situation of the filling capsule industry, we have improved the filling rod, so that the filling mold can be replaced in 15 min.
Rejection function: The function of the sixth working position is rejection. When in the process of filling the capsules, the capsules that separated uncorrectly, the capsule shell damaged, or the filling dose insufficient. When the turntable is turned to the rejection position, the high-pressure adsorption station will suck away the waste. The capsule shell and the material would be separated,to avoid the powder pollution, and the discarded shell is collected by the same time.
| Product of max capacity | 90000 pcs/h |
| weight of 1500d model | 1,200Kg |
| Overall size of machine | 900*870*1950mm |
| Power Vol. | 360/220V 50Hz |
| power of supply | 5480w |
| No.of segment hole | 9 |
| Vacuum pressure | 38.5m3/h-0.04-0.079Mpa |
