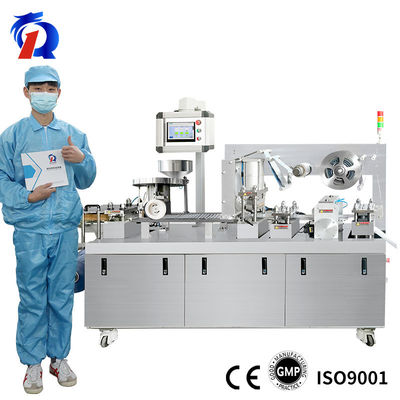

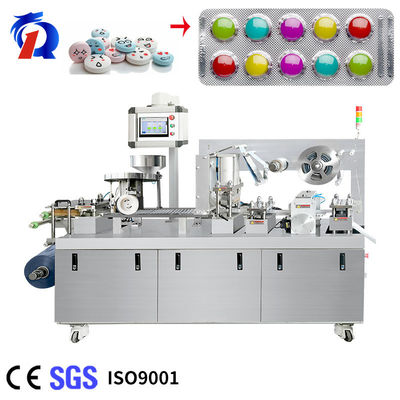

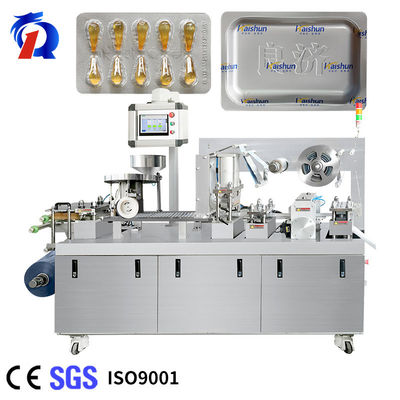

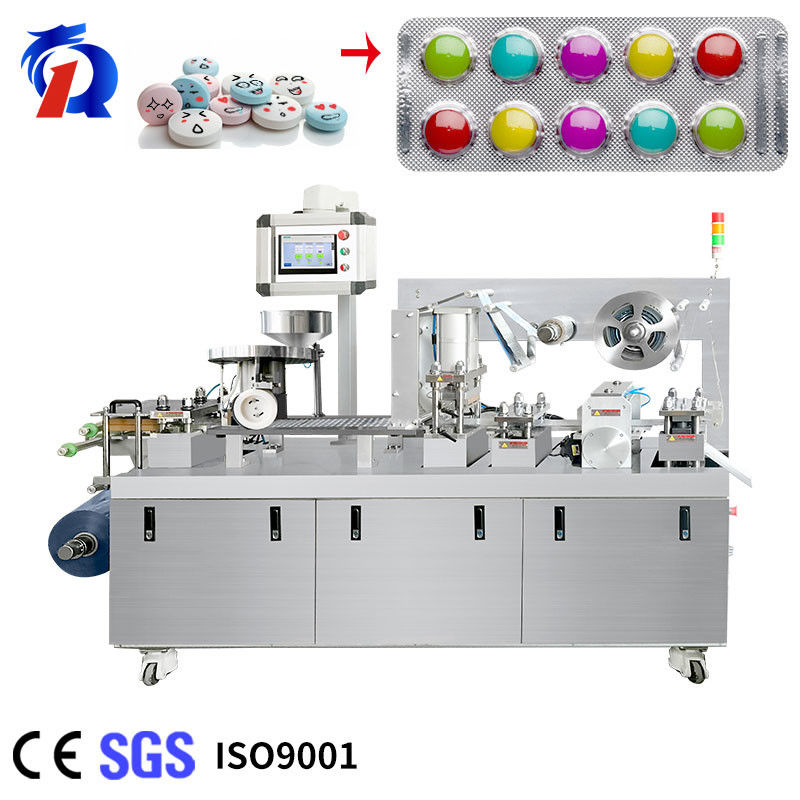

160r 20~50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing

160r 20~50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing

160r 20~50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing
160r 20~50 Times/Min Blister Machine Thermoforming For Pill Tablet Packing
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE/ISO 9001/SGS
Model Number: DPP-160r
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $14008-$14700 per pcs
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Production Capacity: 4200 Pellets Per Hour Max. Shaping Dia. And Depth: 130*100*15mm Max. Depth 26mm(custom-made)
Blanking: 20~50 Times/min Total Power: 3.78kW
Standard Plate: 80*57mm Standard Travel Range: 40~110mm
Noise: <75dBA Product: DPP-160 Plate Tablet Capsule Pill Automatic Blister Packing Machine
Voltage: 380V/220V 50Hz Warranty: 24 Months
High Light:

50 Times/Min Blister Packing Machine


3.78kW Blister Packing Machine


75dBA Tablet Packing Machine

Blanking times

20~50 Times / min

Air pressure

≥ 0.11 m3/min

PVC thickness / width

140 × 0.25 ~ 0.5mm

Thickness / width of PTP aluminum foil

140 × 0.02 ~ 0.03mm

Dialysis paper

50-100g * 150 mm

As a brand-new aluminum-plastic blister packaging machine developed by our company, dpp-160 is controlled by PLC, which can automatically package tablets, capsules, candy and other materials. At the same time, dpp-160 has a series of functions such as feeding and sealing.

In order to make the machine more stable, we use the column to fix the cams in each position of the machine. At the same time, we use the floor type box seat for the cams in the four positions of molding, heat sealing, indentation and blanking, which makes the center of gravity of the machine more stable and the adjustment more convenient. Under the action of the new helical gear motor, the operation of the machine is more stable.

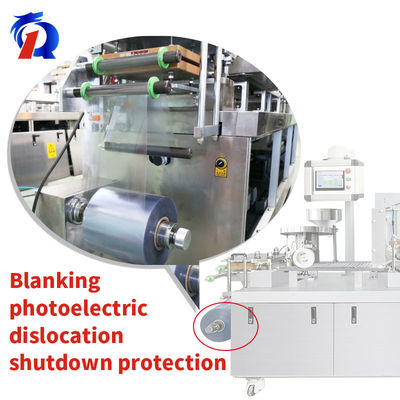

When PVC, PTP fault shutdown occurs, the machine will automatically alarm, which can reduce the consumption of raw materials and improve the utilization rate of materials. The machine adopts a large platform design and is equipped with a waste recovery device, which is convenient for cleaning and maintenance after use and keeps the workshop clean and tidy.


tablet blister packing machineflat plate blister packing machine

pvc ps pet wide range of materials

blister packing machineautomatic pill blister packing machinepills blister packing machineblister packing machine for syringesautomated blister packing machine


pill blister packing machine  mini blister packing machine tablet blister packing machine price
