Place of Origin: | Guangzhou, China |
Brand Name: | Rich Packing |
Certification: | CE ISO SGS |
Model Number: | RQ-ZHL-120W |
Minimum Order Quantity: | 1 PC |
---|---|
Packaging Details: | Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation. |
Delivery Time: | 5-10 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 45pcs/month |
Name: | Automatic Coffee Stick Pack Cartoning Machine | Speed: | 34-119 Carton/min |
---|---|---|---|
Total Power: | 748w | Size Range Of Carton: | L(70-185)*W(35-90)*H(14-50)mm |
Range Of Folding Times Of Instructions: | 1to4 Folds | Power Supply: | 200/380V 50Hz |
Carton Weight: | 251-350g/㎡ | Size Range Of Instructions: | L(78-250)*W(90-170)mm |
Instructions Weight: | 62-70g/㎡ | Pressure Intensity: | ≥0.601MPa |
Air Consumption: | 115-160 L/min | Overall Size Of Machine: | 3110*1100*1550㎜ |
Net Weight Of Machine: | 1610kg | ||
Highlight: | Heat Glue Automatic Cartoning Machine,748w Automatic Cartoning Machine |

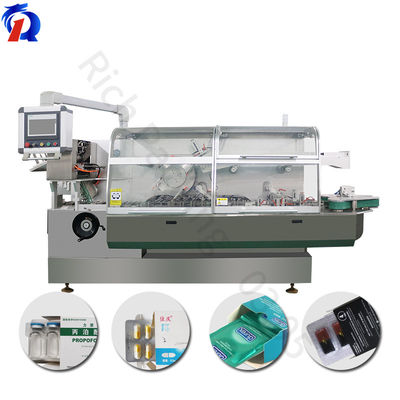

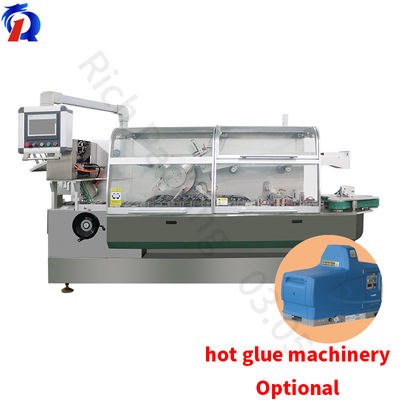

For Pharmacy High Capacity With Heat Glue Automatic Cartoning Machine
28 years experience: WE, rich packing group establishment group, has estabilshed in 1992, been start producing product in automatic pharmacy packing machinery industry for over 28 plus years.WE,rich packing has working for more than 10 thousand many customers all over worlds, ours innovation ability always leading the field trend.

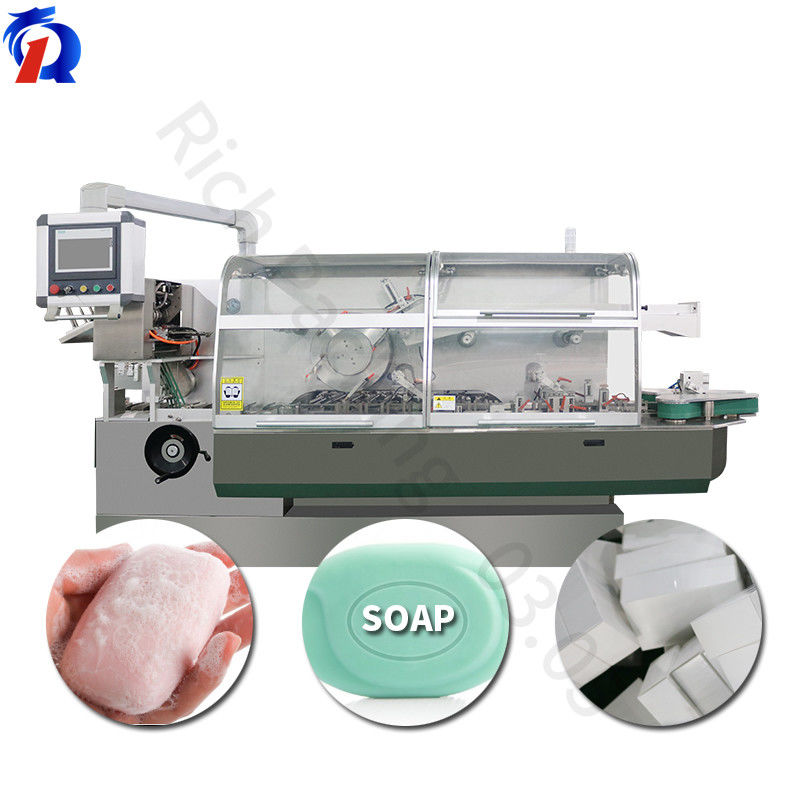

Professtion pharmacy machinery: The 120 W heat glue automatic cartoning machine horizontal type, is one of the professtion pharmacy machinery made from RQ's.Ours 120 heat glue automatic cartoning machine W-type model, the fuction is to paper box pack things in, like as plates for capsule soft/hard shell, small or big sachet bags, small or big tea bag, daily necessities for youngth, pharmacy material, soap, sexy condoms, glass bottle of drinking, mask and so on.This heat glue automatic cartoning machine has a very wide usefu applications. For your demands, you can interlinkage the 120W to the tablet pill coating machine, blister packer machine, auto counter tablet machine, electric sealer, for pharmacy production.
Forward type pushing of feeding: This Horizontal heat glue automatic cartoning machine can fitable for require of products, at the same time suit to size bag or the things box packing.These Horizontal heat glue automatic cartoning machine use process system solutions. All the progress of working are controlled by the smart CPU chip of the PLC human-machine system,.Adopted the forward type pushing of feeding device design,This Horizontal heat glue automatic cartoning machine can easy to operate. So when 120W working in the production process, the worker can controll it easily. Even if there is a problem, the staff can easily solve it.
Model type | RQ-ZH-12OW |
Speed of its capacity | 25-128 cartons/min |
Total power w | 749 |
power supply V/Hz | 205/380V 50Hz |
Requirements to cartons | size range from :L(70.0-185)*W(35.0-90)*H(14-50.0)mm |
weight from:245-345g/㎡ | |
Requirements of instructions mm | range of instructions from:L(75-250)*W(91-170)mm |
range of foldings :1-4 folds | |
instructions weight from :58-72g/㎡ | |
data of Pressure | pressure data intensity:≥0.610MPa |
air consumption:121-160 L/min | |
Overall size of this machine | 4,300*1,100*1,555㎜ |
Net weight of this machine | about 1,579kg |
model | 120L | 120W | 260W | 450W |
capacity /min | 35-125 | 35-125 | 260 | 450 |
paper requirement | L:70-185mm, W:35-90mm, H:14-50mm 250-360g/㎡ |
