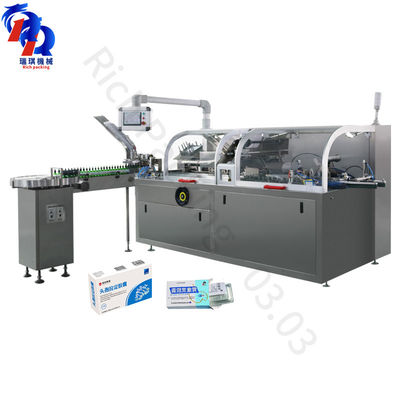

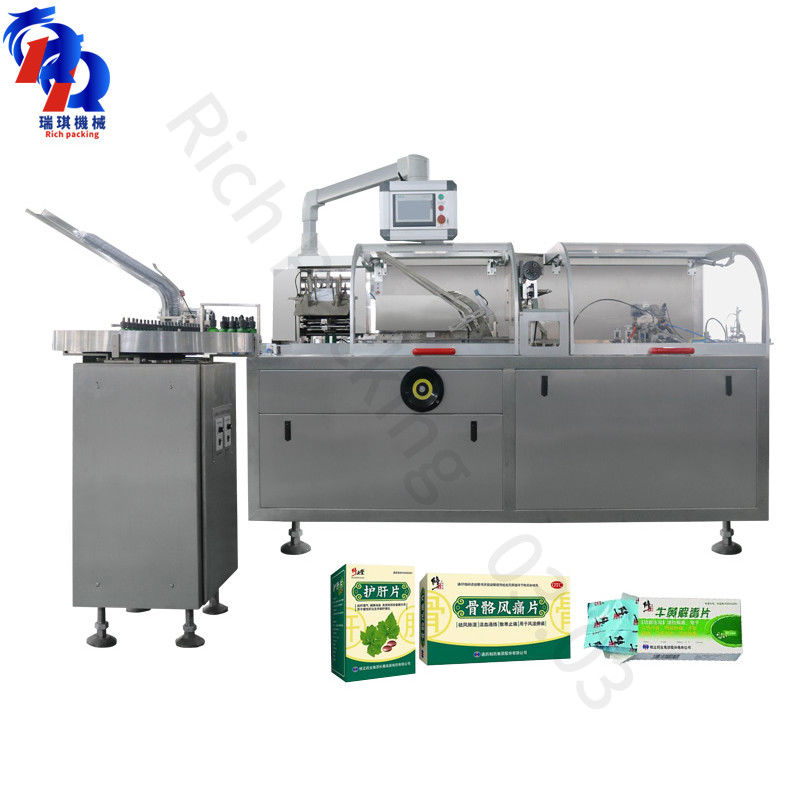

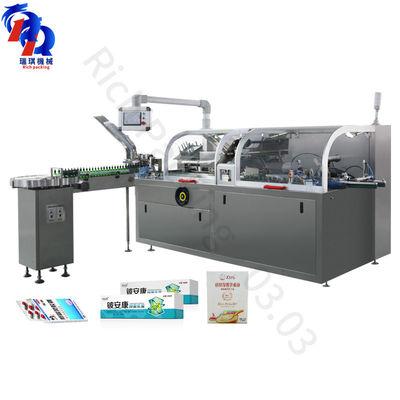

High Speed Production Full Automated Paper Box Packing Cartoning Machinery

High Speed Production Full Automated Paper Box Packing Cartoning Machinery

  • High Speed Production Full Automated Paper Box Packing Cartoning Machinery
  • High Speed Production Full Automated Paper Box Packing Cartoning Machinery
  • High Speed Production Full Automated Paper Box Packing Cartoning Machinery
High Speed Production Full Automated Paper Box Packing Cartoning Machinery
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: RQ-ZHL-120W
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 45pcs/month
Contact Now
Detailed Product Description
Name: RQ-ZHL-120W Free Spare Parts Automatic Coffee Stick Pack Cartoning Machine Speed: 34-117 Carton/min
Total Power: 760w Size Range Of Carton: L(70-185)*W(35-90)*H(14-50)mm
Range Of Folding Times Of Instructions: 1 To 4 Folds Power Supply: 200/380V 50Hz
Carton Weight: 245-350g/㎡ Size Range Of Instructions: L(78-250)*W(90-170)mm
Instructions Weight: 62-70g/㎡ Pressure Intensity: ≥0.581MPa
Air Consumption: 115-160 L/min Overall Size Of Machine: 3080*1100*1550㎜
Net Weight Of Machine: 1590kg
High Light:

760w Box Packaging Cartoning Machinery

,

160L/min Box Packaging Cartoning Machine

High Speed Production Full Automated Paper Box Packing Cartoning Machinery





Professtional: Richpacking company was operated in the pharmaceutical packing machinery for over 27 years, and has linking to customers all over worlds.These 120W type cartoning machine, is one of the variety of products developed by us.ZH-RQ-120W can easily cartoning hard shell capsule,soap, hard bottles, aluminum plastic plate, adult condoms, soft sachet, tea sachet, e-vape pen, masks for PPE and so on.



Widly application scenariosThese horizontal 120W cartoning machine have the widly application scenarios. To meet your actual needs, you can link 120W box packing machine with blister packaging machine, tablet counter, alu-sealer machine, and tablet pill coating machine for medicine materials.This Horizontal 120W cartoning machine could meet these requirements of the product, but also suit to big size bag and hard type bottle box packing.



One-stop process solution system:The RQ-120W cartoning machine using one-stop process solution system. The all procedures of production are controlling from PLC, include pack, inspecting, instruction, insertion, hot glue sealing, box sealing, print .This machine adopts the forward pushing type feeding design in the working process, you can control the whole production processikng, if problem happened, it's very convenient and timely to solve.



Model's type RQ-ZH-12OW cartoning machine
Speed of 120W capacity 25-128 cartons/min
Total power w 729
supply V/Hz of power  208/380V 50Hz
Requirements to cartons running size range data :L(70.0-185)*W(35.0-90)*H(14-50.0)mm
  weight data:245-345g/㎡
Requirements of instructions mm range of instructions data:L(75-250)*W(91-170)mm
  range of foldings data:1-4 folds
  instructions weight data :58-72g/㎡
data of Pressure pressure of intensity:≥0.6090MPa
  air consumption:121-160 L/min
size of this machine 4,300*1,100*1,555㎜
Net weight of 120W machine about 1,69kg



model 120L 120W 260W 450W
capacity /min MAX 129 129 261 448
paper requirement L:70-185mm, W:35-90mm, H:14-50mm 250-360g/㎡



High Speed Production Full Automated Paper Box Packing Cartoning Machinery 0

High Speed Production Full Automated Paper Box Packing Cartoning Machinery 1

High Speed Production Full Automated Paper Box Packing Cartoning Machinery 2

High Speed Production Full Automated Paper Box Packing Cartoning Machinery 3
