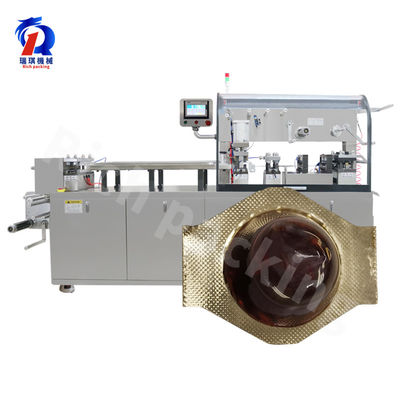

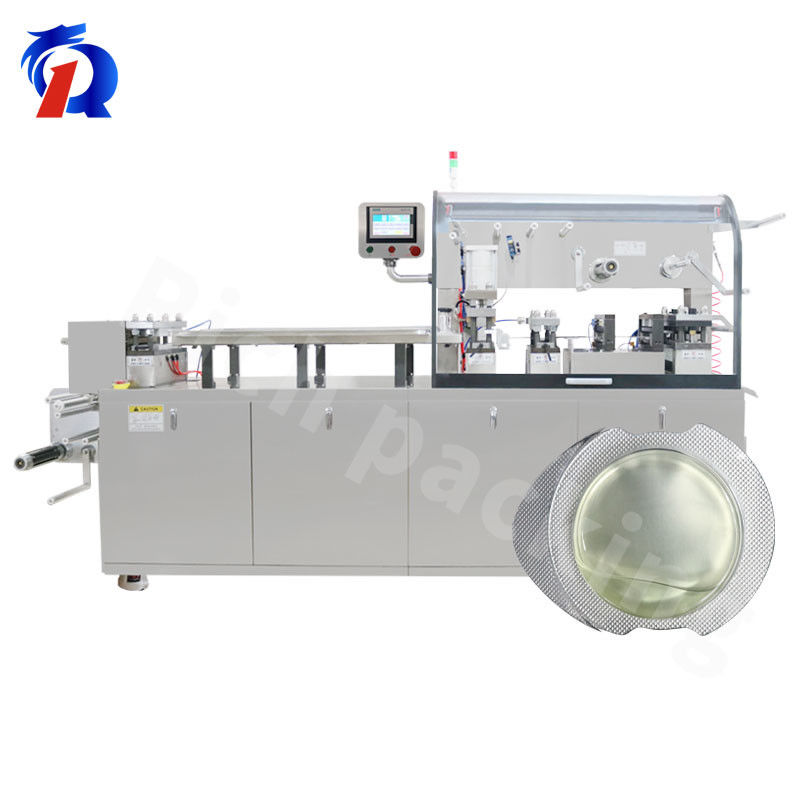

260S Full Servo Motor Alu Pvc Liquid Blister Packaging Machine With Chiller

260S Full Servo Motor Alu Pvc Liquid Blister Packaging Machine With Chiller

  • 260S Full Servo Motor Alu Pvc Liquid Blister Packaging Machine With Chiller
  • 260S Full Servo Motor Alu Pvc Liquid Blister Packaging Machine With Chiller
260S Full Servo Motor Alu Pvc Liquid Blister Packaging Machine With Chiller
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE/ISO 9001/SGS
Model Number: DPP-260s
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $18710-$19037 per pcs
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Production Capacity: 2400-9600 Pellets Per Hour Max. Shaping Dia. And Depth: 250*140*15mm Max. Depth 26mm(custom-made)
Blanking: 10-45 Times/min Total Power: 8.2kW
Standard Plate: 80*57mm Standard Travel Range: 40~185mm
Noise: <75dBA Product: 260S Full Servo Motor Alu Pvc Liquid Blister Packaging Machine With Chiller
Voltage: 380V/220V 50Hz Warranty: 24 Months
High Light:

8.2kW Blister Packaging Machine

,

45 times/min Blister Packaging Machine



260S Full Servo Motor alu pvc liquid Blister Packaging Machine With Chiller is a high speed flat aluminum plastic blister packing machine from Guangdong Rich Packing Machinery Co.,Ltd. It is driven by full servo motor, with better accuracy, stable operation and convenient adjustment.DPP-260S expect can packaging tablets,capsules,candy,also can packaging many big sizes products,such as e-cigarettes,perfume,honey,butter, Syringe ,penicillin bottles and etc.

blister packing Capacity 2400-9600 pellets per hour
Max. Shaping Dia. And Depth 250*140*15mm Max. Depth 26mm(custom-made)
blister packing machine Blanking 10~45 times/min
Power of Main Motor 2.2kW
machine Total Power 8.5kW
machine Power supply 380V/220V/50Hz
Standard Travel Range 40~185mm
Standard Plate 80*57mm
Thickness and Width of PVC 0.15~0.5*120mm
Thickness and Width of PTP 0.02~0.035*120mm
Dialyzing Paper 50~100g*120mm
gas consumption ≥0.3m3/min
blister packing machine Noise <75dBA
blister packing machine Mold Cooling Runing water or circulating water
blister packing machine Weight Net weight1300kg ;Gross weight1400kg
Overall Size of Machine 3000*730*1600 mm(L*W*H)
blister packing machine Packing Size 3400*950*1800mm(L*W*H)



260S Full Servo Motor alu pvc liquid Blister Packaging Machine With Chiller finished prodcts:

260S Full Servo Motor Alu Pvc Liquid Blister Packaging Machine With Chiller 0

260S Full Servo Motor alu pvc liquid Blister Packaging Machine With Chiller features:

260S Full Servo Motor Alu Pvc Liquid Blister Packaging Machine With Chiller 1

260S Full Servo Motor Alu Pvc Liquid Blister Packaging Machine With Chiller 2

260S Full Servo Motor alu pvc liquid Blister Packaging Machine With Chiller package:

260S Full Servo Motor Alu Pvc Liquid Blister Packaging Machine With Chiller 3



260S Full Servo Motor alu pvc liquid Blister Packaging Machine With Chiller
