Zp 29D 25mm Diameter 100KN Double Rotary Tablet Press Machine

Zp 29D 25mm Diameter 100KN Double Rotary Tablet Press Machine

  • Zp 29D 25mm Diameter 100KN Double Rotary Tablet Press Machine
  • Zp 29D 25mm Diameter 100KN Double Rotary Tablet Press Machine
Zp 29D 25mm Diameter 100KN Double Rotary Tablet Press Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: ZP-29D
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $17994-$18344 per set
Packaging Details: Standard export wood case the machine is first wrapped with a transparent film, and then bound in a wooden box to ensure the safety of the machine during transportation.
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Machine Name: Zp 29D 25mm Diameter 100KN Double Rotary Tablet Press Machine Dies No.: 29 Set
Max. Production Capacity: 75000 Pcs/h Max. Pressure: 100KN
Max. Dia. Of Tablet: 25mm Max. Depth Of Filling: 24mm
Max. Thickness Of Tablet: 12mm Dia. Of Middle Die: Ф38.1mm
Length Of Upper/Lower Punching Bar: 115mm/133.4mm Dia.of Upper/Lower Punching Bar: Ф25.4mm
Rotary Speed: 5~21 R/min
High Light:

100KN Tablet Press Machine

,

25mm Tablet Press Machine

Zp 29D 25mm Diameter 100KN double Rotary tablet press machine

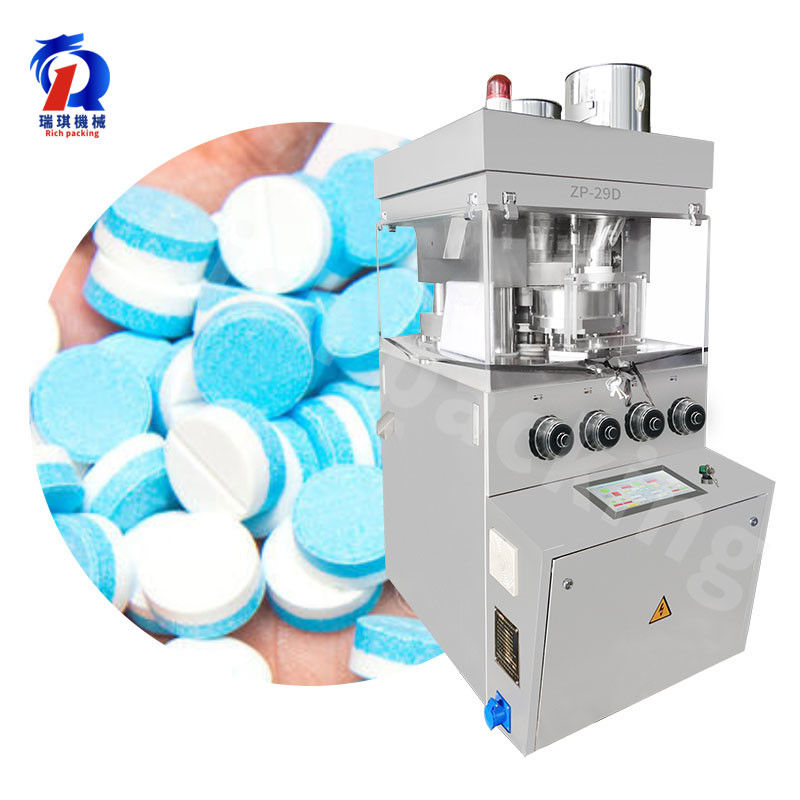

Zp 29D 25mm Diameter 100KN double Rotary tablet press machine can press powder and particle into different shapes of tablets(double corlor tablets is ok) .Max. Dia. of Tablet can get 25mm,Max. Thickness of Tablet is 12mm.Max. Production Capacity is 75000pcs/h.

Richpacking Machinery survise:2 year warranty and 1 year free spare parts,repair service,Video technical support,Online support.

welcome to our alibaba web:https://richpacking.en.alibaba.com/



Max. Production Capacity 75000 pcs/h
Max. Pressure 100KN
Max. Dia. of Tablet 25mm
Max. Depth of Filling 24mm
Max. Thickness of Tablet 12mm
Dia. Of Middle Die Ф38.1mm
Length of Upper/Lower Punching Bar 115mm/133.4mm
Dia.of Upper/Lower Punching Bar Ф25.4mm
Rotary Speed 5~21 r/min
tablet press machine Motor 5.5kw
Weight of Machine 1600kg

automatic tablet pressing machine

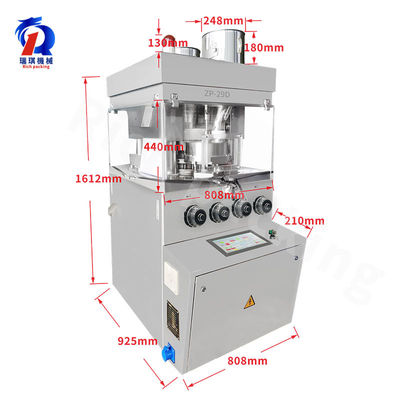

Zp 29D 25mm Diameter 100KN double Rotary tablet press machine details:

tablet pressing machine

Zp 29D 25mm Diameter 100KN Double Rotary Tablet Press Machine 2

Zp 29D 25mm Diameter 100KN double Rotary tablet press machine operating produres:







Zp 29D 25mm Diameter 100KN Double Rotary Tablet Press Machine 3

Zp 29D 25mm Diameter 100KN Double Rotary Tablet Press Machine 4

Zp 29D 25mm Diameter 100KN Double Rotary Tablet Press Machine 5

Zp 29D 25mm Diameter 100KN double Rotary tablet press machine
