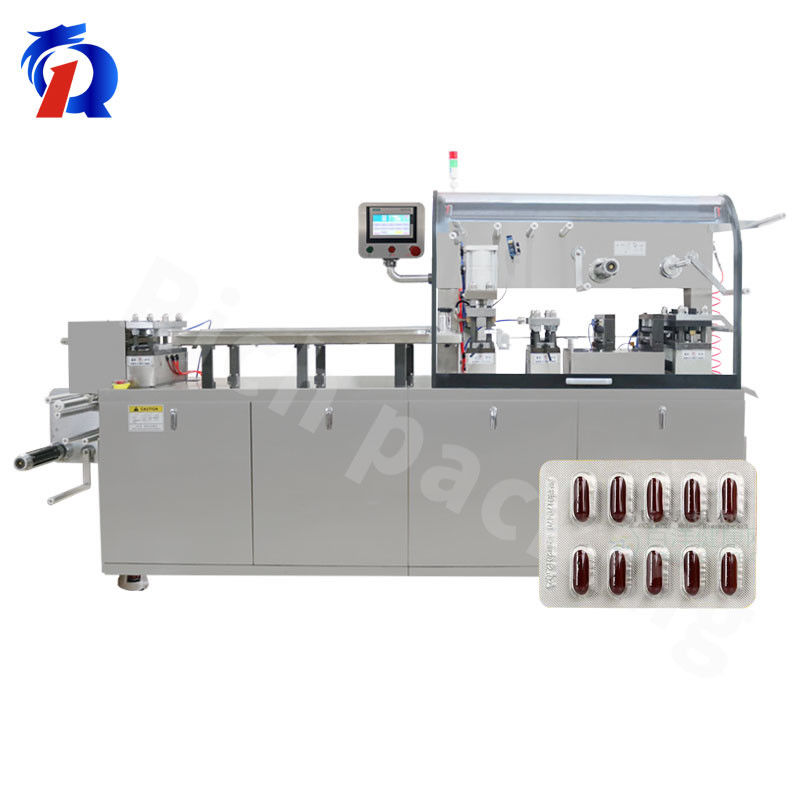

Dpp260s Servo Motor Small Blister Packaging Machine , Small Blister Pack Machine

Dpp260s Servo Motor Small Blister Packaging Machine , Small Blister Pack Machine

  • Dpp260s Servo Motor Small Blister Packaging Machine , Small Blister Pack Machine
  • Dpp260s Servo Motor Small Blister Packaging Machine , Small Blister Pack Machine
Dpp260s Servo Motor Small Blister Packaging Machine , Small Blister Pack Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE/ISO 9001/SGS
Model Number: DPP-260s
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $18710-$19037 per pcs
Packaging Details: Standard export wooden case
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Production Capacity: 2400-9600 Pellets Per Hour Max. Shaping Dia. And Depth: 250*140*15mm Max. Depth 26mm(custom-made)
Blanking: 10-45 Times/min Power Of Main Motor: 2.2kW
Total Power: 8.2kW Standard Plate: 80*57mm
Standard Travel Range: 40~185mm Noise: <75dBA
Vacuum: 0.4MPa-0.6MPa Weight: Net Weight1300kg ;Gross Weight1400kg
Product: Dpp260s Servo Motor Small Blister Packaging Machine,small Blister Pack Machine
High Light:

Pharmaceutical Blister Pack Machine

,

Pills Blister Packaging Machine

Dpp260s Servo Motor Small Blister Packaging Machine , Small Blister Pack Machine



Dpp260s servo motor blister packaging machine is a new high speed flat-panel aluminum plastic blister pack machine by Guangdong Rich Packing Machinery Co.,Ltd. It is driven by servo motor, with better accuracy, stable operation and convenient adjustment.DPP-260S expect can packaging pharmaceutical products like tablets capsules,soft capsules also can packaging many big sizes products,such as candy, electronic cigarettes,perfume,tomato paste,big honey pills,penicillin bottles and etc.

blister packaging machine Model DPP-260S
Production Capacity 2400-9600 pellets per hour
Max. Shaping Dia. And Depth 250*140*15mm Max. Depth 26mm(custom-made)
blister pack machine Blanking 10~45 times/min
Power of Main Motor 2.2kW
blister packing Total Power 8.5kW
blister machine Power supply 380V/220V/50Hz
Standard Travel Range 40~185mm
blister machine Standard Plate 80*57mm
Thickness and Width of PVC 0.15~0.5*120mm
Thickness and Width of PTP 0.02~0.035*120mm
Dialyzing Paper 50~100g*120mm
blister packing machine Vacuum 0.4MPa-0.6MPa
gas consumption ≥0.3m3/min
blister pack machine Noise <75dBA
blister pack machine Mold Cooling Runing water or circulating water
blister pack machine Weight Net weight1300kg ;Gross weight1400kg
Overall Size of Machine 3000*730*1600 mm(L*W*H)
blister pack machine Packing Size 3400*950*1800mm(L*W*H)



Dpp260 servo motor small alu plastic blister packaging machine,small blister pack machine

Dpp260s Servo Motor Small Blister Packaging Machine , Small Blister Pack Machine 0





Dpp 260 servo motor high speed small alu plastic blister packaging machine,small blister pack machine
