Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine

Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine

  • Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine
  • Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine
Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE/ISO 9001/SGS
Model Number: DPP-160L
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $11655-$11881 per pcs
Packaging Details: Standard export wooden case
Delivery Time: 5-8 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Blister Pack Machine Product: Dpp 160 Liquid Blister Pack Packaging Machine,Liquid Filling And Sealing Packing Machine Blister Pack Machine Blanking: 10~35 Times/min
Production Capacity: 1200-4200 Plates/h Max. Shaping Dia. And Depth: 145*110*15mm Max. Depth 26mm(custom-made)
Standard Travel Range: 50~120mm Standard Plate: 80*57mm
Power OfMain Motor: 1.5kW Blister Packing Machine Power: 380V/220V/50Hz
Blister Package Machine Noise: <75dBA Thickness And Width Of PVC: 0.15~0.5*150mm
Thickness And Width Of PTP: 0.02~0.035*150mm
High Light:

160L Blister Packaging Machine

,

0.6MPa Sealing Packing Machine

dpp 160L liquid pack blister packaging machine,Liquid Filling And Sealing packing Machine



DPP-160L is a high-speed flat-panel aluminum-plastic liquid blister packaging machine from Guangdong Rich Packing Machinery Co.,Ltd. It can pack liquid such as yoghurt,oil,jam,butter,honey,cheese,sauce,cream or perfume ect.with possessing fully automatic shaping,adding,sealing and blanking.

Blanking 10~35 times/min
Production Capacity 1200-4200 plates/h
Max. Shaping Dia. And Depth 145*110*15mm Max. Depth 26mm(custom-made)
Standard Travel Range 50~120mm
Standard Plate 80*57mm
Power ofMain Motor 1.5kW
Total Power 3.8kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*150mm
Thickness and Width of PTP 0.02~0.035*150mm
Dialyzing Paper 50~100g*150mm
Mold Cooling Runing water or circulating water
Weight Net weight 850 kg ;Gross weight1400 kg

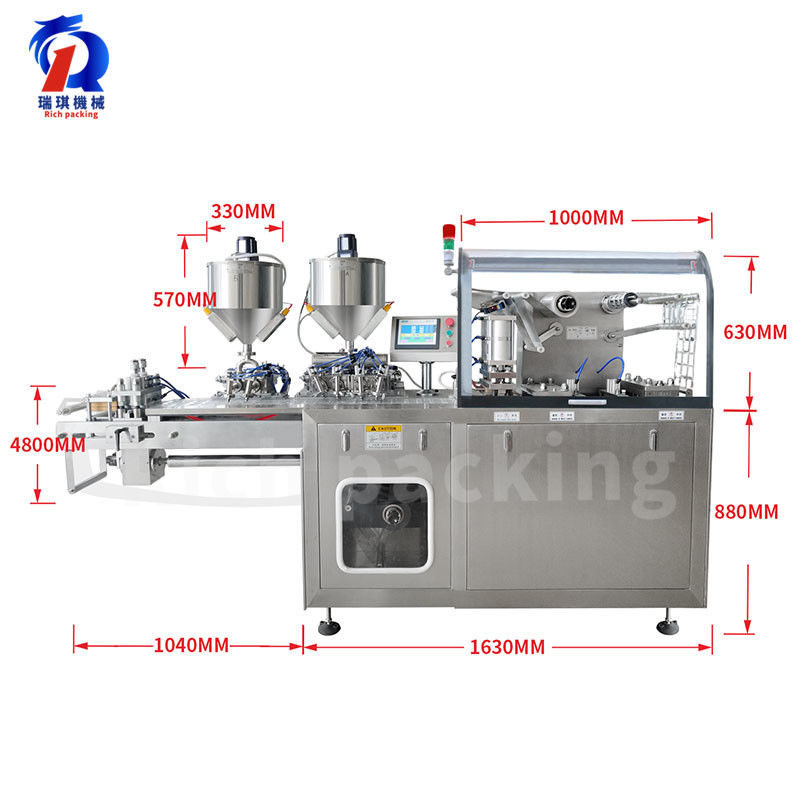

Overall Size of Machine 2300*635*1500 mm
Packing Size 2750*950*1800mm



1.liquid feeding device

easy to feed liquid state product Smoothly

Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 0

Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 1



2. Brake motor

Motor with braking function,accurate operation journey, during the debugging process, the mold runs to the highest point, will not turn, easy to adjust.

Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 2



3. Chain drive position

Strand chain transmission, low noise.lower than 75dBA.

Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 3



4. Proximity switch

Molding, traction, positioning module using proximity switch control instead of pneumatic control, higher accuracy, longer service life.

Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 4



5.Heating and anti scalding station:prevent scalding during operation.

Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 5



6.Heat sealing device

accurate operation and easy operation

Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 6



7.Cursor version



Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 7Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 8Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 9





Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 10

Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 11





Dpp 160L Liquid Pack Blister Packaging Machine , Liquid Filling And Sealing Packing Machine 12
