380V Automatic Tablet Capsule Pill Blister Packing Machine High Speed

380V Automatic Tablet Capsule Pill Blister Packing Machine High Speed

  • 380V Automatic Tablet Capsule Pill Blister Packing Machine High Speed
  • 380V Automatic Tablet Capsule Pill Blister Packing Machine High Speed
380V Automatic Tablet Capsule Pill Blister Packing Machine High Speed
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE/ISO 9001/SGS
Model Number: DPP-260S
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, D/P, T/T
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Production Capacity: 230000 Pellets Per Hour Max. Shaping Dia. And Depth: 240*170*15mm Max. Depth 26mm(custom-made
Blanking: 45 Times/min Power Of Main Motor: 1.5kW
Total Power: 6.2kW
High Light:

pill blister pack machine

,

tablet blister packing machine

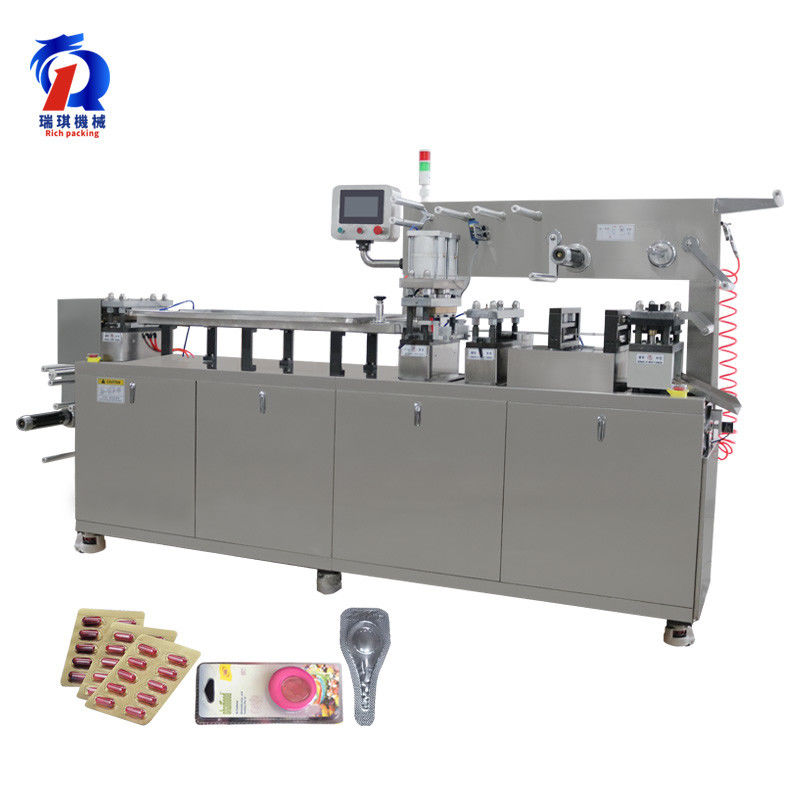

380V Automatic Tablet Capsule Pill Blister Packing Machine High Speed 0

DPP-260S is a high-speed flat-panel aluminum-plastic blister packaging machine newly developed by Guangdong Rich Packing Machinery Co.,Ltd. It is driven by servo motor, with better accuracy, stable operation and convenient adjustment.DPP-260S expect can packaging tablets,capsules,candy,also can packaging many big sizes products,such as electronic cigarettes,perfume,tomato paste,soft capsules,big honey pills,penicillin bottles and etc.

Power supply 380V/220V/50Hz
Standard Travel Range 40185mm
Standard Plate 80*57mm
Thickness and Width of PVC 0.15~0.5*120mm
Thickness and Width of PTP 0.02~0.035*120mm
Dialyzing Paper 50~100g*120mm
Vacuum 0.4MPa-0.6MPa
gas consumption 0.3m3/min
Noise <75dBA
Mold Cooling Runing water or circulating water
Weight Net weight1300kg ;Gross weight1400kg
Overall Size of Machine 3000*730*1600 mm(L*W*H)
Packing Size 2750*950*1800mm(L*W*H)



1.Cylinder Drive Heat Sealing Device

Adjustable temperature, Accurate Travel;Tight Sealing, No Wrinkles

380V Automatic Tablet Capsule Pill Blister Packing Machine High Speed 1



2.Handwheel With Scales

Each Station Can Move Freely On The Spindle Through The Free Adjustment Of Handwheel



380V Automatic Tablet Capsule Pill Blister Packing Machine High Speed 2



3.Locating Slot Pins Mould

One-key Positioning, And The Debugging Time Was Reduced 50%

380V Automatic Tablet Capsule Pill Blister Packing Machine High Speed 3
