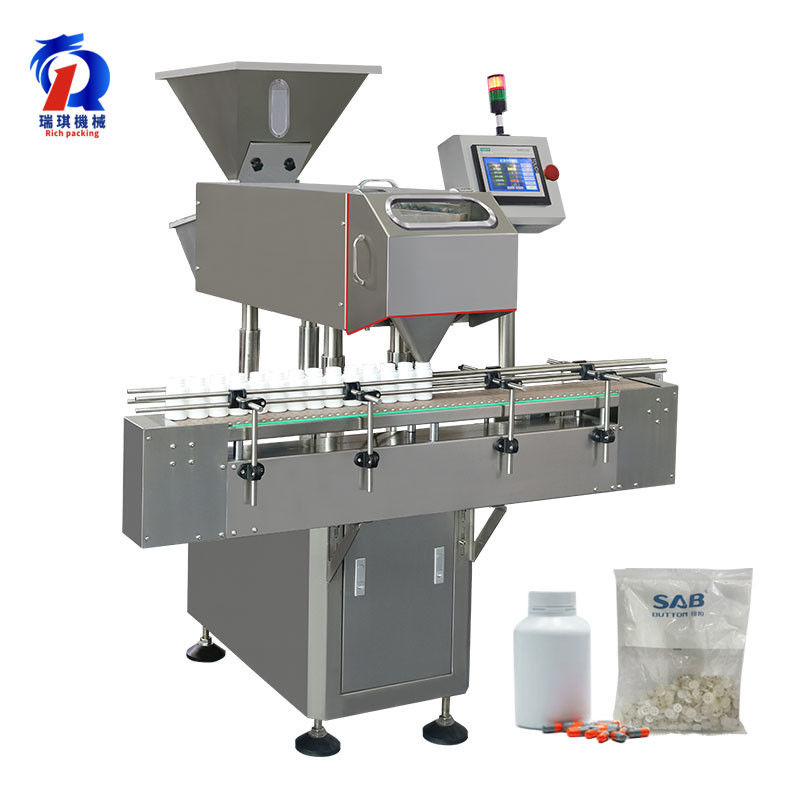

RQ-DSL-8 Automatic Electronic Tablet / Capsule Counting Bottling Machine

RQ-DSL-8 Automatic Electronic Tablet / Capsule Counting Bottling Machine

  • RQ-DSL-8 Automatic Electronic Tablet / Capsule Counting Bottling Machine
  • RQ-DSL-8 Automatic Electronic Tablet / Capsule Counting Bottling Machine
  • RQ-DSL-8 Automatic Electronic Tablet / Capsule Counting Bottling Machine
RQ-DSL-8 Automatic Electronic Tablet / Capsule Counting Bottling Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: SGS CE ISO 9001 GMP
Model Number: RQ-DSL-8
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiable
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 pcs/month
Contact Now
Detailed Product Description
Product Name: Automatic Tablet Capsule Counting Machine Type: Automatic Counting Machine
Capacity: 20-30 Bottles/min Counting Precision: 99.7%
Filling Range: 3000-9999 Pcs (Adjustable) Function: Counting And Bottling
Application: Tablets,Capsule,Buttons,Chewing Gum
High Light:

electronic tablet counting machine

,

automatic capsule counting machine

RQ-DSL-8 Automatic Electronic Tablet/Capsule Counting Bottling Machine

After-sale Engineers Available To Service Machinery Overseas
DSL Counting Machine Model 8 12 16 24
Applicable material Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules
Power 0.6Kw 0.6Kw 1.2Kw 1.5Kw
Max Capacity 30 bottles/min 40 bottles/min 80 bottles/min 90 bottles/min
Dimension(mm) 1200*1280*1560 1360*1650*1650 1600*1400*1560 2000*1600*1680
Weight 210Kg 490Kg 640Kg 690Kg



Spare Item Manufacturer
Motor Taiwan TQG
Counting Photoelectric Head Taiwan Everlight
Bottle Photoelectric Eye Japan Panasonic
Button France Schneider
PLC Germany Siemens



RQ-DSL-8 Automatic Electronic Tablet / Capsule Counting Bottling Machine 0

Japan Panasonic Bottle Photoelectric Eye


The Accuracy Rate Of Counting Machine Is More Than 99.7%, Which Is Higher Than The Industry Standard.



RQ-DSL-8 Automatic Electronic Tablet / Capsule Counting Bottling Machine 1

Speed Controller Of Conveyor



Our conveyor can adjust the speed for coordinating the wholesale line
