| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE/ISO 9001/SGS/GMP |
| Model Number: | DPP-110L |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |

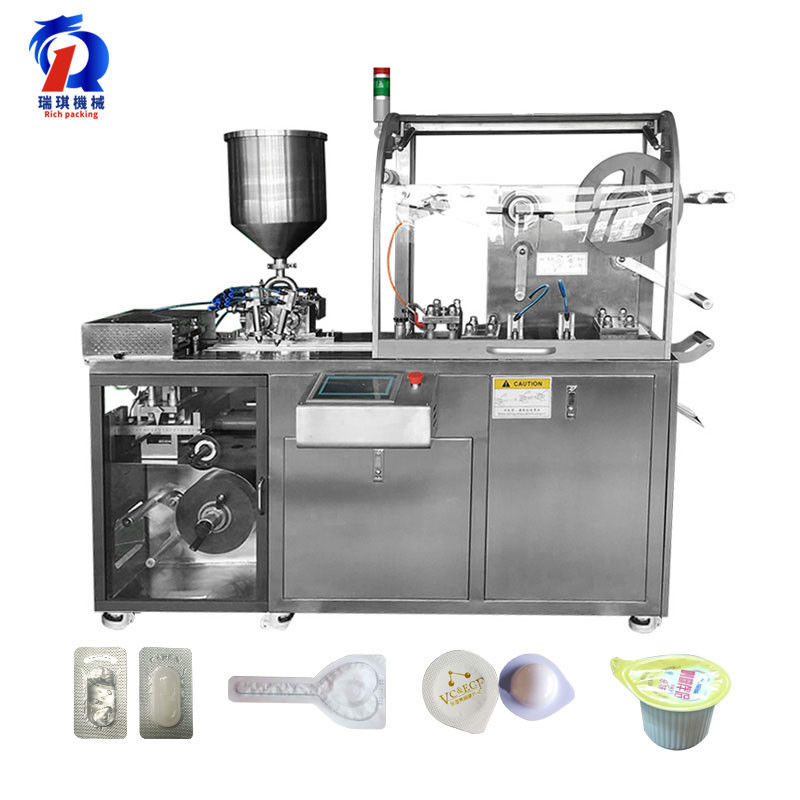

| Product Name: | Alu/PVC Blister Packaging Machine | Type: | Blister Packaging Machine |
|---|---|---|---|
| Applicable: | Cheese,Perfume,Ketchup,Butter...etc | Production: | 2400 Plates/h |
| Size Of Final Product: | The Standard Depth Is 14mm | Standard Board: | Customized As User's Requirement |
| Mold Cooling: | Running Water Or Circulating Water | ||
| Highlight: | pharmaceutical blister packaging machines,tablet blister packing machine |
||
1. Chocolate blister packing machine
2. Milk tablet blister packing machine
3. Capsule blister packing machine
4. Honey blister packing machine
5. Automatic blister packing machine
DPP-80 is a special kind of blister packing machine;Automatically pack tablet,capsule,candy,electronic cigarette, perfume and tomato sauce into aluminum plastic composite panel (ACP) or aluminum plate.It is the preferred machine possessing fully automatic shaping,adding,sealing and blanking, which is the preferred products for small and medium sized production in pharmaceutical manufacturing,chemical industry, electronicproductsand food industry, DPP-80 Blister packing machine Meets The Requirements Of GMP.
| After-sales Provide | Engineers Available To Service Machinery Overseas | ||
| Blister Machine Models | DPP-80 | DPP-110 | DPP-260 |
| Power | 2.4 Kw | 3.8 Kw | 6.2 Kw |
| Capacity | 2400 plates/h | 4200 plates/h | 23000 plates/h |
| Dimension | 1650*620*1250mm | 2300*635*1500mm | 3000*730*1600mm |
| Weight | 650 Kg | 1400 Kg | 1400 Kg |
| Parts Name | Spec/Model | Qty | Manufacturer |
| Main Motor | YS750W-4R | 1 | Taibang |
| Frequency Inverter | DVA-2S0007G | 1 | Delaier |
| Pc Control Panel | KZ12B | 1 | Self-Manufacturer |
| Emergency Button | XB2-BS542 | 1 | Schneider |
| Optional Sealing ,Optoelectronic Detection System And The Function Graphic And Text Version, Improve Package Level. | |
|
Molding Die Aluminum Alloy Material,Easy To Form,Hot Sealing Die Using StainlessIron;Secondary Deepening Molding Die According To Customer Request Deepen The Mold. |
| Accurate Positioning Of Mould Uniform Size Distribution Of Molding Module,Symmetry And Accuracy,Wide Material Suitable Range,Can Sue PVC,PS And PET To Produce. | |
|
According To The Properties Of Material,Our Machine Can Adopt Manual,brush,track And Pump For Feeding Material .high Precision That Is Within ±2%,and The Maximum Can Be Up To ±0.5% |
|
High Temperature Sealing,The Heat Is Adjustable,The Distribution Is Uniform,The Adhesives Is Strong,No Wrinkle,The Heat Seal Position Cylinder Is Driven,The Operasition Is Accurate And Convenient. (Equipped With Impressing Device) |
|
|
Kaogeer Advanced Control System And Cylinder Traction System,Accurate Travel,super-long Distance Multi-station Synchronous Stability. |
