| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | NJP-400 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 50 pcs/month |
| Product Name: | Fully Automatic Capsule Filling Machine | Type: | Capsule Filling Machine NJP |
|---|---|---|---|
| Filling Material: | Powder/GranulePill | Capsule Size: | 00,0,1,2,3,4,5# Capsule |
| Machine Material: | 304/316L Stainless Steel | Power Supply: | 380V/220V 50HZ |
| Function: | Capsule Filling And Sealing Machine | ||
| Highlight: | automatic capsule filler,auto capsule filling machine |
||
1.Powder capsule filling machine
2.Pellet capsule filling machine
3.Hard capsule filling machine
4.Fully automatic capsule machine
5.NJP capsule filling machine

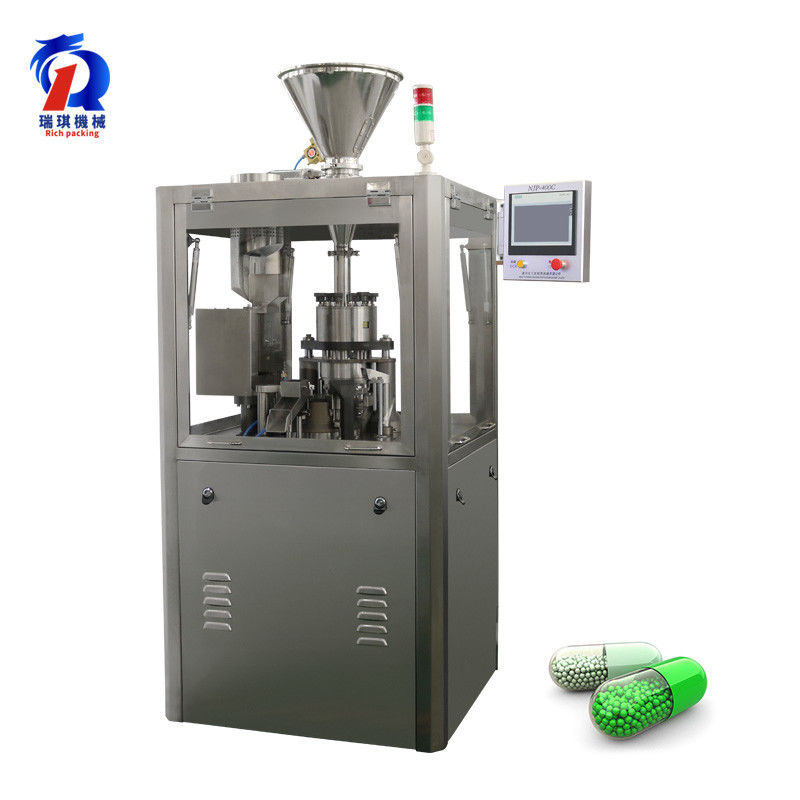

NJP-400C Capsule Filling machine is the third generation of innovative products. This capsule filling machine has 6 technological innovations and 2 invention patents.NJP-400C capsule filling machine can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#). It can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. It has the advantages of accurate loading, stable operation and no dust. This capsule filling machine meets the GMP requirements, NJP-400C capsule filling machine is an ideal equipment for filling Chinese, Western medicines and health care product .
| NJP Model | 200C | 400C | 800C | 1200C |
| Capsule Size | 00,,0,1,2,3,4,5 # Size Capsule | |||
| Power | 3Kw | 3.5Kw | 5Kw | 5.5Kw |
| Production Capacity | 12000 Pcs/h | 24000 Pcs/h | 48000 Pcs/h | 72000 Pcs/h |
| Dimension | 805*705*1760mm | 805*705*1760mm | 865*855*1900mm | 900*870*1950mm |
| Weight | 600Kg | 600Kg | 900Kg | 1100Kg |
| Item | Specification | Qty. | Manufacturer |
| Touch Screen | 6AV6/648-0BC11-3AX0 | 1 | Germany Siemens |
| PLC | 6ES7/288-1ST20-0AA0 | 1 | Germany Siemens |
| AC Contactor | 3TB42 | 4 | Germany Siemens |
| Frequency Converter | VFD015 B21A | 1 | Taiwan Delta |
| Vacuum Pump(Dry) | RX25 | 1 | Taiwan Ruixu |
