| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | NJP-1200C |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| After-sales: | Engineers Available To Service Machinery Overseas | Warranty: | 1 Year/12 Months |
|---|---|---|---|
| Product Name: | NJP-1200C Fully Automatic Capsule Filling Machine | Item Type: | Capsule Filling Machine |
| Production Capacity: | 72000 Pcs/h | Power Supply: | 380/220V 50Hz |
| Applicable Material: | Powder,Granule,Pellet,Tablet,Pill | Making Rate: | Empty Capsule 99.9%;full Capsule 99.8% |
| Filling Error: | ±3%-±4% | ||
| High Light: | pill filler machine,auto capsule filling machine |
||
1:Capsule Powder Filling Machine
2:Automatic Capsule Filling Machine
3:Hard Capsule Filling Machine
4:Capsule Filler Machine
5:NJP Capsule Filling Machine

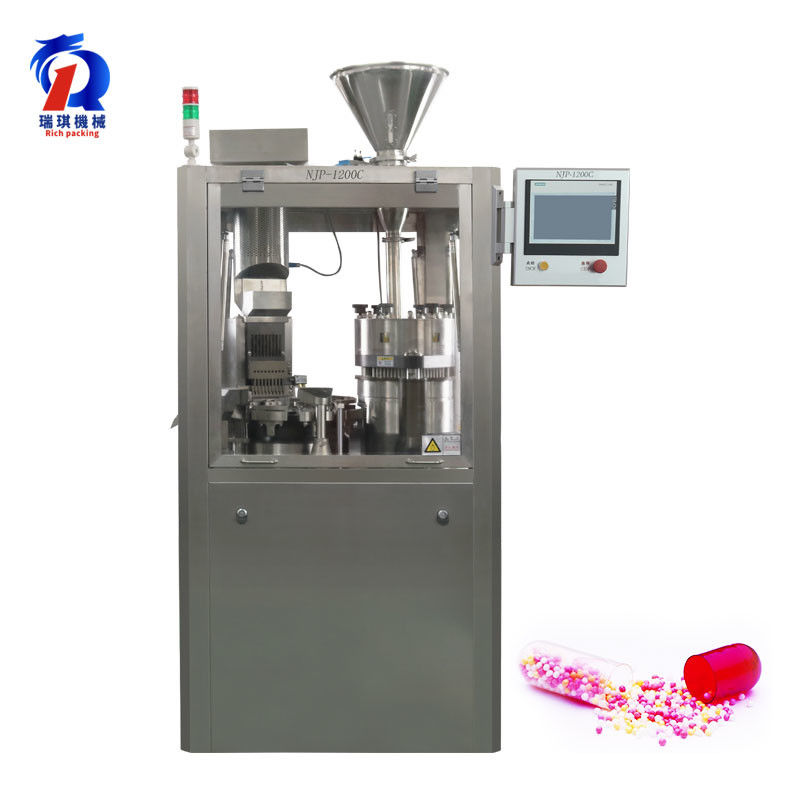

GMP requirements NJP-1200C Capsule Filling Machine is the third generation of innovative products. It has 6 technological innovations and 2 invention patents. Capsule filling machine can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#). It can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. NJP-200C Capsule filling machine has the advantages of accurate loading, stable operation and no dust, NJP-1200C Capsulefilling machine is an ideal equipment for filling Chinese, Western medicines and health care product .
The capsule filling machine has faster filling speed, smaller size difference of capsule filling machine, compact powder and capsule shell finishing, capsule cap finishing and capsule package. In addition, the capsule filling machine has many advantages, such as fast arrangement, high efficiency, simple operation, convenient maintenance, low power consumption and so on. It is the preferred capsule filling machine for pharmaceutical factories, health products factories, hospital preparation rooms, etc.
| Filling Machine Model | 200C | 400C | 800C | 1200C |
| Power | 3Kw | 3.5Kw | 5Kw | 5.5Kw |
| Production Capacity | 12000 Pcs/h | 24000 Pcs/h | 48000 Pcs/h | 72000 Pcs/h |
| Dimension | 805*705*1760mm | 805*705*1760mm | 865*855*1900mm | 900*870*1950mm |
| Weight | 600Kg | 600Kg | 900Kg | 1100Kg |
| Parts Item | Specificatio | Qty | Manufacturer |
| Touch Screen | 6AV6/648-0BC11-3AX0 | 1 | Germany Siemens |
| PLC | 6ES7/288-1ST20-0AA0 | 1 | Germany Siemens |
| AC Contactor | 3TB42 | 4 | Germany Siemens |
| Thermal Relay | 3UA59 | 3 | Germany Siemens |
| Main Motor | CH-30-1100W | 1 | Dongli |
| 1:NJP-1200C Capsule Filling Machine Obtains The National New Patent, Adopts The Three-dimensional Adjustment, Makes The Metering Plate Evenly Force, The Adjustment Volume Is Precise And Quick. |  |
| 2:Utility Patent Rotary Design Capsule Filling Machine, The Sealing Ring Using Imported Sil Silicone Rubber, Effectively Prevent Powder Into The Internal Turntable; Transverse Biaxial Adapt Ptfe Oil-less Bearing, No Need Refueling. |
| 3:Capsule Filling Machine Segmentation Adapt German Cai Si For 3 Seconds (zeiss) Optical Dividing Head Indexing, Indexing Shaft Completed A One-time Processing, Loading And High Precision, The Error Is Less Than Or Equal To 3%. | |
| 4:NJP-1200C Capsule Filling Machine Adopt Nut-type Adjusting Metering Device,Convenient,Fast And Accurate. |
| 5:Capsule Filling Machine The Control Appliance Adopts The World Famous Brand, All The Parts Of The Contact Drug Are Made Of Stainless Steel 316,seven Lines Of Aero Aluminum Automatic Rejection Device. | |
