Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: NJP-1500D Capsule Filling Machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $26200/pc
Packaging Details: Standard export wooden case
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Production Capacity: 90000 Pcs/h Power: 380/220V 50Hz
Total Power: 5.5KW Noise: <75DB(A)
Making Rate: Empty Capsule 99.9% Full Capsule 99.8% Applicable Capsule: 000 00 0 1 2 3 4 5#
Filling Error: Western Medicine:±3% Chinese Medicine:±4% Applicable Product: Power、granule、pellet、tablet
Packing Size: 1490×1260×2150mm Touch Screen: Germany Siemens
Main Motor: Dongli
High Light:

pill filler machine

,

auto capsule filling machine

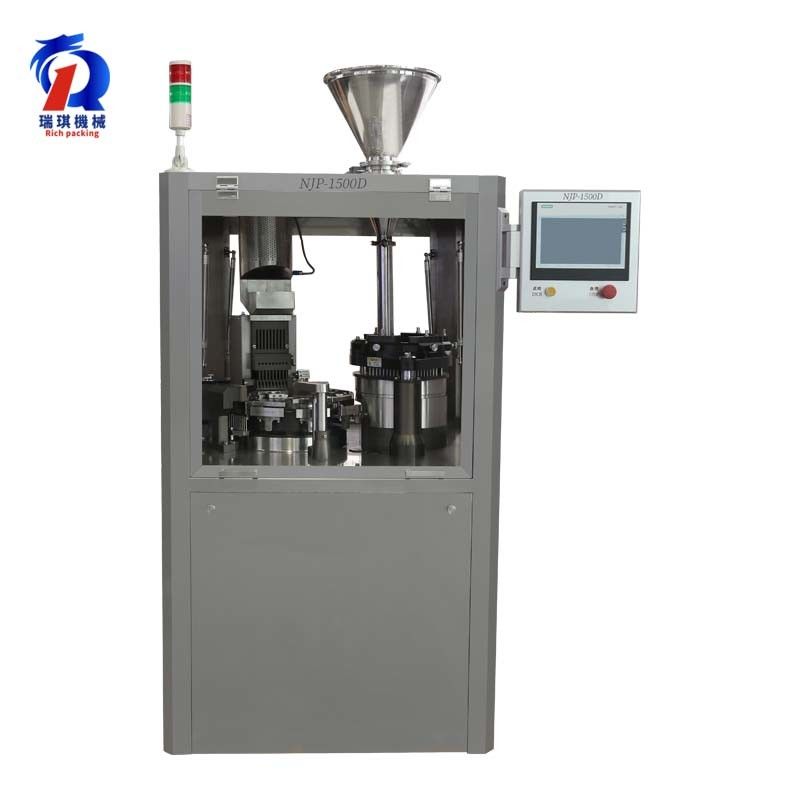

 NJP-1500D built-in cam High speed Fully Automatic Capsule Filling Machine Offering Overseas Services



  NJP-1500D this model capsule filling machine is the latest D-type innovative product developed by the company. The capsule filling machine has 7 major technological innovations and 2 invention patents.,this type capsule filling machine can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#). The newest capsule filling machine can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output. This capsule filling machine has the advantages of accurate loading, stable operation and no dust. It meets the GMP and JB20025-2004requirements,it is an ideal equipment for filling Chinese, Western medicines and health care product .

   Our company produces capsule filling machinereasonable design,the working stations adopt design mode with low platform, modular structure, easy operation and lower failure rate. We insist Safety first, capsule filling machine all the working stations take full account of the personal safety, such as the door control and emergency stop switch.

    Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 0Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 1

                     Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 2

    GUANGDONG RICHPACKING produce NJP-1500D  Automatic Capsule Filling MachineSegmentation adapt German Cai Si for 3 seconds (Zeiss) optical dividing head indexing, indexing shaft completed a one-time processing, loading and high precision, the error is less than or equal to 3%.

    NJP-1500D capsule filling machine adopts large high precision cam indexing box, completely changed the past 83DS failure frequency, even the phenomenon of the fracture of the force shaft and the output shaft. It is the only enterprise that adopts 100DS and 100DS indexing box in our country at present. The continuous operation of the equipment has been guaranteed.

    Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 3

Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 4

    The inner groove cam of NJP-1500D capsule filling machine is formed by CNC machining center once, no splitting, no splicing, no gap, better stability, no noise in the transmission mechanism in high-speed production of equipment.1500D capsule filling machine maintenance is very easy, just need lubricate the cam one timein the capsule filling machine then the grease can be continuously lubricated, ensuring smooth transmission of the transmission mechanism.and no oil leaking,conform to the GMP requirements.

    Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 5

    This model 1500D capsule filling machine Rotary design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow pollution; Transverse biaxial adapt PTFE oil-less bearing, no need refueling; modular structure, equipped with jog operation, convenient maintenance and cleaning, replacement of mold only 15 minutes.

    Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 6

    The filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.

    Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 7Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 8

    The capsule filling machine filling rod holder adopts the drawing card slot design, and it is more convenient to replace various types of filling rods.

    Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 9

    Built - In Cam Capsule Filling Equipment Germany Siemens Touch Screen 10

    Our factory has a history of 25 years experience in manufacturing. And the total area of our factory is 7996 with 12 R&D personnel, 52 units/ set of facilities like laser cutting machine and CNC machining center. With high production efficiency, can produce 3000 units/set of machines. We have obtained SGS, CE and ISO certificates, and won respect and trust from our customers for high quality, quick and efficient services and honesty, like UCB, GSK and Guangzhou Phar. Holdings.

    Guangdong Rich Packing Machinery Co., Ltd. located in Haizhu district, Guangzhou City with convenient transportation and rich resources, is a combination of design, development, production, sales, which not only manufactures pharmaceutical machinery, packing machinery, but also provides whole set of technical and business solution, registered capital is 10 million RMB. And main products are including automatic capsule filling machine, tablet press machine, electronic counting machine, blister packing machine, coating machine, cartooning machine, etc.
