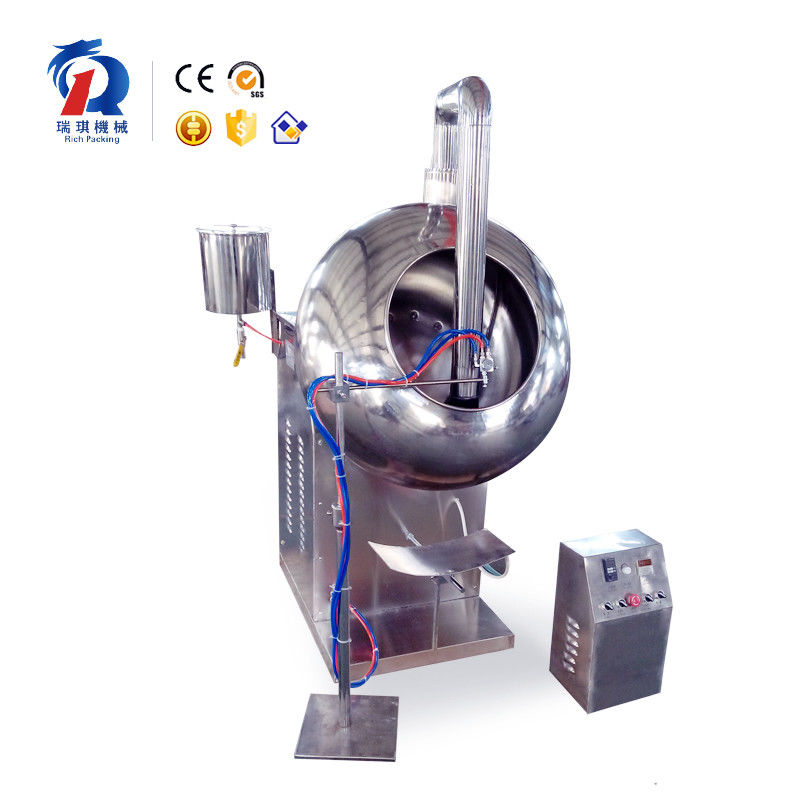

Pharmaceutical Pill Coating Machine , 380V/50Hz Food Coating Machine

Pharmaceutical Pill Coating Machine , 380V/50Hz Food Coating Machine

  • Pharmaceutical Pill Coating Machine , 380V/50Hz Food Coating Machine
Pharmaceutical Pill Coating Machine , 380V/50Hz Food Coating Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: BYC–1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $1950-2400/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Pharmaceutical Bean Snack Sugar Pill Food Coating Machine Price Model: BYC–1000
Throughput: 50~70kg/time Pot Body Inclination: 30°
Motor Power: 1.5kW Fan Power: 200W
Liquid Tank Volume: 10L Spray Gun: According To Customer’ Requirements.
Speed: 0~32r/min Power Supply: 380V/220V/50Hz
Weight: 300kg Electric Heating Power: 4kW
High Light:

tablet coating machine

,

auto coater machine

Pharmaceutical Bean Snack Sugar Pill Food Coating Machine Price

Introduction of coating machine:

The coating machine is used to coat the core of Chinese and Western medicine tablets with thin film. The coating machine integrates strength, weakness, hydraulic pressure and pneumatics. The film coating machinery can control the speed automatically. The spraying accessories are sprayed onto the surface of the tablets by automatic electric control method.

Features of coating machine:

The coating machine is a new type equipment improved on the basis of original common type sugar coating machine.The film coating machinery composed of the mainframe (original sugarcoating machine), controllable normal temperature hot air system, automatic fluid supply and air supply spraying system, etc.The tablets make continuous and complex track movement in the coating pan, let the coating fluid cover the tablet core evenly, the controllable normal-temperature hot air in the pan will dry the tablets at the same time, let the tablet rapidly form a firm, fine, complete and smooth surface film.

Model BYC-1000
Throughput 50~70kg/time
Pot body inclination 30°
Motor power 1.5kW
Fan power 200W
Liquid tank volume 10L
Spray gun According to customer’ requirements.
Speed 0~32r/min
Electric heating power 4kW
Power Supply 380V/50Hz
Weight 300kg

Pharmaceutical Pill Coating Machine , 380V/50Hz Food Coating Machine 0Pharmaceutical Pill Coating Machine , 380V/50Hz Food Coating Machine 1
