|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||Pharmaceutical Machinery 7.5KW 220V 380V Automatic Pill Press Tablet Machine||Dies No.:||55set|
|Max. Production Capacity:||260000 Pcs/h||Max. Tablet Diameter:||13mm|
|Max. Thickness Of Tablet:||8mm||Weight Of Machine:||2000kg|
|Outline Dim.:||1220×1120×1850 Mm||Packing Size:||1600×1300×2160mm|
pill press machine,
tablet pill press machine

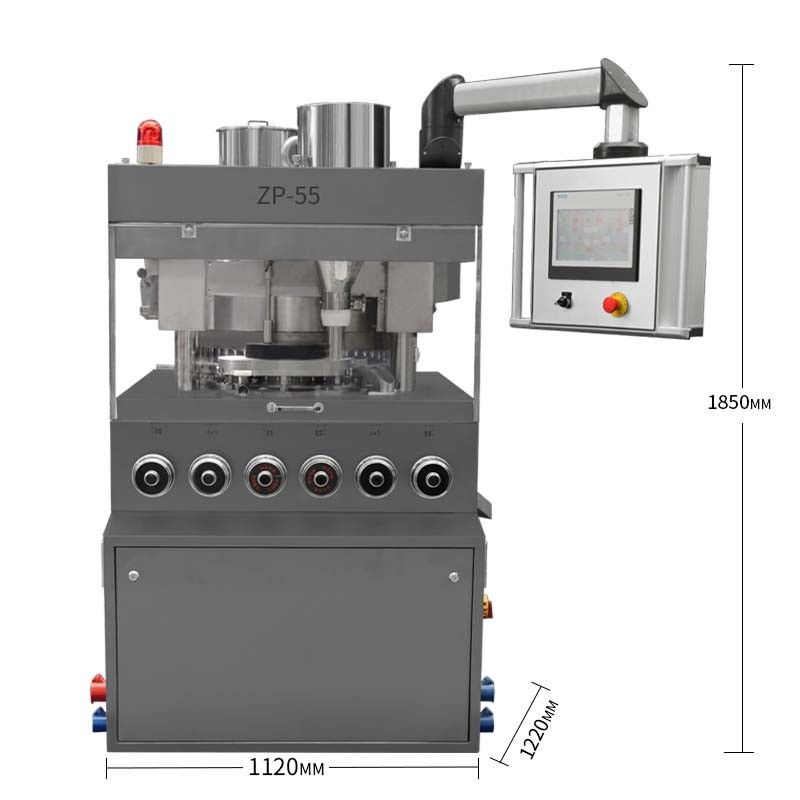

Pharmaceutical Machinery 7.5KW 220V 380V Automatic Pill Press Tablet Machine
Introduction of tablet press machine
Tablet press machines are mainly used for tablet process research in the pharmaceutical industry. This tablet press machinery adopts single pressure, IPT die, the maximum pressure is 80 kN, maximum press diameter 25mm, maximum capacity 40000/ hours, maximum press thickness 8mm.
Features of automatic pharmacy tablet press machine:
1.High efficiency and high cost performance. This tablet press machinery adopts single pressure, IPT die, the maximum pressure is 80 kN, maximum press diameter 25mm, maximum capacity 40000/ hours, maximum press thickness 8mm.
2.The tablet press machinery meets the requirements of GMP. The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing. All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention". The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the requirements of GMP.
3.The hole of upper punch of tablet press machine, lower punch and middle mold, the axis of outer circle to the center of the shaft hole coaxiality is H8 (-0.165/0).
4.The contact parts of tablet press machinery die hole surface and the upper and lower die and rail roughness Ra≤1.6μm, the feeder is tin bronze (ZQSn6-6-3) material, the surface of nickel chromium, the bottom roughness Ra≤0.8μm.
5.The sensitivity of the tablet press machine's hand wheel is 0.1mm.
With pressure overload protection device. It will start the overload protection through the spring pressure, alarm lights, automatic stop running.
The principle of eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution
