Place of Origin: | Guangzhou, China |
Brand Name: | Rich Packing |
Certification: | CE ISO SGS |
Model Number: | ZP-35 |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | $12000-18000/pc |
Packaging Details: | Standard export wooden case |
Delivery Time: | 20-30 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 30 pcs/month |
Name: | Rotary Tablet Press Machine Multi-dies Pills Making Compress Euipment | Dies No.: | 35set |
---|---|---|---|
Max. Production Capacity: | 130000 Pcs/h | Max. Pressure: | 80KN |
Max. Dia. Of Tablet: | 16mm | Max. Thickness Of Tablet: | 6mm |
Dia. Of Middle Die: | Ф26mm | Dia.of Upper/Lower Punching Bar: | Ф22mm |
Max. Depth Of Filling: | 15mm | Rotary Speed: | 4~32 R/min |
Length Of Upper/Lower Punching Bar: | 115mm | Motor: | 4kw |
Weight Of Machine: | 1400kg | Outline Dim.: | 1040×910×1690mm |
Packing Size: | 1340×1100×1960mm | Packing Size Of Dust Collector: | 960×620×1460 Mm |
Highlight: | pill press machine,tablet pill press machine |

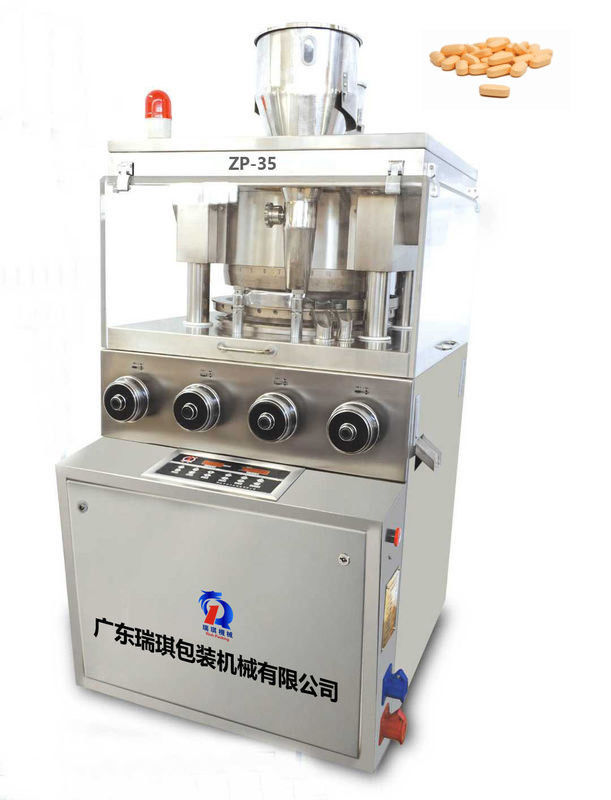

Rotary Tablet Press Machine Multi-dies Pills Making Compress Euipment
Introduction of tablet press machine
The tablet press machine equipment has high precision, stable weight, sensitive adjustment and smooth operation. The tablet compress machine is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, the pharmacy pill press machine is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.
Features of automatic pharmacy tablet press machine:
1.This pharmaceutical tablet press machine uses large angle platform design as far as possible in each part of the machine's operating surface, reducing the "ditch ridge" and the exposed nut to make it smooth and without dead angle.
2.The mold, hopper, feeder, outlet slot, scraping plate of the tablet compress machine are disassembly convenient, easy cleaning and maintenance.
3.The principle of pill compress machine eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution
4.The pill press machine upper punch adapt "down pressure guide", will not jump, running more smoothly.
Dies No. | 35 set |
Max. Production Capacity | 130000 pcs/h |
Max. Pressure | 80KN |
Max. Dia. of Tablet | 16mm |
Max. Depth of Filling | 15mm |
Max. Thickness of Tablet | 6mm |
Dia. Of Middle Die | Ф26mm |
Length of Upper/Lower Punching Bar | 115mm |
Dia.of Upper/Lower Punching Bar | Ф22mm |
Rotary Speed | 4~32 r/min |
Motor | 4kw |
Weight of Machine | 1400kg |
Outline Dim. | 1040×910×1690mm |
Packing Size | 1340×1100×1960mm |
Packing size of Dust Collector | 960×620×1460 mm |
Turntable: The turntable is made of ductile iron and is aged strictly for 12 months. It is hard, wear-resistant, non-toxic and smooth, and fully meets the requirements of GMP.
