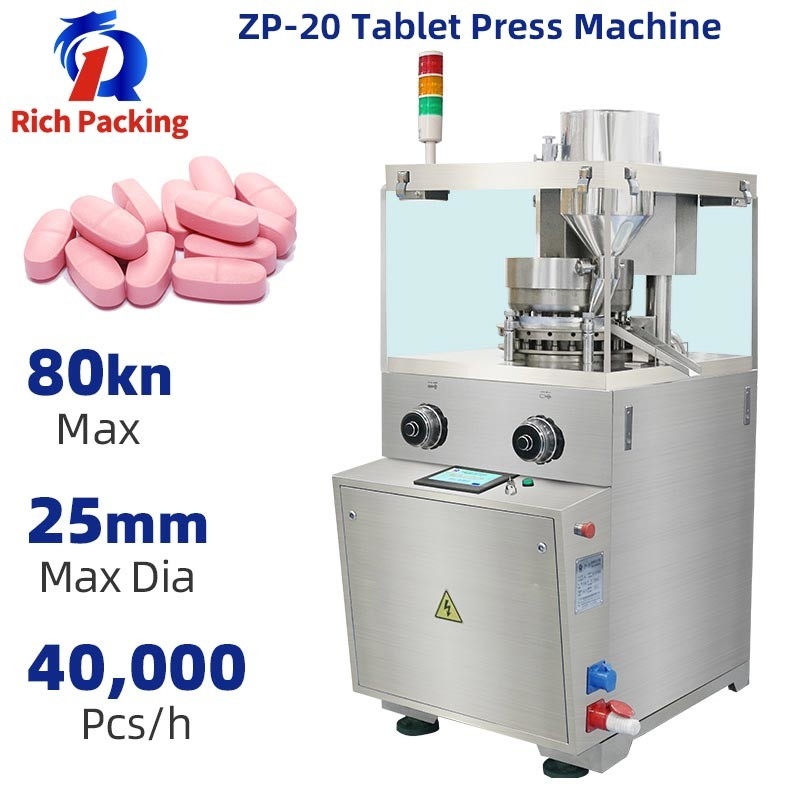

Large Capacity Rotary Tablet Powder Pressing Machine For Chemical Industry

Large Capacity Rotary Tablet Powder Pressing Machine For Chemical Industry

Large Capacity Rotary Tablet Powder Pressing Machine For Chemical Industry
Large Capacity Rotary Tablet Powder Pressing Machine For Chemical Industry
Large Capacity Rotary Tablet Powder Pressing Machine For Chemical Industry
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: ZP-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: Negotiated price
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Large Capacity Rotary Tablet Press Machine Of Rich Packing For Sale Dies No.: 20 Set
Max. Production Capacity: 40000 Pcs/h Max. Pressure: 80KN
Max. Dia. Of Tablet: 25mm Max. Depth Of Filling: 18mm
Max. Thickness Of Tablet: 8mm Dia. Of Middle Die: Ф38.1mm
Length Of Upper/Lower Punching Bar: 133.4mm Dia.of Upper/Lower Punching Bar: Ф25.4mm
Motor: 4.0kw Rotary Speed: 4~32 R/min
Weight Of Machine: 1200kg Packing Size: 1340×1100×1960mm
Packing Size Of Dust Collector: 960×620×1460 Mm Outline Dim.: 840×1015×1720mm
Highlight:

capsule press machine

,

tablet pill press machine

        Large Capacity Rotary Tablet Press Machine of Rich Packing for Sale



Dies No. 20 set
Max. Production Capacity 40000 pcs/h
Max. Pressure 80KN
Max. Dia. of Tablet 25mm
Max. Depth of Filling 18mm
Max. Thickness of Tablet 8mm
Dia. Of Middle Die Ф38.1mm
Length of Upper/Lower Punching Bar 133.4mm
Dia.of Upper/Lower Punching Bar Ф25.4mm
Rotary Speed 4~32 r/min
Motor 4.0kw
Weight of Machine 1200kg
Outline Dim. 840×1015×1720mm
Packing Size 1340×1100×1960mm
Packing size of Dust Collector 960×620×1460 mm



Large Capacity Rotary Tablet Powder Pressing Machine For Chemical Industry 0

Product details:

Large Capacity Rotary Tablet Powder Pressing Machine For Chemical Industry 1

Production workshop:

Large Capacity Rotary Tablet Powder Pressing Machine For Chemical Industry 2

Exhibition:

Large Capacity Rotary Tablet Powder Pressing Machine For Chemical Industry 3

Large Capacity Rotary Tablet Powder Pressing Machine For Chemical Industry 4



Introduction of tablet press machine

This automatic high speed tablet press machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.This tablet press machinery adopts single pressure, IPT die, the maximum pressure is 80 kN, maximum press diameter 25mm, maximum capacity 40000/ hours, maximum press thickness 8mm.

Features of automatic pharmacy tablet press machine:

1.The tablet press machinery meets the requirements of GMP. The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing.

2.With pressure overload protection device. The pill press machine will start the overload protection through the spring pressure, alarm lights, automatic stop running.
3.The principle of pill compress machine eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution

4.The mold, hopper, feeder, outlet slot, scraping plate of the tablet compress machine are disassembly convenient, easy cleaning and maintenance.
5.Good sealing performance, the pharmacy tablet press machine can prevent cross pollution.
