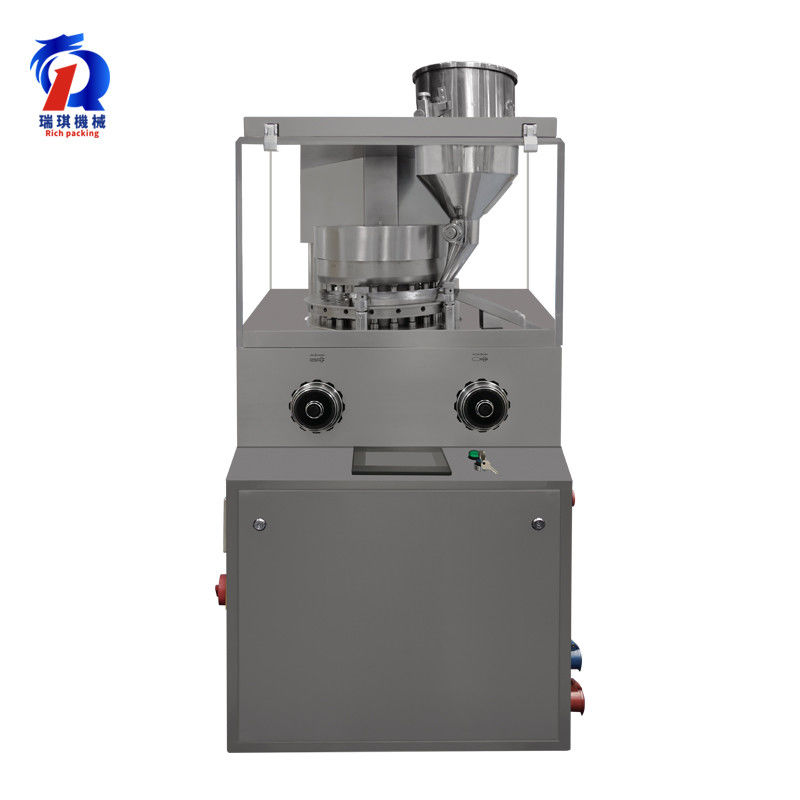

High Speed Pharmacy Food Press Machine For Powder CE ISO SGS Certificated

High Speed Pharmacy Food Press Machine For Powder CE ISO SGS Certificated

  • High Speed Pharmacy Food Press Machine For Powder CE ISO SGS Certificated
High Speed Pharmacy Food Press Machine For Powder CE ISO SGS Certificated
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: ZP-20
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $9000-17000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: High Speed Rotary Tablet Press Machine Price For Pharmacy Food Max. Production Capacity: 40000 Pcs/h
Dies No.: 20 Set Max. Pressure: 80KN
Max. Dia. Of Tablet: 25mm Dia. Of Middle Die: Ф38.1mm
Max. Depth Of Filling: 18mm Max. Thickness Of Tablet: 8mm
Length Of Upper/Lower Punching Bar: 133.4mm Dia.of Upper/Lower Punching Bar: Ф25.4mm
Rotary Speed: 4~32 R/min Motor: 4.0kw
Weight Of Machine: 1200kg Outline Dim.: 840×1015×1720mm
Packing Size: 1340×1100×1960mm Packing Size Of Dust Collector: 960×620×1460 Mm
High Light:

pill press machine

,

capsule press machine

High Speed Rotary Tablet Press Machine Price for Pharmacy Food

Introduction of tablet press machine

The tablet press machinery meets the requirements of GMP. The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing. All the contacting parts of the tablet press meet the requirements of "no poison, no odor and corrosion prevention". The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the requirements of GMP.

Features of automatic pharmacy tablet press machine:

1.The principle of pill compress machine eccentric torque is used to protect the die and machine. Compared with the hydraulic overload protection, it has a fast reaction speed and no oil pollution
2. The tablet press machine has intelligent lubrication system. The technology of BIJUR DELIMON, USA, is used to provided timely, quantitative and timely refueling for parts that need lubrication. The quantity of oil can be flexibly

adjusted according to the specific environment of customers.
3.Abide by the GMP idea, the product is structured and modularized.
4.The independent modularization of the tablet pressing machine transmission system is set under the main body of the machine, and it can effectively avoid the trace contaminant drugs produced by the friction of the machine running.
5.This pharmaceutical tablet press machine uses large angle platform design as far as possible in each part of the machine's operating surface, reducing the "ditch ridge" and the exposed nut to make it smooth and without dead angle.

Dies No. 20 set
Max. Production Capacity 40000 pcs/h
Max. Pressure 80KN
Max. Dia. of Tablet 25mm
Max. Depth of Filling 18mm
Max. Thickness of Tablet 8mm
Dia. Of Middle Die Ф38.1mm
Length of Upper/Lower Punching Bar 133.4mm
Dia.of Upper/Lower Punching Bar Ф25.4mm
Rotary Speed 4~32 r/min
Motor 4.0kw
Weight of Machine 1200kg
Outline Dim. 840×1015×1720mm
Packing Size 1340×1100×1960mm
Packing size of Dust Collector 960×620×1460 mm



High Speed Pharmacy Food Press Machine For Powder CE ISO SGS Certificated 0High Speed Pharmacy Food Press Machine For Powder CE ISO SGS Certificated 1

The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the requirements of GMP.
