| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | ZP-20 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Automatic Vitamin Pharmacy Effervescent Tablets Press Machine | Dies No.: | 20 Set |
|---|---|---|---|
| Max. Production Capacity: | 40000 Pcs/h | Max. Pressure: | 80KN |
| Max. Dia. Of Tablet: | 25mm | Max. Depth Of Filling: | 18mm |
| Max. Thickness Of Tablet: | 8mm | Dia. Of Middle Die: | Ф38.1mm |
| Length Of Upper/Lower Punching Bar: | 133.4mm | Dia.of Upper/Lower Punching Bar: | Ф25.4mm |
| Rotary Speed: | 4～32 R/min | Motor: | 4.0kw |
| Weight Of Machine: | 1200kg | Outline Dim.: | 840×1015×1720mm |
| Packing Size: | 1340×1100×1960mm | Packing Size Of Dust Collector: | 960×620×1460 Mm |
| High Light: | pill press machine,capsule press machine |
||

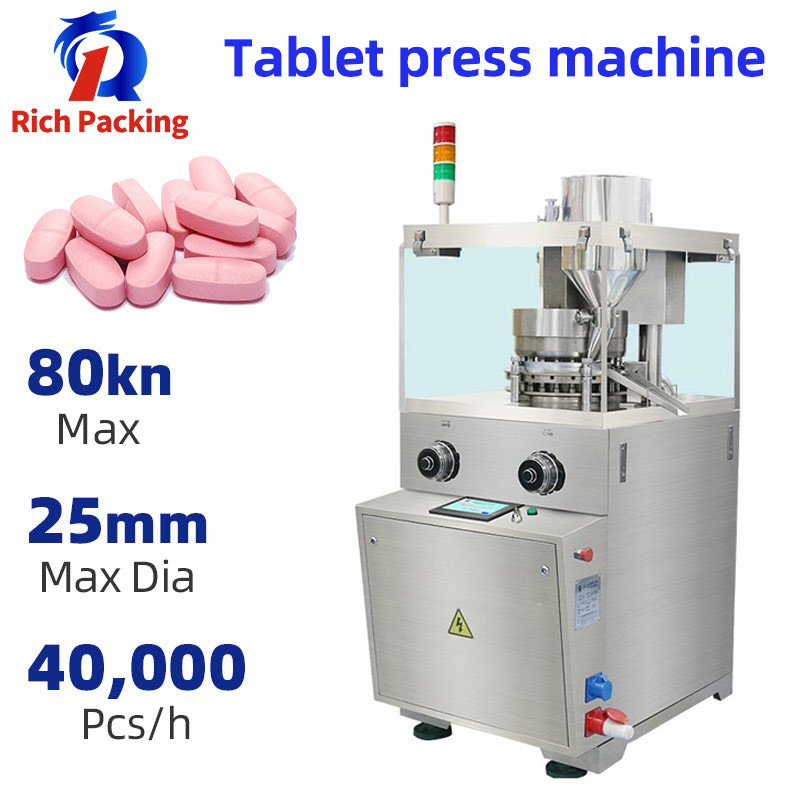

Automatic Vitamin Pharmacy Effervescent Tablets Press Machine
Introduction of tablet press machine
ZP-20 is a kind of automatic rotary tablet press machine and is suitable for continuously pressing powder and particle into round tablets, special-shaped tablets, double color and annular tablet. The tablet compress machine is the preferred product in pharmaceutical, chemical, electronics, food and other enterprises in production, the pharmacy pill press machine is also suitable for pressing that material that is difficult formed into tablet, meet the requirements of GMP production.
Features of automatic pharmacy tablet press machine:
1.High efficiency and high cost performance. This tablet press machinery adopts single pressure, IPT die, the maximum pressure is 80 kN, maximum press diameter 25mm, maximum capacity 40000/ hours, maximum press thickness 8mm.
2.The tablet press machinery meets the requirements of GMP. The whole shell is made of stainless steel, and the chamber is separated from the outside environment by the organic glass, with good sealing. All the contacting parts of the
tablet press meet the requirements of "no poison, no odor and corrosion prevention". The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the
requirements of GMP.
3.The tablet press machine equipment has high precision, stable weight, sensitive adjustment and smooth operation.
4.The hole of upper punch of tablet press machine, lower punch and middle mold, the axis of outer circle to the center of the shaft hole coaxiality is H8 (-0.165/0).
5.The contact parts of tablet press machinery die hole surface and the upper and lower die and rail roughness Ra≤1.6μm, the feeder is tin bronze (ZQSn6-6-3) material, the surface of nickel chromium, the bottom roughness
Ra≤0.8μm.
| Dies No. | 20 set |
| Max. Production Capacity | 40000 pcs/h |
| Max. Pressure | 80KN |
| Max. Dia. of Tablet | 25mm |
| Max. Depth of Filling | 18mm |
| Max. Thickness of Tablet | 8mm |
| Dia. Of Middle Die | Ф38.1mm |
| Length of Upper/Lower Punching Bar | 133.4mm |
| Dia.of Upper/Lower Punching Bar | Ф25.4mm |
| Rotary Speed | 4～32 r/min |
| Motor | 4.0kw |
| Weight of Machine | 1200kg |
| Outline Dim. | 840×1015×1720mm |
| Packing Size | 1340×1100×1960mm |
| Packing size of Dust Collector | 960×620×1460 mm |
Product details:
Production workshop:
About us:
The turntable is made of nodular cast iron and strictly implemented for 12 months, which is hard, wearable, non-toxic and smooth, which fully meets the requirements of GMP.
