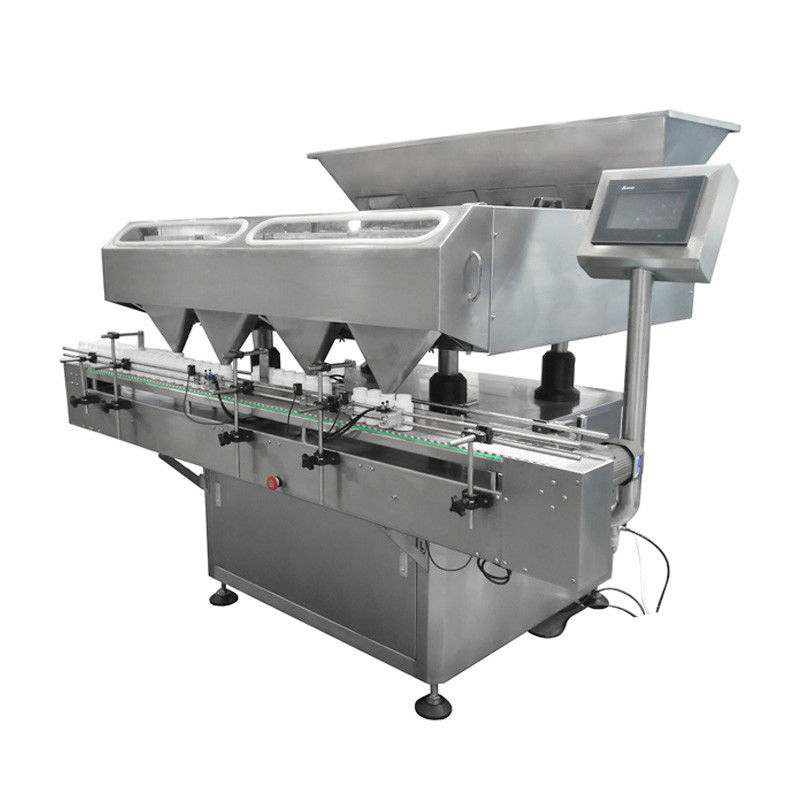

2.5 KW Electronic Counting Machine 40-150 Bottles / Min Production Capacity

2.5 KW Electronic Counting Machine 40-150 Bottles / Min Production Capacity

  • 2.5 KW Electronic Counting Machine 40-150 Bottles / Min Production Capacity
2.5 KW Electronic Counting Machine 40-150 Bottles / Min Production Capacity
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: RQ-DSL-48B
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $46000-51000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Automatic Tablet Counter Electronic Capsule Counting Machine Production Capacity: 40-150 Bottles/min
Accuracy Rate: >99.5% Applicable Target: 00-5 Capsule, Soft Capsule, Ø 5.5-20 Tablet,shaped,sugarcoated Tablet And Ø3-20 Pill
Filling Range: 2-9999 Grains (tablets) Adjustable Applicable Bottle Type: 10-500ml Round, Square Bottle
Voltage: 380/220V 50Hz Power: 2.5 KW
Pressure: 0.6Mpa Net Weight: 580 Kg
Outline Dim.(mm): 2200*1400*1680mm
High Light:

electronic tablet counting machine

,

automatic capsule counting machine

Automatic Tablet Counter Electronic Capsule Counting Machine

Introduction of capsule pill tablet counting machine:

The structure of small size low noise and smooth operation, small and medium-sized pharmaceutical companies, health care products factory, hospital preparation room, the ideal number of grain automatic bottling equipment.The quality of the tablet capsule counting machine is reliable.The machine adopts stainless steel 304, material contact part uses stainless steel 316 material.

Features of electrical capsule tablet counting machine:

1.The flip-flop subassembly mechanism obtains the national patent, does not damage the material when opening and closing.
2.The tablet counting machine has good stability.Using the electronic counting technology of high dust resistance, the pill capsule tablet counting machine can still operate normally in high dust environment.

3.Capsule count machinery has high integration.Can be based on the size of the customer site, output, front and back of the process line control, improve efficiency, save labor.
4.Easy to use the counting machine .Small area, easy to remove and clear without any tools.

5.All the mould using cylindrical pin positioning design to replace the mold can only take 5 minutes to install in place convenient and quick.

Production capacity 40-150 bottles/min
Accurate rate > 99.5%
Applicable material Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules
Loading Capacity for Per Bottle 2~9999 pcs
Applicable Bottle 10~500 ML round and square plastic bottle
Power 220V 50Hz
Total Power 2.5 kW
Air Pressure 0.6 MPa
Gas Consumption 45-60 L/min
Weight 580 kg
Overall Size 2200*1400*1680mm

2.5 KW Electronic Counting Machine 40-150 Bottles / Min Production Capacity 0

2.5 KW Electronic Counting Machine 40-150 Bottles / Min Production Capacity 1

Adopt Taiwan Delta touch screen, can set up every parameter according to the actual demand.
