|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||Medical Machinery Capsule Counting Machine Capsule Filling Machine||Production Capacity:||40-150 Bottles/min|
|Accuracy Rate:||＞99.5%||Applicable Target:||00-5 Capsule, Soft Capsule, Ø 5.5-20 Tablet,shaped,sugarcoated Tablet And Ø3-20 Pill|
|Filling Range:||2-9999 Grains (tablets) Adjustable||Applicable Bottle Type:||10-500ml Round, Square Bottle|
|Voltage:||380/220V 50Hz||Power:||2.5 KW|
|Pressure:||0.6Mpa||Net Weight:||580 Kg|
electronic tablet counting machine,
tablet capsule counting machine

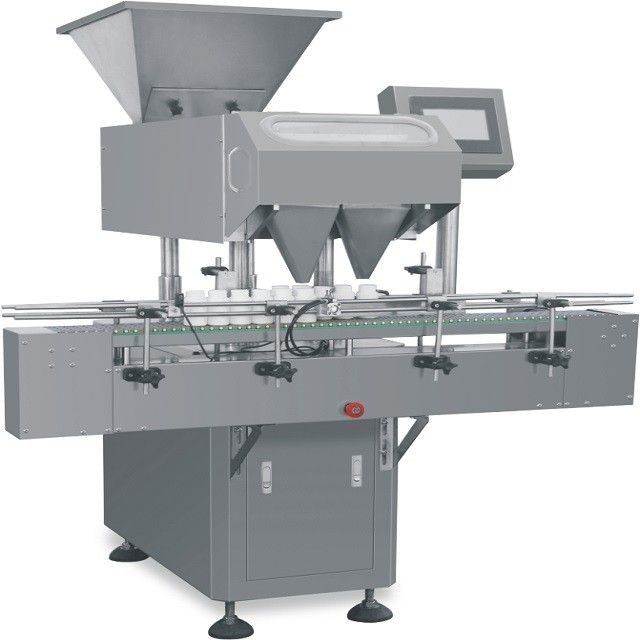

Medical Machinery Capsule Counting Machine Capsule Filling Machine
Introduction of capsule pill tablet counting machine:
Electronic counting machine can pack all kinds of tablets and capsules (transparent or opaque hard capsules, soft capsules, pills, etc.)In addition, the tablet counting machinery is very convenient to combine the LOGO control line with the pneumatic component and frequency converter and adjust the control very conveniently.
Features of electrical capsule tablet counting machine:
1.The quality of the tablet capsule counting machine is reliable.The machine adopts stainless steel 304, material contact part uses stainless steel 316 material.
2.For easy clogging and special feeding varieties can be customized according to actual needs.(optional)
3.Counting tablet capsule machine has high intelligence.With the bottle, materials, all kinds of online fault monitoring function, and automatic alarm.
4.The tablet counting machine has good stability.Using the electronic counting technology of high dust resistance, the pill capsule tablet counting machine can still operate normally in high dust environment.
5.Counting machine owns strong compatibility, wide scope of application.All kinds of tablets, capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) can be counted and canned.
|Production capacity||40-150 bottles/min|
|Accurate rate||＞ 99.5%|
|Applicable material||Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules|
|Loading Capacity for Per Bottle||2~9999 pcs|
|Applicable Bottle||10~500 ML round and square plastic bottle|
|Total Power||2.5 kW|
|Air Pressure||0.6 MPa|
|Gas Consumption||45-60 L/min|
Conveyor speed can be adjusted according to packing capacity.
