2200*1400*1680mm Electronic Counting Machine Simple Operation

2200*1400*1680mm Electronic Counting Machine Simple Operation

  • 2200*1400*1680mm Electronic Counting Machine Simple Operation
2200*1400*1680mm Electronic Counting Machine Simple Operation
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: RQ-DSL-48B
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $46000-51000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: China Wholesale Simple Operation Table Top Tablet Counting Machine Production Capacity: 40-150 Bottles/min
Accuracy Rate: >99.5% Applicable Target: 00-5 Capsule, Soft Capsule, Ø 5.5-20 Tablet,shaped,sugarcoated Tablet And Ø3-20 Pill
Filling Range: 2-9999 Grains (tablets) Adjustable Applicable Bottle Type: 10-500ml Round, Square Bottle
Voltage: 380/220V 50Hz Power: 2.5 KW
Pressure: 0.6Mpa Net Weight: 580 Kg
Outline Dim.(mm): 2200*1400*1680mm
High Light:

tablet capsule counting machine

,

automatic capsule counting machine

China Wholesale Simple Operation Table Top Tablet Counting Machine

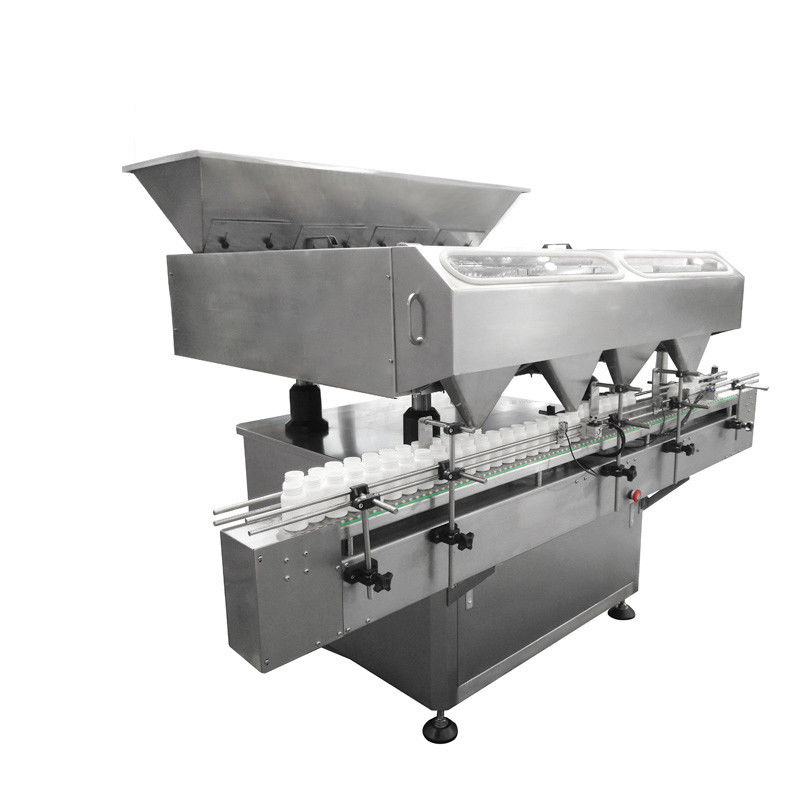

Introduction of capsule pill tablet counting machine:

This tablet capsule counting machine is a new generation of high speed grain machine.In addition, the tablet counting machinery is very convenient to combine the LOGO control line with the pneumatic component and frequency converter and adjust the control very conveniently.

Features of electrical capsule tablet counting machine:

1. low running cost of the pharmacy counting machine .High cost-performance products, low cost of use and maintenance, the original machine configuration for one year of easy-to-wear parts.
2. For easy clogging and special feeding varieties can be customized according to actual needs.(optional)
3. The quality of the tablet capsule counting machine is reliable.The machine adopts stainless steel 304, material contact part uses stainless steel 316 material.

4. Host uses frequency conversion speed regulation can be soft start speed regulation sensitive, reliable and stable, and can bear large start-up torque.
5. The bottle conveyor is a conveyor belt type, for customers late connection reserved interface can be quickly connected to the auxiliary equipment

Production capacity 40-150 bottles/min
Accurate rate > 99.5%
Applicable material Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules
Loading Capacity for Per Bottle 2~9999 pcs
Applicable Bottle 10~500 ML round and square plastic bottle
Power 220V 50Hz
Total Power 2.5 kW
Air Pressure 0.6 MPa
Gas Consumption 45-60 L/min
Weight 580 kg
Overall Size 2200*1400*1680mm

2200*1400*1680mm Electronic Counting Machine Simple Operation 02200*1400*1680mm Electronic Counting Machine Simple Operation 1

Bottle block cylinder, make sure accurate stop position of the bottle.
