|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||5-10 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||17 pcs/month|
|Name:||Fully Automatic Tablet Capsule Counting Machine||Production Capacity:||55-120 Bottles/min|
|Accuracy Rate:||＞99.98%||Applicable Target:||00-5 Capsule, Soft Capsule, Ø 5.5-20 Tablet,shaped,sugarcoated Tablet And Ø3-20 Pill|
|Filling Range:||2-9999 Grains (tablets) Adjustable||Applicable Bottle Type:||10-500ml Round, Square Bottle|
|Voltage:||380/220V 50Hz||Power:||2.5 KW|
|Net Weight:||580 Kg||Outline Dim.(mm):||2200*1400*1680mm|
electronic tablet counting machine,
tablet capsule counting machine

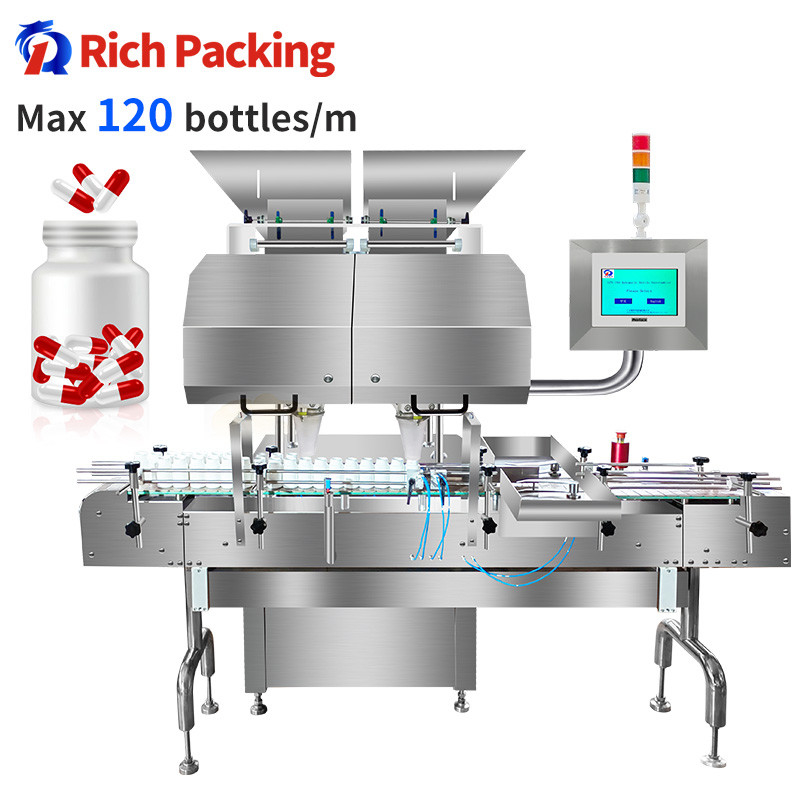

220V 50Hz Electronic Pill Counter, Fully Automatic Tablet Counting Machine
Introduction of capsule pill tablet counting machine:
The tablet capsule counting is patent capsule intelligent high precision automatic capsule capsule counting machine, model counting device can automatically achieve any number (odd, even, a precise number of tablets) bottle filling work. The structure of small size low noise and smooth operation, small and medium-sized pharmaceutical companies, health care products factory, hospital preparation room, the ideal number of grain automatic bottling equipment.
Features of electrical capsule tablet counting machine:
1. Counting machine owns strong compatibility, wide scope of application.All kinds of tablets, capsules (transparent or opaque hard capsules, soft capsules, pills, etc.) can be counted and canned.
2. Counting machine has multistage vibration design.Large size, irregular, high viscosity materials can be effectively separated, accurate count.
3. Counting tablet capsule machine has high intelligence.With the bottle, materials, all kinds of online fault monitoring function, and automatic alarm.
4. The bottle conveyor is a conveyor belt type, for customers late connection reserved interface can be quickly connected to the auxiliary equipment
5. Control the use of touch screen man-machine interface PLC programmable controller technology can quickly set various parameters.
|Production capacity||40-150 bottles/min|
|Accurate rate||＞ 99.5%|
|Applicable material||Φ5.5~20mm tablets,Φ3~20mm pills, 00~5# hard and soft capsules|
|Loading Capacity for Per Bottle||2~9999 pcs|
|Applicable Bottle||10~500 ML round and square plastic bottle|
|Total Power||2.5 kW|
|Air Pressure||0.6 MPa|
|Gas Consumption||45-60 L/min|
