Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine

Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine

  • Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine
  • Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine
  • Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine
Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: RQ-ZH-12OW
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $29000-36000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Liquid Condom Box Ampoule Boxing Automatic Cartoning Machine Speed: 30-125 Carton/min
Total Power: 0.750 KW Size Range Of Carton: L(70-185)*W(35-90)*H(14-50)mm
Range Of Folding Times Of Instructions: 1-4 Fold Power Supply: 220/380V 50Hz
Size Range Of Instructions: L(78-250)*W(90-170)mm Instructions Weight: 60-70g/㎡
Net Weight Of Machine: 1600kg Pressure Intensity: ≥0.6MPa
Air Consumption: 120-160 L/min Overall Size Of Machine: 3100*1100*1550㎜
Carton Weight: 250-350g/㎡
High Light:

auto cartoner machine

,

cartonator packing machine



Liquid Condom Box Ampoule Boxing Automatic Cartoning Machine



Model RQ-ZH-12OW
Speed 30-125 carton/min
Total power 0.750 KW
Power supply 220/380V 50Hz
Requirements of carton size range of carton:L(70-185)*W(35-90)*H(14-50)mm
  carton weight:250-350g/㎡
Requirements of instructions size range of instructions:L(78-250)*W(90-170)mm
  range of folding times of instructions:1-4 fold
  instructions weight:60-70g/㎡
Pressure pressure intensity:≥0.6MPa
  air consumption:120-160 L/min
Overall size of machine 3100*1100*1550㎜
Net weight of machine about 1600kg



Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine 0

Product details:

Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine 1

Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine 2
Factory workshop:

Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine 3

Our client:

Liquid Condom Box Auto Cartoner Machine , 0.75KW Ampoule Packing Machine 4

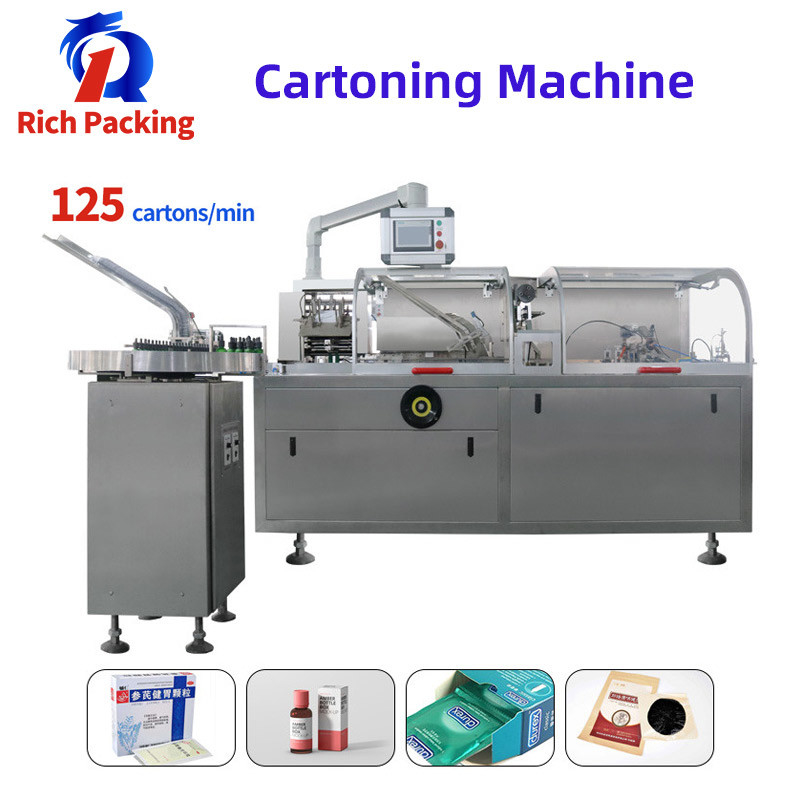

Introduction of cartoning machine:

Automatic Horizontal cartoning packing machine can packed various products such as aluminum plastic plate and aluminum aluminum plate, electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products.The cartoning machine is a kind of packaging machinery, which includes automatic cartoning machine, medicinal cartoning machine and so on. The automatic cartoning machine automatically loads bottles, tablets, ointments and instructions into folding cartons and completes the capping action.

Features of cartoning box packing machine:

1.The cartoning packing machine equip with intelligence is highly,the accuracy of loading is 99.8%.Inspection points are densely distributed in various workstation, such as feeding device, quantity inspection , packaging into conveyer belt inspection, number of packages inspection, carton in place inspection and etc.

2.Three inspection were carried out in the packaging process of the products and instructions, and 100% of the unqualified products were rejected.
3.The feeding part of horizontal cartoning packing machine adopts double servo motor,speed up to 120 carton/min,compared with single servo motor,it has fast speed and stable operation.

4.When the cartoning machine breaks down,the specific situation can be check on the PLC ,convenient to maintenance and repair.
5.The automatic horizontal cartoning packing machine produced by Guangdong Rich Packing Co.,Ltd has stable performance and is suitable for 24 hours operation.
