|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||Automatic Cartoning Packing Machine For Tablet Capsule Blister Card||Speed:||35-125 Carton/min|
|Total Power:||1.10 KW||Size Range Of Carton:||L(65-150)*W(35-85)*H(12-45)mm|
|Range Of Folding Times Of Instructions:||1-4 Fold||Power Supply:||220/380V 50Hz|
|Carton Weight:||240-360g/㎡||Size Range Of Instructions:||L(78-250)*W(85-170)mm|
|Instructions Weight:||60-70g/㎡||Pressure Intensity:||≥0.6MPa|
|Air Consumption:||120-160 L/min||Overall Size Of Machine:||2150*1140*1800㎜|
|Net Weight Of Machine:||1500kg|
auto cartoner machine,
carton packing machine

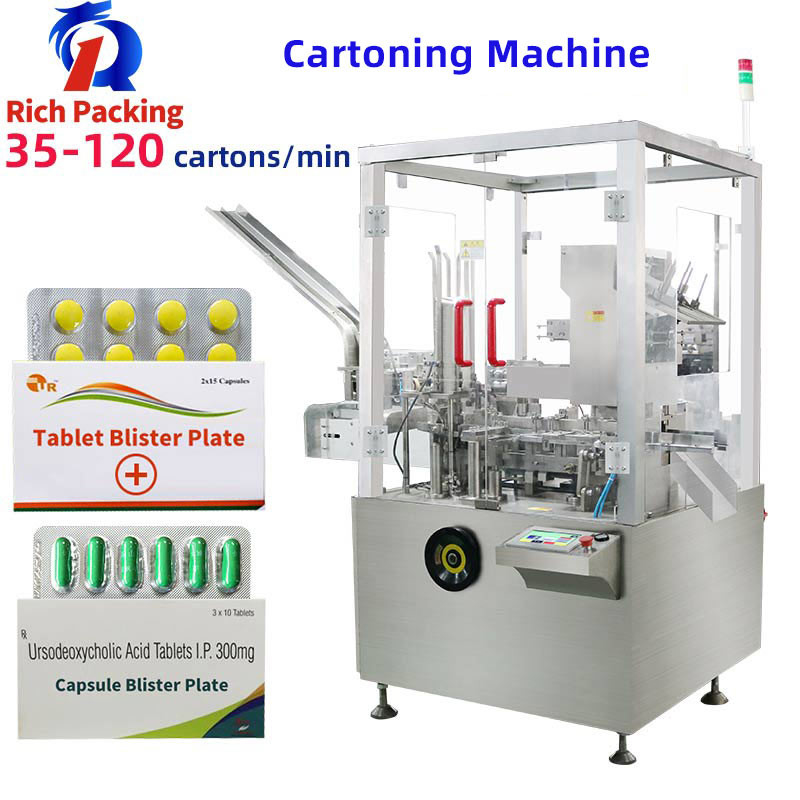

Automatic Cartoning Packing Machine for Tablet Capsule Blister Card
Introduction of cartoning machine:
The cartoning box packing machien is high technology product incorporates pneumatic - photo - electro - mechanic with improves work efficiency and reduces labor cost.This automatic vertical cartoning machine is the preferred products for small and medium sized production in pharmaceutical manufacturing,chemical industry, electronic products and food industry, it meets the requirements of GMP.
The cartoning machine is a kind of packaging machinery, which includes automatic cartoning machine, medicinal cartoning machine and so on.
Features of cartoning box packing machine:

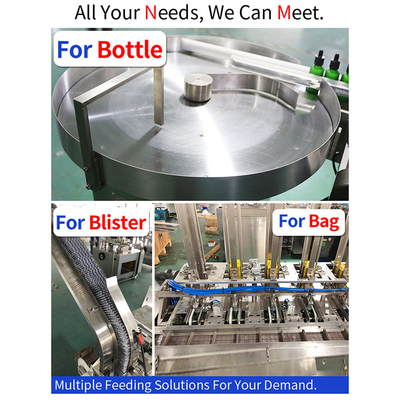

1. Automatic vertical cartoning packing machine can packed various products such as aluminum plastic plate and aluminum aluminum plate, electronic cigarette,facial cleanser,ointment,Sealed pouch various bottled products.
2. All the materials of cartonging machine are made of stainless steel or nickel-chromium plated material, with stable chemical performance, corrosion resistance, non-toxicity and harmlessness. The welding position of cartoning machine is
tempered and durable.
3. The cartoning box packing machine accessories adopt well-known brands, such as Siemens, Baker, Omron, etc
4. The automatic vertical cartoning packing machine produced by Guangdong Rich Packing Machinery Co.,Ltd has stable performance and is suitable for 24 hours operation.
|Total power||1.10 KW|
|Power supply||220/380V 50Hz|
|Requirements of carton||size range of carton:L(65-150)*W(35-85)*H(12-45)mm|
|Requirements of instructions||size range of instructions:L(78-250)*W(85-170)mm|
|range of folding times of instructions:1-4 fold|
|air consumption:120-160 L/min|
|Overall size of machine||2150*1140*1800㎜|
|Net weight of machine||about 1500kg|
