Easy Using Automatic Cartoning Machine Vertical Type Convenient Maintenance

Easy Using Automatic Cartoning Machine Vertical Type Convenient Maintenance

  • Easy Using Automatic Cartoning Machine Vertical Type Convenient Maintenance
Easy Using Automatic Cartoning Machine Vertical Type Convenient Maintenance
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: RQ-ZHL-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $27000-32000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Auto Carton Box Packing Machine Vertical Type Condom Cream Soap Bar Encasing Machine From Wholesalers Auto Car Speed: 35-125 Carton/min
Total Power: 1.10 KW Size Range Of Carton: L(65-150)*W(35-85)*H(12-45)mm
Range Of Folding Times Of Instructions: 1-4 Fold Power Supply: 220/380V 50Hz
Carton Weight: 240-360g/㎡ Size Range Of Instructions: L(78-250)*W(85-170)mm
Instructions Weight: 60-70g/㎡ Pressure Intensity: ≥0.6MPa
Air Consumption: 120-160 L/min Overall Size Of Machine: 2150*1140*1800㎜
Net Weight Of Machine: 1500kg
Highlight:

auto cartoner machine

,

carton packing machine

Auto Carton Box Packing Machine Vertical Type Condom Cream Soap Bar Encasing Machine from Wholesalers Auto Car​

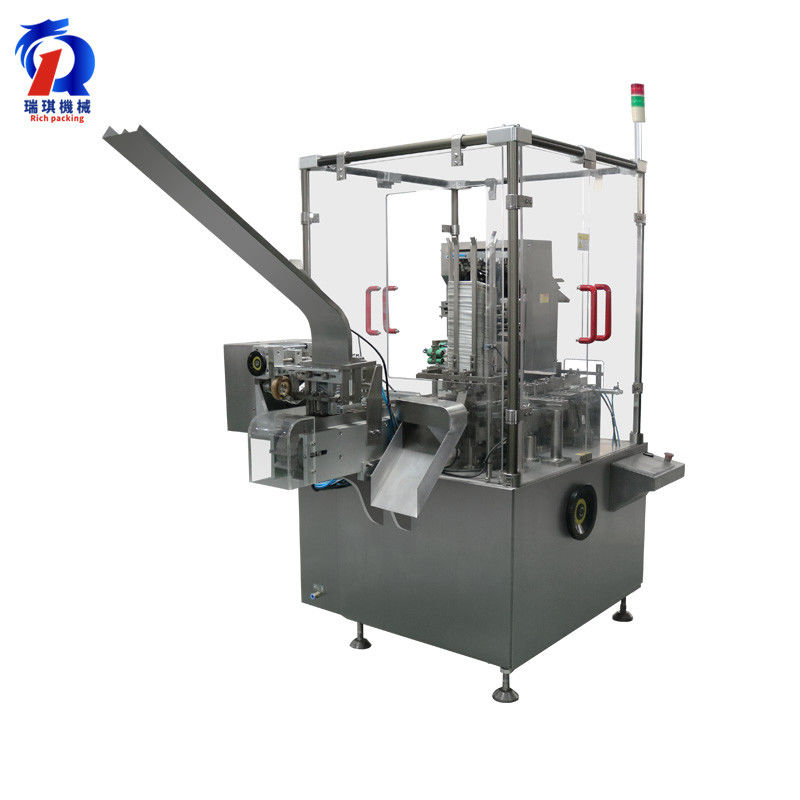

Introduction of cartoning machine:

The automatic cartoning packing machine manufactured by Guangdong Rich Packing Machinery Co.,Ltd has strong compatibility and can pack products of various specifications on one machine.The cartoning box packaging machine has high degree of automation,from feeding,suction carton,forming,on line transmission,folding of leaflet(1-4 folds),material testing,products and leaflet pushing into carton,printing batch number,with top fold flaps,carton sealing(mechanical sealing or hot melt glue),lack of material detection and rejection all automatically completed.
The cartoning box packing machien is high technology product incorporates pneumatic - photo - electro - mechanic with improves work efficiency and reduces labor cost.





Features of cartoning box packing machine:



1. The cartoning box packing machine accessories adopt well-known brands, such as Siemens, Baker, Omron, etc
2. The automatic vertical cartoning packing machine produced by Guangdong Rich Packing Machinery Co.,Ltd has stable performance and is suitable for 24 hours operation.
3. When the cartoning packing machine breaks down,the specific situation can be check on the PLC ,convenient to maintenance and repair.
4. The automatic cartoning box packing mchines equip spare part are engraved with codes,convenient customer to daily maintenance and repair.
5. Cartoning packing machine has high integration,this automatic vertical cartoning packing machine can be connected with tail sealing machine,aluminum plastic blister packing machine,strapping machine according to customers’ production

requirements.
6. This cartoning packing machine covers an area of about 3㎡ and is easy to handle and use.



Model RQ-ZHL-12OL
Speed 35-125 carton/min
Total power 1.10 KW
Power supply 220/380V 50Hz
Requirements of carton size range of carton:L(65-150)*W(35-85)*H(12-45)mm
  carton weight:240-360g/㎡
Requirements of instructions size range of instructions:L(78-250)*W(85-170)mm
  range of folding times of instructions:1-4 fold
  instructions weight:60-70g/㎡
Pressure pressure intensity:≥0.6MPa
  air consumption:120-160 L/min
Overall size of machine 2150*1140*1800㎜
Net weight of machine about 1500kg

Easy Using Automatic Cartoning Machine Vertical Type Convenient Maintenance 0



Easy Using Automatic Cartoning Machine Vertical Type Convenient Maintenance 1

Dual clutch design, when the main motor overload or folding machine failure, start protection function to ensure the safety of equipment and personnel.
