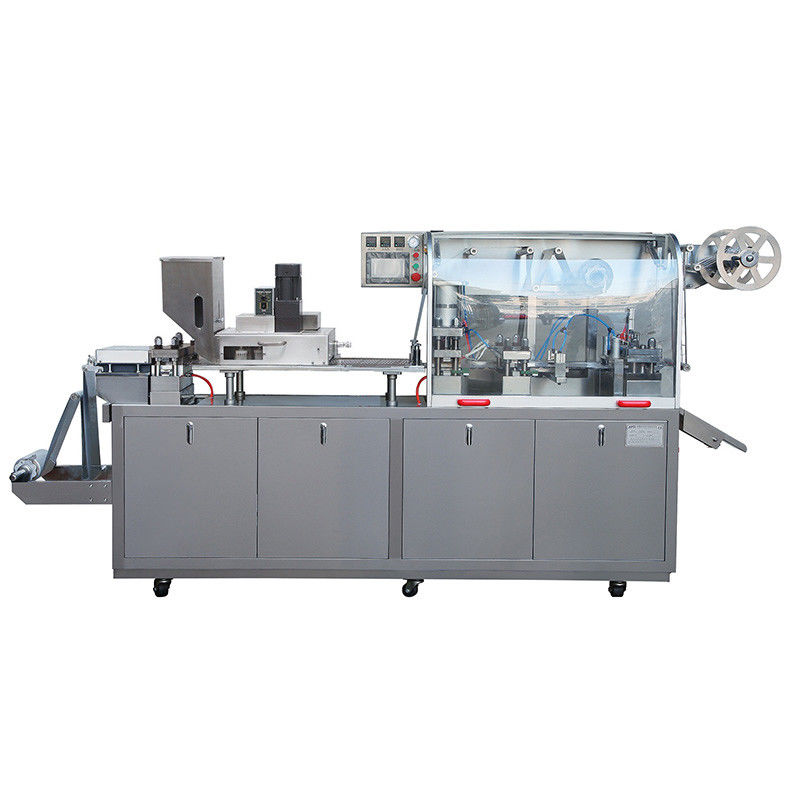

Alu Alu Automatic Blister Packing Machine CE Standard For Health Medicine Factory

Alu Alu Automatic Blister Packing Machine CE Standard For Health Medicine Factory

  • Alu Alu Automatic Blister Packing Machine CE Standard For Health Medicine Factory
Alu Alu Automatic Blister Packing Machine CE Standard For Health Medicine Factory
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: DPP-250
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $15900-18000/pc
Packaging Details: Standard export wooden case (2750*950*1800mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Alu Alu Automatic Blister Packing Machine CE Standard For Health Medicine Factory Max. Shaping Dia. And Depth: 240*170*15mm Max. Depth 26mm(custom-made)
Blanking: 6~50times/min Standard Travel Range: 40~160mm
Standard Plate: 80*57mm Power Of Main Motor: 1.5kW
Total Power: 6.2kW Power: 380V/220V/50Hz
Vacuum: 0.4MPa-0.6MPa Noise: <75dBA
Thickness And Width Of PVC: 0.15~0.5*250mm Thickness And Width Of PTP: 0.02~0.035*250mm
Dialyzing Paper: 50~100g*250mm Weight: 1300 Kg
Size: 3000*730*1600 Mm
High Light:

pharmaceutical blister packaging machines

,

pill blister pack machine

Alu Alu Automatic Blister Packing Machine CE Standard For Health Medicine Factory



Brief introduction:

Aluminum plastic blister packaging machine is specially designed and manufactured for small pharmaceutical factories, health products factories, food factories, hospital preparation rooms, etc. Aluminum-plastic blister packaging machine is mainly used for packaging solid drugs and foods such as capsules, tablets, capsules, suppositories, milk tablets, candies, etc.·

Features:

1.With the pressing & air forming device and the mechanical punch, the blister shapes are homogeneous and strong, and the blister packaging machine is specially used for the packing of big honey pill or medical machinery, etc
2.The helical-gear reducing box with parallel shaft is adopted for the main transmission part, the pin positioning is adopted for the dies of forming, thermal sealing and the impressing, the pressing plate is tight, the positioning is accurate, and the alu/ pvc automatic blister packing machine is convenient to change dies.
3.The blister packing machine is specially designed for hospital dosage room, laboratory institute, health care product, pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc
4.The automatic alu/ pvc blister packing machine is suitable for the Alu-PVC package of medicine, food, electric parts etc.
5.This blister packing machine has 12 months warranty and technical support is available .
6.Any alu/pvc blister packing machine of Guangdong Rich Packing Machinery Co. Ltd. could be customized depend on your product.
7.We have professional team with experienced technician of blister packing machine to serve abroad and do the best after service to assure the blister packing machine whole life usage.
8.The blister packaging machine is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.



Model DPP-250
Blanking 6~50times/min
Production Capacity 3.5~23 plates/h
Max. Shaping Dia. And Depth 240*170*15mm Max. Depth 26mm(custom-made)
Standard Travel Range 40~160mm
Standard Plate 80*57mm
Power ofMain Motor 1.5kW
Total Power 6.2kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
gas consumption ≥0.3m3/min
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*250mm
Thickness and Width of PTP 0.02~0.035*250mm
Dialyzing Paper 50~100g*250mm
Mold Cooling Runing water or circulating water
Weight Net weight1300kg ;Gross weight1400kg
Overall Size of Machine 3000*730*1600 mm
Packing Size 2750*950*1800mm



Alu Alu Automatic Blister Packing Machine CE Standard For Health Medicine Factory 0
