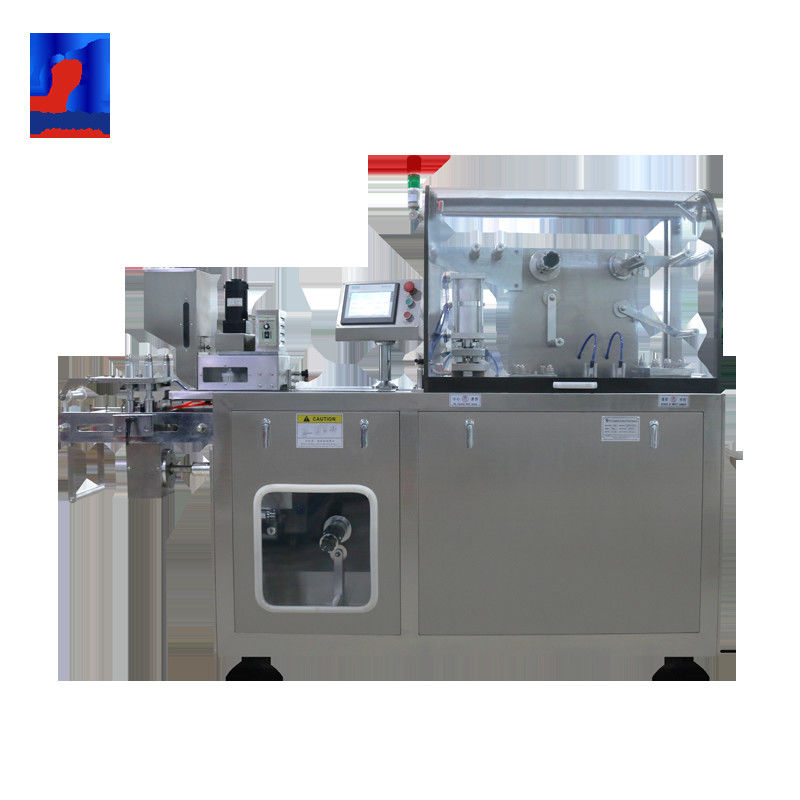

Low Noise Blister Packaging Equipment 1200-4200 Plates / H Production Capacity

Low Noise Blister Packaging Equipment 1200-4200 Plates / H Production Capacity

  • Low Noise Blister Packaging Equipment 1200-4200 Plates / H Production Capacity
Low Noise Blister Packaging Equipment 1200-4200 Plates / H Production Capacity
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: DPP-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $9000-14000/pc
Packaging Details: Standard export wooden case (2750*950*1800mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Alu Alu Rapid Pvc Precision Gears Pill Pharmaceutical Medical Tablet Blister Packaging Machine Supplier Max. Shaping Dia. And Depth: 145*100*15mm Max. Depth 26mm(custom-made)
Blanking: 10~35 Times/min Production Capacity: 4200 Plates/h
Standard Travel Range: 50~120mm Standard Plate: 80*57mm
Power Of Main Motor: 1.5kW Total Power: 3.8kW
Power: 380V/220V/50Hz Vacuum: 0.4MPa-0.6MPa
Noise: <75dBA Thickness And Width Of PVC: 0.15~0.5*120mm
Thickness And Width Of PTP: 0.02~0.035*120mm Dialyzing Paper: 50~100g*120mm
Weight: 850 Kg Size: 2300*635*1500 Mm
High Light:

pill blister pack machine

,

tablet blister packing machine

Alu Alu Rapid pvc Precision Gears Pill Pharmaceutical Medical Tablet Blister Packaging Machine Supplier



Brief introduction of blister packaging machine:

Aluminum plastic blister packaging machine is a dual-purpose machine with adjustable stroke, photo-electric plate, modular working position structure, aluminum-plastic and aluminum-aluminum, the blister packing machine adopts the integrated automatic control technology of frequency conversion and machine, electricity, light and speed and strictly conforms to the GMP standard of medicine.



Model DPP-150
Blanking 10~35 times/min
Production Capacity 1200-4200 plates/h
Max. Shaping Dia. And Depth 145*100*15mm Max. Depth 26mm(custom-made)
Standard Travel Range 50~120mm
Standard Plate 80*57mm
Power ofMain Motor 1.5kW
Total Power 3.8kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*150mm
Thickness and Width of PTP 0.02~0.035*150mm
Dialyzing Paper 50~100g*150mm
Mold Cooling Running water or circulating water
Weight Net weight 850 kg ;Gross weight1400 kg
Overall Size of Machine 2300*635*1500 mm
Packing Size 2750*950*1800mm

The blister packing machine data comes from Guangdong Rich Packaging Machinery Co., Ltd



Low Noise Blister Packaging Equipment 1200-4200 Plates / H Production Capacity 0

Feactures of blister packaging machine

1.This blister packing machine is widely used for the aluminum-plastic / paper-plastic / aluminum-aluminum sealing & packing of capsules, tablets, honey pills, candies, disposable syringes or irregular products in industries of pharmaceutical, food, health care and medical machinery, etc.

2.There are double oscillating rods in the manipulator, the puling travel's range is increased to 180mm, so the blister package machine with all kinds of size can be satisfied.
3.Operations of blister sheet correcting & heating, the pressing & forming, the face/back surface pattern impressing, the cylinder's thermal sealing, the automatic feeding, the automatic batch No. printing and automatic cutting can all be completed by this machine, and the automatic blister packing machine is easy and reliable to operate.

4.Spare parts of blister packing machine as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and the blister packing machine is easy to change moulds.
5.With manipulator towing and adjustable travel range, this blister packing machinery can be suited for blister packing of various size.
