Pharmaceutical Cosmetic Blister Packing Machine With Long Service Life

Pharmaceutical Cosmetic Blister Packing Machine With Long Service Life

  • Pharmaceutical Cosmetic Blister Packing Machine With Long Service Life
Pharmaceutical Cosmetic Blister Packing Machine With Long Service Life
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: DPP-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $9000-14000/pc
Packaging Details: Standard export wooden case (2750*950*1800mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Alu / Pvc Alu / Alu Pharmaceutical Cosmetic Blister Packing Machine Blanking: 10~35 Times/min
Production Capacity: 4200 Plates/h Standard Travel Range: 50~120mm
Standard Plate: 80*57mm Power Of Main Motor: 1.5kW
Total Power: 3.8kW Power: 380V/220V/50Hz
Vacuum: 0.4MPa-0.6MPa Noise: <75dBA
Thickness And Width Of PVC: 0.15~0.5*120mm Thickness And Width Of PTP: 0.02~0.035*120mm
Dialyzing Paper: 50~100g*120mm Weight: 850 Kg
Size: 2300*635*1500 Mm
High Light:

pill blister pack machine

,

tablet blister packing machine

Alu / pvc Alu / Alu Pharmaceutical Cosmetic Blister Packing Machine



Features:

1.This automatic alu/pvc blister packing machine is newly developed and innovated by our company, and technology of blister packing machine is advanced in China by now.

2.The blister packing machine is the preferred machine possessing fully automatic shaping,adding,sealing and blanking, the automatic blister packing machine is the preferred products for small and medium sized production in pharmaceutical manufacturing,chemical industry, electronicproductsand food industry, the blister packaging machinery meets the requirements of GMP.

3.There are double oscillating rods in the manipulator, the puling travel's range is increased to 180mm, so the blister package machine with all kinds of size can be satisfied.

4.With the pressing & air forming device and the mechanical punch, the blister shapes are homogeneous and strong, and the blister packaging machine is specially used for the packing of big honey pill or medical machinery, etc

5.The blister packing machine is specially designed for hospital dosage room, laboratory institute, health care product, pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc

6.We have professional team with experienced technician of blister packing machine to serve abroad and do the best after service to assure the blister packing machine whole life usage.



Model DPP-150
Blanking 10~35 times/min
Production Capacity 1200-4200 plates/h
Max. Shaping Dia. And Depth 145*100*15mm Max. Depth 26mm(custom-made)
Standard Travel Range 50~120mm
Standard Plate 80*57mm
Power ofMain Motor 1.5kW
Total Power 3.8kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*150mm
Thickness and Width of PTP 0.02~0.035*150mm
Dialyzing Paper 50~100g*150mm
Mold Cooling Running water or circulating water
Weight Net weight 850 kg ;Gross weight1400 kg

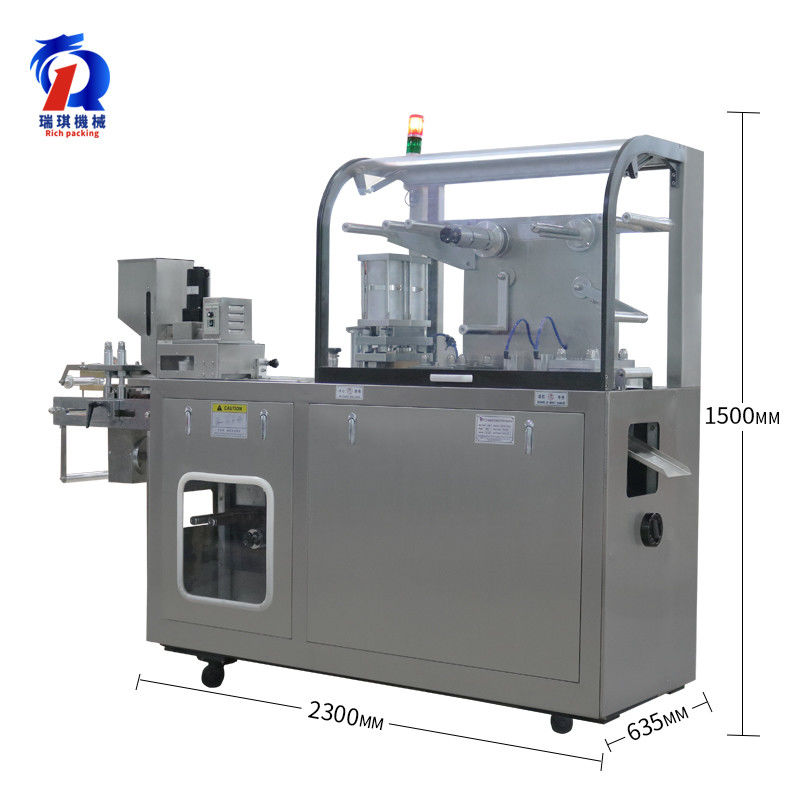

Overall Size of Machine 2300*635*1500 mm
Packing Size 2750*950*1800mm

The data comes from Guangdong Rich Packaging Machinery Co., Ltd
