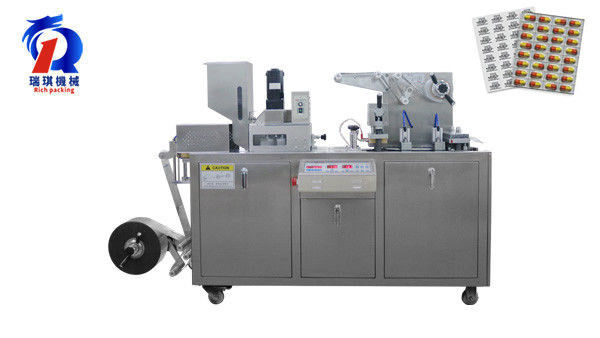

380V/220V/50Hz Blister Packing Machine With 12 Months Warranty

380V/220V/50Hz Blister Packing Machine With 12 Months Warranty

  • 380V/220V/50Hz Blister Packing Machine With 12 Months Warranty
380V/220V/50Hz Blister Packing Machine With 12 Months Warranty
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: DPP-120
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $4900-5900/pc
Packaging Details: Standard export wooden case (1600*750*1200mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Packaging Machine Mini Blister Packing Machine For Different Pill Max. Shaping Dia. And Depth: 125*80*15mm Max. Depth 25mm(custom-made)
Blanking: 10~33 Times/min Production Capacity: 2400 Plates/h
Standard Travel Range: 30~80mm Standard Plate: 80*57mm
Power Of Main Motor: 0.75kW Total Power: 2.4kW
Power: 380V/220V/50Hz Vacuum: 0.4MPa-0.6MPa
Noise: <75dBA Thickness And Width Of PVC: 0.15~0.5*120mm
Thickness And Width Of PTP: 0.02~0.035*120mm Dialyzing Paper: 50~100g*120mm
Weight: 590 Kg Size: 1830*580*1050 Mm
Highlight:

pharmaceutical blister packaging machines

,

tablet blister packing machine

Packaging Machine Mini Blister Packing Machine for Different Pill



Brief introduction:

The blister package is widely used in pharmaceutical, food, healthcare, medical equipment and other industries capsules, tablets aluminum, honey pills, candy, disposable syringes or irregular product / paper and plastic / aluminum packaging.

Features:

1.The helical-gear reducing box with parallel shaft is adopted for the main transmission part, the pin positioning is adopted for the dies of forming, thermal sealing and the impressing, the pressing plate is tight, the positioning is accurate, and the alu/ pvc automatic blister packing machine is convenient to change dies.
2.The blister packing machine is specially designed for hospital dosage room, laboratory institute, health care product, pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc
3.The automatic alu/ pvc blister packing machine is suitable for the Alu-PVC package of medicine, food, electric parts etc.
4.This blister packing machine has 12 months warranty and technical support is available .
5.Any alu/pvc blister packing machine of Guangdong Rich Packing Machinery Co. Ltd. could be customized depend on your product.
6.We have professional team with experienced technician of blister packing machine to serve abroad and do the best after service to assure the blister packing machine whole life usage.
7.The blister packaging machine is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.



Model DPP-120
Blanking 10~33 times/min
Production Capacity 2400 plates/h
Max. Shaping Dia. And Depth 125*80*15mm Max. Depth 25mm(custom-made)
Standard Travel Range 30~80mm
Standard Plate 80*57mm
Power of Main Motor 0.75kW
Total Power 2.4kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*120mm
Thickness and Width of PTP 0.02~0.035*120mm
Dialyzing Paper 50~100g*120mm
Mold Cooling Runing water or circulating water
Weight Net weight 590 kg ;Gross weight 650 kg
Overall Size of Machine 1830*580*1050 mm
Packing Size 1600*750*1200mm

380V/220V/50Hz Blister Packing Machine With 12 Months Warranty 0



380V/220V/50Hz Blister Packing Machine With 12 Months Warranty 1

Proximity switch: Molding, traction, positioning module using proximity switch control instead of pneumatic control, higher accuracy, longer service life.

380V/220V/50Hz Blister Packing Machine With 12 Months Warranty 2

Mould: Molding die aluminum alloy material, good heat absorption, easy polishing, mold smooth and smooth, easy to form. Hot sealing die using stainless iron, high hardness, no rust, stamping die chlorine 12 molybdenum vanadium
