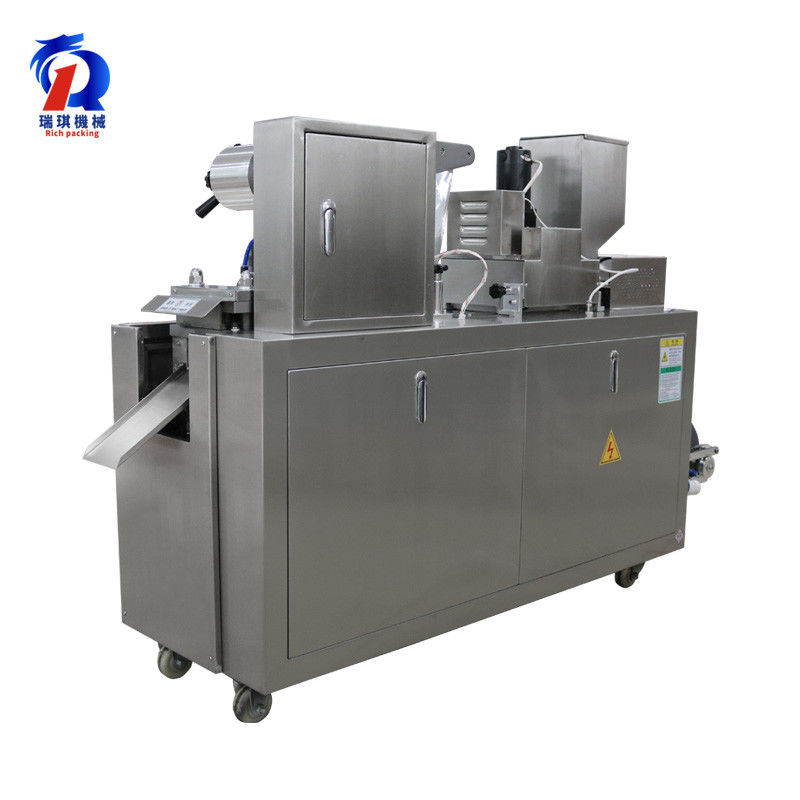

Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine

Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine

  • Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine
Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: DPP-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $4200-5350/pc
Packaging Details: Standard export wooden case (1600*750*1200mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Small Alu Alu Pill Blister Packing Machine For Pharmaceutical Use Blanking: 10~40 Times/min
Production Capacity: 2400 Plates/h Power: 380V/220V/50Hz
Standard Travel Range: 30~80mm Standard Plate: 80*57mm
Power Of Main Motor: 0.75kW Thickness And Width Of PTP: 0.02~0.035*120mm
Total Power: 2.4kW Vacuum: 0.4MPa-0.6MPa
Dialyzing Paper: 50~100g*120mm Thickness And Width Of PVC: 0.15~0.5*120mm
Weight: 415 Kg Size: 1830*580*1050 Mm
High Light:

pill blister pack machine

,

tablet blister packing machine

Small Alu Alu Pill Blister Packing Machine For Pharmaceutical Use



Brief introduction

This bliste packing machine is newly developed and innovated by Guangdong Rich Packing Machinery Co. Ltd. , and the blister pack machinery  technology is advanced in China by now. This packaging machine is widely used for the aluminum-plastic/ paper-plastic/ aluminum-aluminum sealing & packing of capsules, tablets, honey pills, candies, disposable syringes or irregular products in industries of pharmaceutical, food, health care and medical machinery, etc.







Model DPP-80
Blanking 10~40 times/min
Production Capacity 2400 plates/h
Max. Shaping Dia. And Depth 70*110*15mm Max. Depth 25mm(custom-made)
Standard Travel Range 30~80mm
Standard Plate 80*57mm
Power of Main Motor 0.75kW
Total Power 2.4kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*120mm
Thickness and Width of PTP 0.02~0.035*120mm
Dialyzing Paper 50~100g*120mm
Mold Cooling Running water or circulating water
Weight Net weight 415 kg ;Gross weight465 kg
Overall Size of Machine 1830*580*1050 mm
Packing Size 1600*750*1200mm

Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine 0

Proximity switch: Molding, traction, positioning module using proximity switch control instead of pneumatic control, higher accuracy, longer service life.

Small Capsule Blister Packing Machine , 0.75kW Alu Alu Packing Machine 1

Forming device: Accurate positioning of mould, uniform size distribution of molding module, symmetry and accuracy





Features of capsule blister packing machine:

1. The travel scope is adjustable, and the mold is located in the groove for easy mold changing.
2. Automatic feeding system of pharmacy blister pack machinery, and the mold and feeder can be designed based on different products.
3. The automatic blister packing machine can use easy tearing line pressing device, batch printing device and waste collecting device.

4.The automatic alu/ pvc blister packing machine is suitable for the Alu-PVC package of medicine, food, electric parts etc.
5.This blister packing machine has 12 months warranty and technical support is available .
6.Any alu/pvc blister packing machine of Guangdong Rich Packing Machinery Co. Ltd. could be customized depend on your product.
