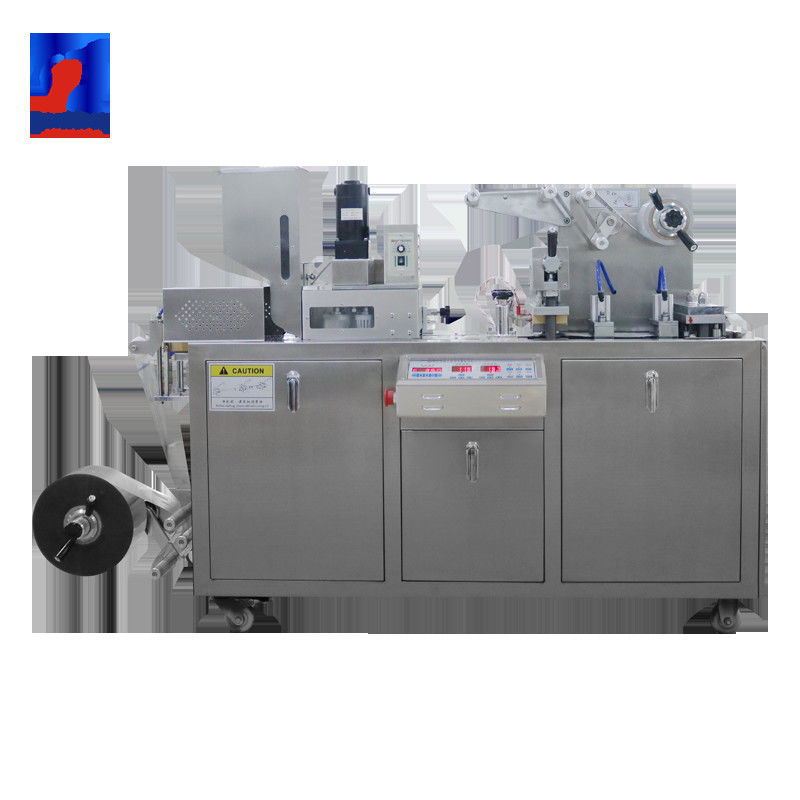

1830*580*1050 Mm Blister Packing Machine Easy Operation With Multi Function

1830*580*1050 Mm Blister Packing Machine Easy Operation With Multi Function

  • 1830*580*1050 Mm Blister Packing Machine Easy Operation With Multi Function
1830*580*1050 Mm Blister Packing Machine Easy Operation With Multi Function
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: DPP-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $4200-5350/pc
Packaging Details: Standard export wooden case (1600*750*1200mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: DPP80 Lab Automatic Alu Pvc Blister Packing Machine Price In China Power: 380V/220V/50Hz
Standard Travel Range: 30~80mm Blanking: 10~40 Times/min
Production Capacity: 2400 Plates/h Power Of Main Motor: 0.75kW
Standard Plate: 80*57mm Total Power: 2.4kW
Vacuum: 0.4MPa-0.6MPa Thickness And Width Of PVC: 0.15~0.5*120mm
Thickness And Width Of PTP: 0.02~0.035*120mm Dialyzing Paper: 50~100g*120mm
Weight: 415 Kg Size: 1830*580*1050 Mm
High Light:

pharmaceutical blister packaging machines

,

pill blister pack machine

DPP80 Lab Automatic Alu Pvc Blister Packing Machine Price in China

1.Operations of blister sheet correcting & heating, the pressing & forming, the face/back surface pattern impressing, the cylinder's thermal sealing, the automatic feeding, the automatic batch No. printing and automatic cutting can all be completed by this machine, and the automatic blister packing machine is easy and reliable to operate.
2.With the pressing & air forming device and the mechanical punch, the blister shapes are homogeneous and strong, and the blister packaging machine is specially used for the packing of big honey pill or medical machinery, etc
3.The helical-gear reducing box with parallel shaft is adopted for the main transmission part, the pin positioning is adopted for the dies of forming, thermal sealing and the impressing, the pressing plate is tight, the positioning is accurate, and the alu/ pvc automatic blister packing machine is convenient to change dies.
4.The blister packing machine is specially designed for hospital dosage room, laboratory institute, health care product, pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc
5.The automatic alu/ pvc blister packing machine is suitable for the Alu-PVC package of medicine, food, electric parts etc.
6.This blister packing machine has 12 months warranty and technical support is available .
7.Any alu/pvc blister packing machine of Guangdong Rich Packing Machinery Co. Ltd. could be customized depend on your product.
8.We have professional team with experienced technician of blister packing machine to serve abroad and do the best after service to assure the blister packing machine whole life usage.



Model DPP-80
Blanking 10~40 times/min
Production Capacity 2400 plates/h
Max. Shaping Dia. And Depth 70*110*15mm Max. Depth 25mm(custom-made)
Standard Travel Range 30~80mm
Standard Plate 80*57mm
Power of Main Motor 0.75kW
Total Power 2.4kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*120mm
Thickness and Width of PTP 0.02~0.035*120mm
Dialyzing Paper 50~100g*120mm
Mold Cooling Running water or circulating water
Weight Net weight 415 kg ;Gross weight465 kg
Overall Size of Machine 1830*580*1050 mm
Packing Size 1600*750*1200mm



1830*580*1050 Mm Blister Packing Machine Easy Operation With Multi Function 0

1830*580*1050 Mm Blister Packing Machine Easy Operation With Multi Function 1

Forming device:Accurate positioning of mould, uniform size distribution of molding module, symmetry and accuracy
