|Place of Origin:||Guangzhou, China|
|Brand Name:||Rich Packing|
|Certification:||CE ISO SGS|
|Minimum Order Quantity:||1 PC|
|Packaging Details:||Standard export wooden case (1600*750*1200mm)|
|Delivery Time:||20-30 working days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 pcs/month|
|Name:||Blister Packing Machine And Cartoning Packaging Line For Tablet Pill Capsule||Blanking:||10～40 Times/min|
|Production Capacity:||2400 Plates/h||Power:||380V/220V/50Hz|
|Standard Plate:||80*57mm||Standard Travel Range:||30～80mm|
|Total Power:||2.4kW||Power Of Main Motor:||0.75kW|
|Vacuum:||0.4MPa-0.6MPa||Thickness And Width Of PVC:||0.15～0.5*120mm|
|Thickness And Width Of PTP:||0.02～0.035*120mm||Dialyzing Paper:||50～100g*120mm|
|Weight:||415 Kg||Size:||1830*580*1050 Mm|
pill blister pack machine,
tablet blister packing machine

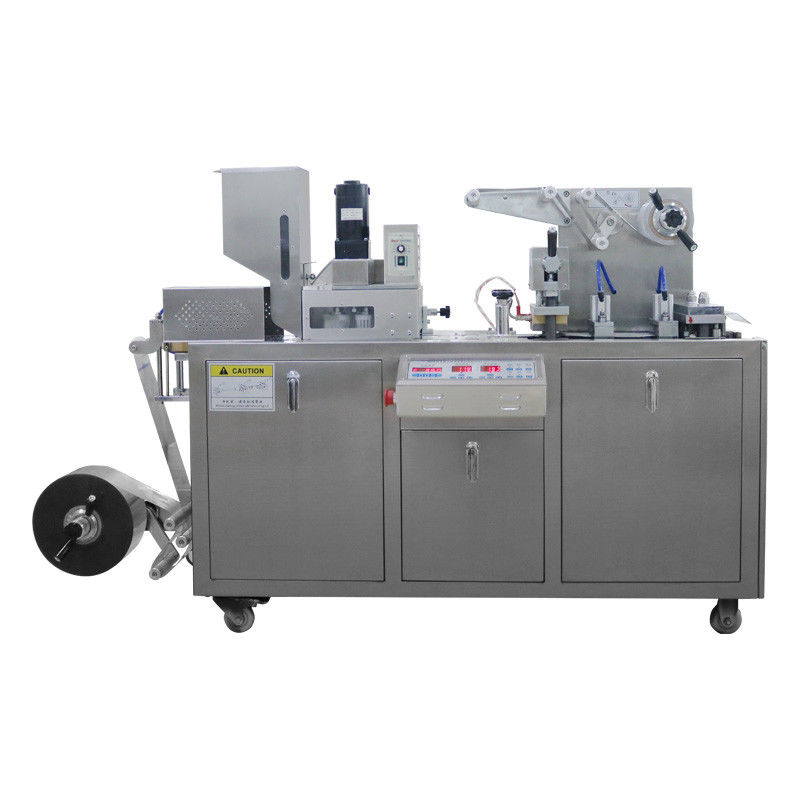

Blister Packing Machine And Cartoning Packaging Line for Tablet Pill Capsule
Features of blister packing machine:
1.The automatic blister packing machinery's spindle locating devices with gear racks are equipped in the devices of forming, thermal sealing, batch No. printing, impressing and cutting, etc, and when the handle is rotated, all these devices can move flexibly in the spindle. There is a ruler of blister packing machine, with which it's convenient to position fast and correctly.
2.There are double oscillating rods in the manipulator, the puling travel's range is increased to 180mm, so the blister package machine with all kinds of size can be satisfied.
3.Operations of blister sheet correcting & heating, the pressing & forming, the face/back surface pattern impressing, the cylinder's thermal sealing, the automatic feeding, the automatic batch No. printing and automatic cutting can all be completed by this machine, and the automatic blister packing machine is easy and reliable to operate.
4.With the pressing & air forming device and the mechanical punch, the blister shapes are homogeneous and strong, and the blister packaging machine is specially used for the packing of big honey pill or medical machinery, etc
5.The helical-gear reducing box with parallel shaft is adopted for the main transmission part, the pin positioning is adopted for the dies of forming, thermal sealing and the impressing, the pressing plate is tight, the positioning is accurate, and the alu/ pvc automatic blister packing machine is convenient to change dies.
6.The blister packing machine is specially designed for hospital dosage room, laboratory institute, health care product, pharmacy factory, and featured by compact machine body, easy operation, multi-function, stroke adjustable, long durability etc
|Production Capacity||2400 plates/h|
|Max. Shaping Dia. And Depth||70*110*15mm Max. Depth 25mm(custom-made)|
|Standard Travel Range||30～80mm|
|Power of Main Motor||0.75kW|
|Thickness and Width of PVC||0.15～0.5*120mm|
|Thickness and Width of PTP||0.02～0.035*120mm|
|Mold Cooling||Running water or circulating water|
|Weight||Net weight 415 kg ;Gross weight465 kg|
|Overall Size of Machine||1830*580*1050 mm|
Punching device:The position of cutting tool can be adjusted before and after cutting, the position of punching is accurate, no cutting mark and material edge are left.
Standard mould: Molding die aluminum alloy material, good heat absorption, easy polishing, mold smooth and smooth, easy to form. Hot sealing die using stainless iron, high hardness, no rust, stamping die chlorine 12 molybdenum vanadium
