| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | DPP-80 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $4200-5350/pc |
| Packaging Details: | Standard export wooden case (1600*750*1200mm) |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | DDP80 Small Aluminum Plastic Tablet Blister Packing Machine / Capsule Blister Packing Machine | Blanking: | 10～40 Times/min |
|---|---|---|---|
| Production Capacity: | 2400 Plates/h | Power: | 380V/220V/50Hz |
| Standard Travel Range: | 30～80mm | Standard Plate: | 80*57mm |
| Power Of Main Motor: | 0.75kW | Total Power: | 2.4kW |
| Thickness And Width Of PVC: | 0.15～0.5*120mm | Vacuum: | 0.4MPa-0.6MPa |
| Thickness And Width Of PTP: | 0.02～0.035*120mm | Weight: | 415 Kg |
| Dialyzing Paper: | 50～100g*120mm | Size: | 1830*580*1050 Mm |
| Highlight: | pharmaceutical blister packaging machines,tablet blister packing machine |
||

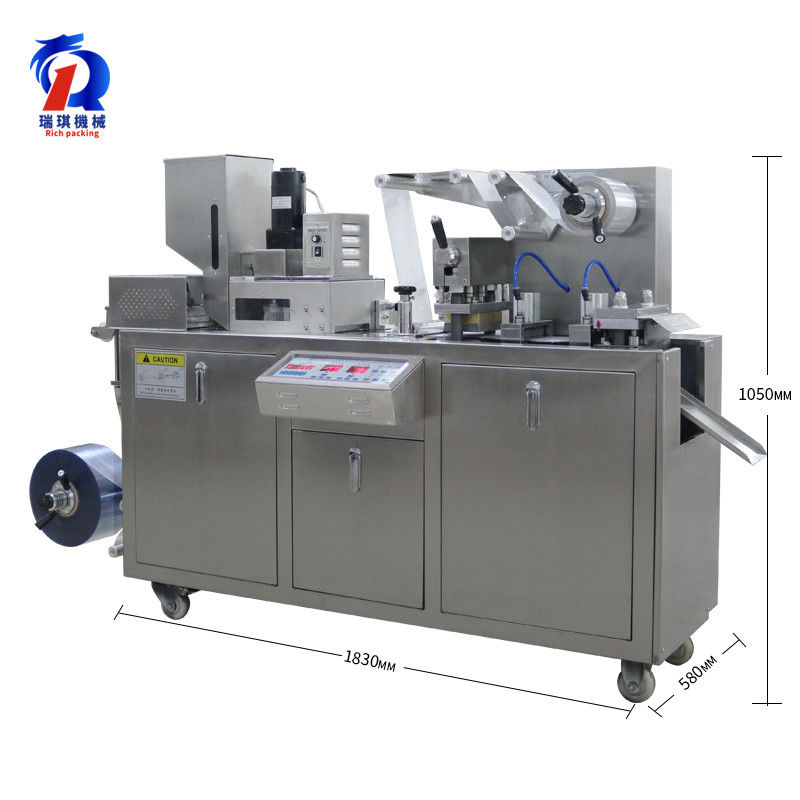

DDP80 Small Aluminum Plastic Tablet Blister Packing Machine / Capsule Blister Packing Machine
Brief introduction
Small capsule blister packaging machine dedicated to small-scale pharmaceutical industry and hospitals. The blister packing machine adopts microcomputer control system, frequency conversion speed regulation, and the automatic capsule blister packaging machnery suitable for ALU PVC, ALU ALU, PVC PAPER material packaging. The blister pack machine meet the GMP standard, easy to operate.
| Model | DPP-80 |
| Blanking | 10～40 times/min |
| Production Capacity | 2400 plates/h |
| Max. Shaping Dia. And Depth | 70*110*15mm Max. Depth 25mm(custom-made) |
| Standard Travel Range | 30～80mm |
| Standard Plate | 80*57mm |
| Power of Main Motor | 0.75kW |
| Total Power | 2.4kW |
| Power | 380V/220V/50Hz |
| Vacuum | 0.4MPa-0.6MPa |
| Noise | <75dBA |
| Thickness and Width of PVC | 0.15～0.5*120mm |
| Thickness and Width of PTP | 0.02～0.035*120mm |
| Dialyzing Paper | 50～100g*120mm |
| Mold Cooling | Running water or circulating water |
| Weight | Net weight 415 kg ;Gross weight465 kg |
| Overall Size of Machine | 1830*580*1050 mm |
| Packing Size | 1600*750*1200mm |
Heat sealing device: With high temperature sealing, the heat is adjustable, the distribution is uniform, the adhesive is strong, no wrinkle, the heat seal position cylinder is driven, the operation is accurate and convenient
Traction and positioning device:Cylinder traction positioning system with accurate stroke and accuracy of -0.1mm
