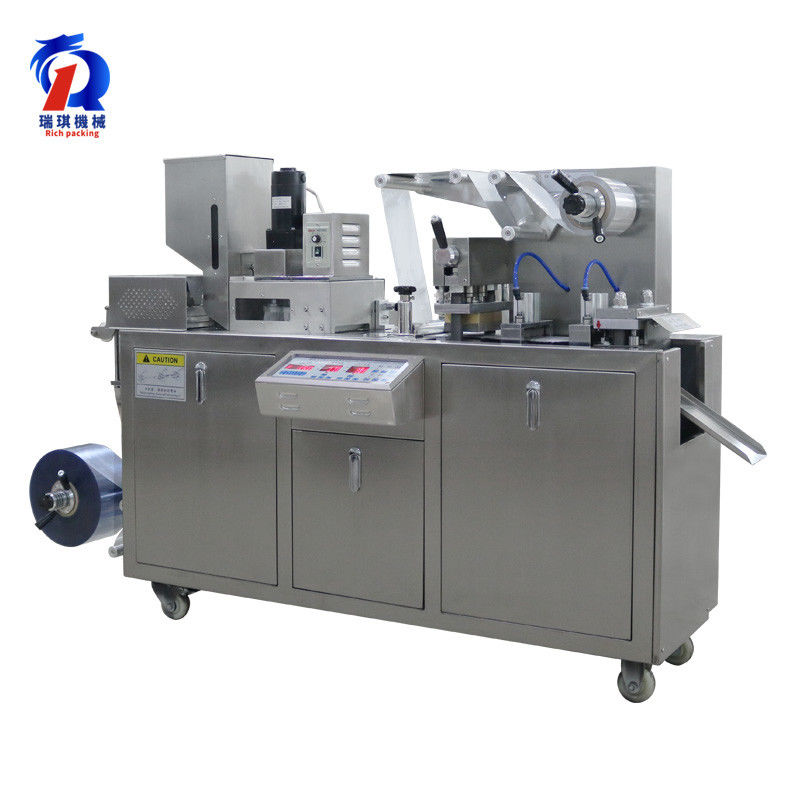

High Speed Blister Packing Machine With Micro Computer Control System

High Speed Blister Packing Machine With Micro Computer Control System

  • High Speed Blister Packing Machine With Micro Computer Control System
High Speed Blister Packing Machine With Micro Computer Control System
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: DPP-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $4200-5350/pc
Packaging Details: Standard export wooden case (1600*750*1200mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Capsule Tablets Tablet Aluminum Plastic Packaging Small Alu Blister Packing Machine Blanking: 10~40 Times/min
Production Capacity: 2400 Plates/h Power: 380V/220V/50Hz
Standard Plate: 80*57mm Standard Travel Range: 30~80mm
Power Of Main Motor: 0.75kW Total Power: 2.4kW
Vacuum: 0.4MPa-0.6MPa Thickness And Width Of PTP: 0.02~0.035*120mm
Thickness And Width Of PVC: 0.15~0.5*120mm Dialyzing Paper: 50~100g*120mm
Weight: 415 Kg Size: 1830*580*1050 Mm
High Light:

pharmaceutical blister packaging machines

,

tablet blister packing machine

Capsule Tablets Tablet Aluminum-Plastic Packaging Small Alu Blister Packing Machine



Introduction of capsule blister packing machine:

The small capsule blister packing machine is special for small pharmaceutical industry and hospital. The blister packing machine adopted micro computer control system, frequency speed changing which is suitable to pack ALU PVC, ALU ALU, PVC PAPER material packaging. The blister packaging machine meet GMP standard and easy to operate.



Model DPP-80
Blanking 10~40 times/min
Production Capacity 2400 plates/h
Max. Shaping Dia. And Depth 70*110*15mm Max. Depth 25mm(custom-made)
Standard Travel Range 30~80mm
Standard Plate 80*57mm
Power of Main Motor 0.75kW
Total Power 2.4kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*120mm
Thickness and Width of PTP 0.02~0.035*120mm
Dialyzing Paper 50~100g*120mm
Mold Cooling Running water or circulating water
Weight Net weight 415 kg ;Gross weight465 kg
Overall Size of Machine 1830*580*1050 mm
Packing Size 1600*750*1200mm



High Speed Blister Packing Machine With Micro Computer Control System 0High Speed Blister Packing Machine With Micro Computer Control System 1

Capsule sample of blister pakaging machine, the blister packing machine could suitable for capsules, tablets, honey pills, candies, disposable syringes or irregular products



Features of automatic capsule blister packing machine

1.This blister packing machine is widely used for the aluminum-plastic / paper-plastic / aluminum-aluminum sealing & packing of capsules, tablets, honey pills, candies, disposable syringes or irregular products in industries of pharmaceutical, food, health care and medical machinery, etc.

2.With the pressing & air forming device and the mechanical punch, the blister shapes are homogeneous and strong, and the blister packaging machine is specially used for the packing of big honey pill or medical machinery, etc
3.The helical-gear reducing box with parallel shaft is adopted for the main transmission part, the pin positioning is adopted for the dies of forming, thermal sealing and the impressing, the pressing plate is tight, the positioning is accurate, and the alu/ pvc automatic blister packing machine is convenient to change dies.

4.Adopt the imported high precision CNC machine tool to produce the mould,make sure the blister packaging machine is precision and quality.
5.The blister packing machine applicable to the pharmaceutical, food, health care products packaging industry plain tablets, sugar coated tablets, capsules, can be packaged tomato sauce, chocolate sauce, honey and so on
