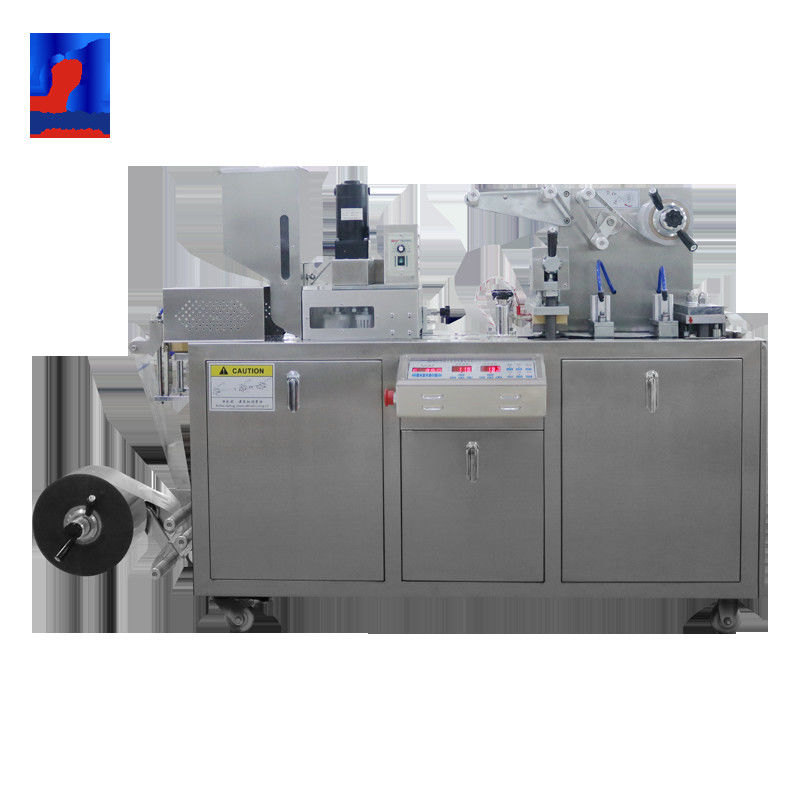

High Speed Automatic Blister Packing Machine With Long Using Life

High Speed Automatic Blister Packing Machine With Long Using Life

  • High Speed Automatic Blister Packing Machine With Long Using Life
High Speed Automatic Blister Packing Machine With Long Using Life
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: DPP-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $4200-5350/pc
Packaging Details: Standard export wooden case (1600*750*1200mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Hot Selling High Speed Automatic Round Tablet Food Blister Packing Machine Blanking: 10~40 Times/min
Production Capacity: 2400 Plates/h Power: 380V/220V/50Hz
Standard Travel Range: 30~80mm Standard Plate: 80*57mm
Power Of Main Motor: 0.75kW Total Power: 2.4kW
Thickness And Width Of PVC: 0.15~0.5*120mm Vacuum: 0.4MPa-0.6MPa
Thickness And Width Of PTP: 0.02~0.035*120mm Dialyzing Paper: 50~100g*120mm
Weight: 415 Kg Size: 1830*580*1050 Mm
High Light:

pill blister pack machine

,

tablet blister packing machine

Hot Selling High Speed Automatic Round Tablet Food Blister Packing Machine



Features of blister packing machine

1. Blister packing machine is a special kind of machine automatically pack tablet,capsule,candy, electronic cigarette , perfume and tomato sauce into aluminum plastic composite panel (ACP) or aluminum plate.
2. This automatic alu/pvc blister packing machine is newly developed and innovated by our company, and technology of blister packing machine is advanced in China by now.

3. Any alu/pvc blister packing machine of Guangdong Rich Packing Machinery Co. Ltd. could be customized depend on your product.
4. blister packing machine whole life usage.

5. The blister packing machine applicable to the pharmaceutical, food, health care products packaging industry plain tablets, sugar coated tablets, capsules, can be packaged tomato sauce, chocolate sauce, honey and so on
6. The alu pvc blister pack machine's main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.



Model DPP-80
Blanking 10~40 times/min
Production Capacity 2400 plates/h
Max. Shaping Dia. And Depth 70*110*15mm Max. Depth 25mm(custom-made)
Standard Travel Range 30~80mm
Standard Plate 80*57mm
Power of Main Motor 0.75kW
Total Power 2.4kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*120mm
Thickness and Width of PTP 0.02~0.035*120mm
Dialyzing Paper 50~100g*120mm
Mold Cooling Running water or circulating water
Weight Net weight 415 kg ;Gross weight465 kg
Overall Size of Machine 1830*580*1050 mm
Packing Size 1600*750*1200mm

High Speed Automatic Blister Packing Machine With Long Using Life 0High Speed Automatic Blister Packing Machine With Long Using Life 1

Blister packing machine sample for capsule and tablet,you could send your products to Guangdong Rich Packing Machinery Co. Ltd., then we could customize the mold of automatic blister packing machine for you.
