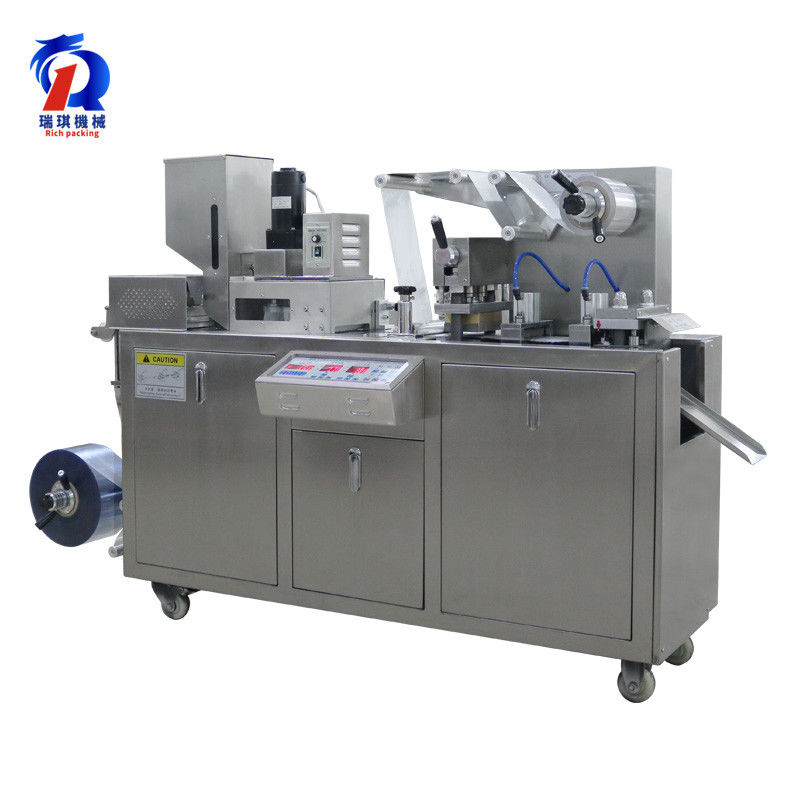

1830*580*1050 Mm Blister Packing Machine 2400 Plates / H Production Capacity

1830*580*1050 Mm Blister Packing Machine 2400 Plates / H Production Capacity

  • 1830*580*1050 Mm Blister Packing Machine 2400 Plates / H Production Capacity
1830*580*1050 Mm Blister Packing Machine 2400 Plates / H Production Capacity
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: DPP-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $4200-5350/pc
Packaging Details: Standard export wooden case (1600*750*1200mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Medicine Machinery Pill Packing Automatic Aluminum Automatic Blister Blanking: 10~40 Times/min
Production Capacity: 2400 Plates/h Power: 380V/220V/50Hz
Standard Travel Range: 30~80mm Weight: 415 Kg
Power Of Main Motor: 0.75kW Standard Plate: 80*57mm
Total Power: 2.4kW Vacuum: 0.4MPa-0.6MPa
Thickness And Width Of PVC: 0.15~0.5*120mm Thickness And Width Of PTP: 0.02~0.035*120mm
Dialyzing Paper: 50~100g*120mm Size: 1830*580*1050 Mm
High Light:

pill blister pack machine

,

tablet blister packing machine

Medicine Machinery Pill Packing Automatic Aluminum Automatic Blister

Feature of blister packing machine

1.The blister packing machine can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste, and etc.
2.The blister packing machine reaches GMP standard requirement.

3.The automatic alu/ pvc blister packing machine is suitable for the Alu-PVC package of medicine, food, electric parts etc.
4.This blister packing machine has 12 months warranty and technical support is available .

5.The automatic blister packing machinery's spindle locating devices with gear racks are equipped in the devices of forming, thermal sealing, batch No. printing, impressing and cutting, etc, and when the handle is rotated, all these devices can move flexibly in the spindle. There is a ruler of blister packing machine, with which it's convenient to position fast and correctly.
6.There are double oscillating rods in the manipulator, the puling travel's range is increased to 180mm, so the blister package machine with all kinds of size can be satisfied.

7.Blister packing machine is a special kind of machine automatically pack tablet,capsule,candy, electronic cigarette , perfume and tomato sauce into aluminum plastic composite panel (ACP) or aluminum plate.



Model DPP-80
Blanking 10~40 times/min
Production Capacity 2400 plates/h
Max. Shaping Dia. And Depth 70*110*15mm Max. Depth 25mm(custom-made)
Standard Travel Range 30~80mm
Standard Plate 80*57mm
Power of Main Motor 0.75kW
Total Power 2.4kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*120mm
Thickness and Width of PTP 0.02~0.035*120mm
Dialyzing Paper 50~100g*120mm
Mold Cooling Running water or circulating water
Weight Net weight 415 kg ;Gross weight465 kg
Overall Size of Machine 1830*580*1050 mm
Packing Size 1600*750*1200mm

1830*580*1050 Mm Blister Packing Machine 2400 Plates / H Production Capacity 0



1830*580*1050 Mm Blister Packing Machine 2400 Plates / H Production Capacity 1

The aluminum-plastic blister packaging machine is designed and manufactured for small pharmaceutical factories, health care products factories, food factories, hospital preparation rooms, etc. Aluminum-plastic blister packaging machine is mainly used for packaging capsules, tablets, capsules, suppositories, milk tablets, candy, hardware and other solid drugs and foods.
