Only create value for our customers, we have the value of existence.
 |
| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | DPP-80 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $4200-5350/pc |
| Packaging Details: | Standard export wooden case (1600*750*1200mm) |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | High Speed Automatic Al/PVC Plastic Al/Al Medicine Tablet Pill Paste Blister Filling And Sealing Packing Machine | Blanking: | 10～40 Times/min |
|---|---|---|---|
| Production Capacity: | 2400 Plates/h | Power: | 380V/220V/50Hz |
| Standard Travel Range: | 30～80mm | Standard Plate: | 80*57mm |
| Power Of Main Motor: | 0.75kW | Total Power: | 2.4kW |
| Vacuum: | 0.4MPa-0.6MPa | Thickness And Width Of PVC: | 0.15～0.5*120mm |
| Thickness And Width Of PTP: | 0.02～0.035*120mm | Dialyzing Paper: | 50～100g*120mm |
| Weight: | 415 Kg | Size: | 1830*580*1050 Mm |
| High Light: | pill blister pack machine,tablet blister packing machine |
||

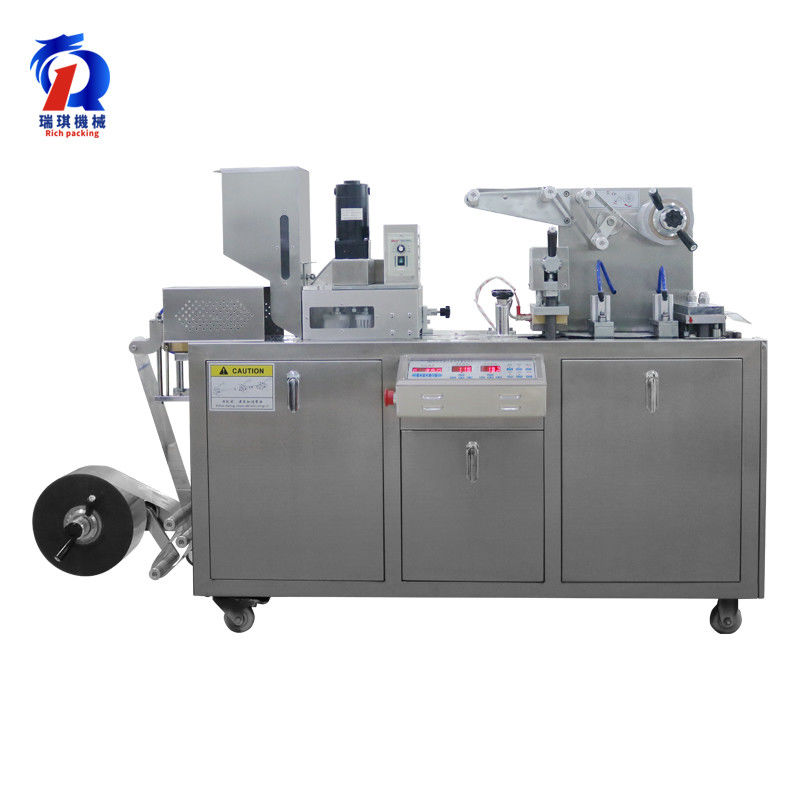

High Speed Automatic Al/PVC Plastic Al/Al Medicine Tablet Pill Paste Blister Filling and Sealing Packing Machine
1. The blister pack machine is small in size, with frequency inverter and ease of operation.
2. Adopt the imported high precision CNC machine tool to produce the mould,make sure the blister packaging machine is precision and quality.
3. The blister packing machine applicable to the pharmaceutical, food, health care products packaging industry plain tablets, sugar coated tablets, capsules, can be packaged tomato sauce, chocolate sauce, honey and so on
4. The alu pvc blister pack machine's main transmission part adopts parallel axis and bevel wheel speed reducer, with novel structure, stable running, long longevity and low noise.
5. Spare parts of blister packing machine as heat-sealing station fixing, forming, impressing and cutting etc can move freely to adjust the distance and the blister packing machine is easy to change moulds.
6. With manipulator towing and adjustable travel range, this blister packing machinery can be suited for blister packing of various size.
7. The blister packing machine can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste, and etc.
8. The blister packing machine reaches GMP standard requirement.
9. The blister packing machinery is for Alu-PVC and ALu-Alu forming blister for capsule, pill and tablet
10. The automatic blister packing machine's procedure of feeding, forming, heat-sealing, impressing, batch number printing and cutting is accomplished automatically and continuously.
| Model | DPP-80 |
| Blanking | 10～40 times/min |
| Production Capacity | 2400 plates/h |
| Max. Shaping Dia. And Depth | 70*110*15mm Max. Depth 25mm(custom-made) |
| Standard Travel Range | 30～80mm |
| Standard Plate | 80*57mm |
| Power of Main Motor | 0.75kW |
| Total Power | 2.4kW |
| Power | 380V/220V/50Hz |
| Vacuum | 0.4MPa-0.6MPa |
| Noise | <75dBA |
| Thickness and Width of PVC | 0.15～0.5*120mm |
| Thickness and Width of PTP | 0.02～0.035*120mm |
| Dialyzing Paper | 50～100g*120mm |
| Mold Cooling | Running water or circulating water |
| Weight | Net weight 415 kg ;Gross weight465 kg |
| Overall Size of Machine | 1830*580*1050 mm |
| Packing Size | 1600*750*1200mm |
GMP Standard Blister Packing Machine Easy Operation With Low Noise
Molding, traction, positioning module using proximity switch control instead of pneumatic control, higher accuracy, longer service life.
Molding of blister packing machine die aluminum alloy material, good heat absorption, easy polishing, mold smooth and smooth, easy to form. Hot sealing die using stainless iron, high hardness, no rust, stamping die chlorine 12 molybdenum vanadium.
