Pharmaceutical Blister Packaging Machines For Pharmaceutical Industry

Pharmaceutical Blister Packaging Machines For Pharmaceutical Industry

  • Pharmaceutical Blister Packaging Machines For Pharmaceutical Industry
Pharmaceutical Blister Packaging Machines For Pharmaceutical Industry
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: DPP-80
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $4200-5350/pc
Packaging Details: Standard export wooden case (1600*750*1200mm)
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Alu Pvc Packaging Machine Blister Packing Machine For Tablet And Capsule Blanking: 10~40 Times/min
Production Capacity: 2400 Plates/h Power: 380V/220V/50Hz
Standard Travel Range: 30~80mm Standard Plate: 80*57mm
Power Of Main Motor: 0.75kW Total Power: 2.4kW
Vacuum: 0.4MPa-0.6MPa Thickness And Width Of PVC: 0.15~0.5*120mm
Thickness And Width Of PTP: 0.02~0.035*120mm Dialyzing Paper: 50~100g*120mm
Weight: 415 Kg Size: 1830*580*1050 Mm
High Light:

pill blister pack machine

,

tablet blister packing machine

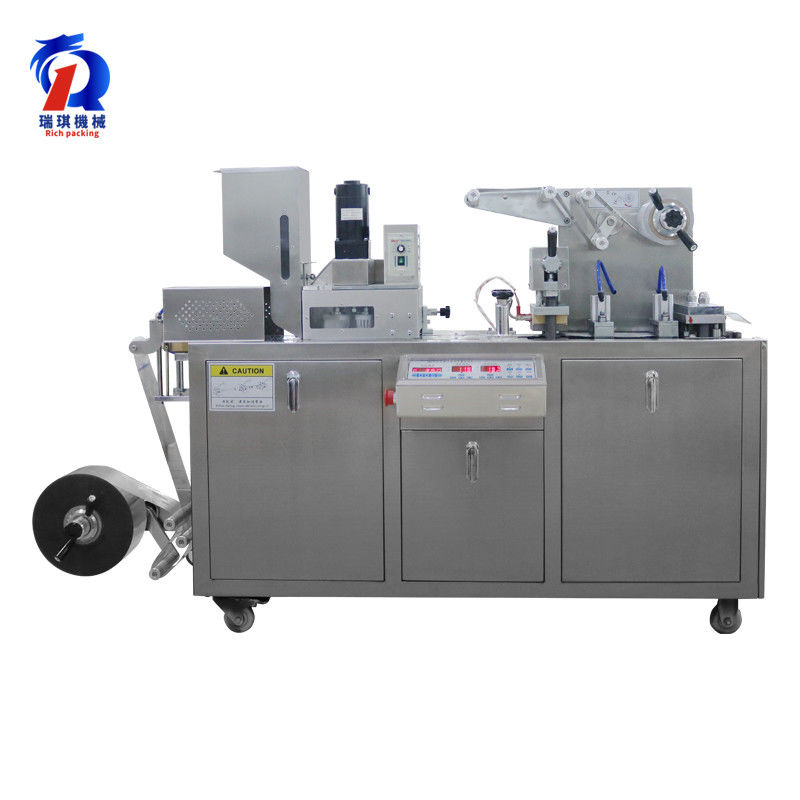

Alu pvc Packaging Machine Blister Packing Machine for Tablet and Capsule

1. Blister packing machine is a special kind of machine automatically pack tablet,capsule,candy, electronic cigarette , perfume and tomato sauce into aluminum plastic composite panel (ACP) or aluminum plate.
2. This automatic alu/pvc blister packing machine is newly developed and innovated by our company, and technology of blister packing machine is advanced in China by now.
3. This blister packing machine is widely used for the aluminum-plastic / paper-plastic / aluminum-aluminum sealing & packing of capsules, tablets, honey pills, candies, disposable syringes or irregular products in industries of

pharmaceutical, food, health care and medical machinery, etc.

4. The blister packing machine is the preferred machine possessing fully automatic shaping,adding,sealing and blanking, the automatic blister packing machine is the preferred products for small and medium sized production in

pharmaceutical manufacturing,chemical industry, electronicproductsand food industry, the blister packaging machinery meets the requirements of GMP.

5. The automatic blister packing machinery's spindle locating devices with gear racks are equipped in the devices of forming, thermal sealing, batch No. printing, impressing and cutting, etc, and when the handle is rotated, all these

devices can move flexibly in the spindle. There is a ruler of blister packing machine, with which it's convenient to position fast and correctly.



Model DPP-80
Blanking 10~40 times/min
Production Capacity 2400 plates/h
Max. Shaping Dia. And Depth 70*110*15mm Max. Depth 25mm(custom-made)
Standard Travel Range 30~80mm
Standard Plate 80*57mm
Power of Main Motor 0.75kW
Total Power 2.4kW
Power 380V/220V/50Hz
Vacuum 0.4MPa-0.6MPa
Noise <75dBA
Thickness and Width of PVC 0.15~0.5*120mm
Thickness and Width of PTP 0.02~0.035*120mm
Dialyzing Paper 50~100g*120mm
Mold Cooling Running water or circulating water
Weight Net weight 415 kg ;Gross weight465 kg
Overall Size of Machine 1830*580*1050 mm
Packing Size 1600*750*1200mm

Pharmaceutical Blister Packaging Machines For Pharmaceutical Industry 0Pharmaceutical Blister Packaging Machines For Pharmaceutical Industry 1

Blister packing machine sample for capsule and tablet,you could send your products to Guangdong Rich Packing Machinery Co. Ltd., then we could customize the mold of automatic blister packing machine for you.
