Only create value for our customers, we have the value of existence.
 |
| Place of Origin: | Guangzhou, China |
| Brand Name: | Rich Packing |
| Certification: | CE ISO SGS |
| Model Number: | NJP-8200 |
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | $74000-81000/pc |
| Packaging Details: | Standard export wooden case |
| Delivery Time: | 20-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 pcs/month |
| Name: | Automatic Powder Filler Capsule Filling Machine For Hard Empty Capsule | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support |
|---|---|---|---|
| Capacity: | 8200 Ccapsules / Min | Weight: | 4000Kg |
| Dimension(l*w*h): | 1800×1390×2200mm | Type: | Filling Machine |
| Automatic Grade: | Automatic | Voltage: | 220V/380V 50Hz |
| Condition: | New | Driven Type: | Electric |
| Power: | 14KW | Warranty: | 12 Momths |
| Highlight: | automatic capsule filler,auto capsule filling machine |
||

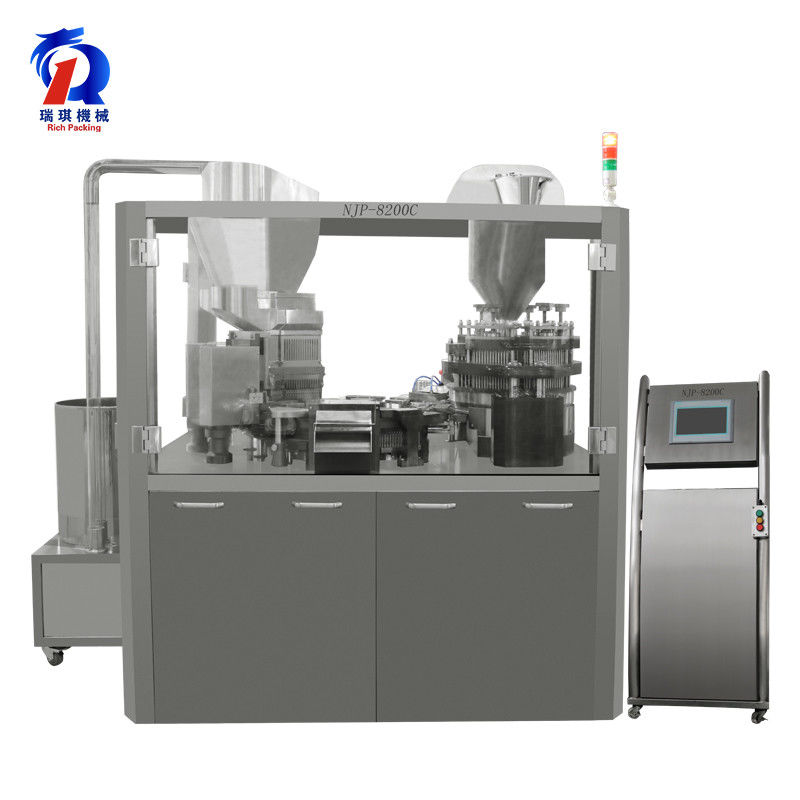

Automatic Powder Filler Capsule Filling Machine for Hard Empty Capsule
| Production capacity | 492000pcs/h |
| Net weight of machine | 4000Kg |
| Overall size of machine | 1800×1390×2200mm |
| Power | 380V 50Hz |
| Total power | 14KW |
| No.of segment bores | 58 |
| Vacuum | -0.02~0.06Mpa |
| Dust collector | Air consumption 0.2m3/min Air pressure 0.3-0.4Mpa |
| Noise | <75DB(A) |
| Making rate | Empty capsule 99.9% Full capsule 99.8% |
| Applicable capsule | 00,0,1,2,3,4,5# |
| Filling error | Western medicine:±3% Chinese medicine:±4% |
| Applicable product | Power,granule,pellet,tablet |
1.This pharmaceutical capsule filling machine has safety firs, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.
2.Guangdong Rich Packing Machinery Co. Ltd.'s capsule filler machine deploy segmentation adapt German Cai Si for 3 seconds (Zeiss) optical dividing head indexing, indexing shaft completed a one-time processing, loading and high precision,the error is less than or equal to 3%.
3.Guangdong Rich Packing Machinery Co. Ltd. has big design deparment of capsule filling machine,the filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.
4.This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.
5.This automatic capsule fill machines can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output.
6.The capsule filling machine has the advantages of accurate loading, stable operation and no dust
