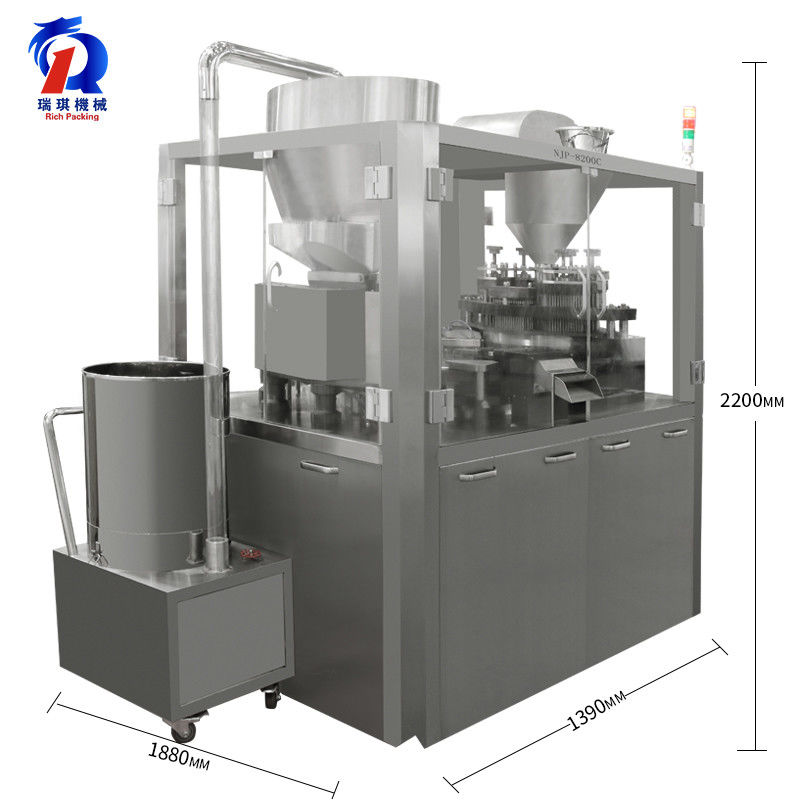

Pneumatic Automatic Capsule Filling Machine 1800×1390×2200mm Dimension

Pneumatic Automatic Capsule Filling Machine 1800×1390×2200mm Dimension

  • Pneumatic Automatic Capsule Filling Machine 1800×1390×2200mm Dimension
Pneumatic Automatic Capsule Filling Machine 1800×1390×2200mm Dimension
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: NJP-8200
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $74000-81000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: Medicine Machinery Powder Pneumatic Automatic Capsule Filler Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support
Capacity: 8200 Ccapsules / Min Weight: 4000Kg
Type: Filling Machine Dimension(l*w*h): 1800×1390×2200mm
Automatic Grade: Automatic Voltage: 220V/380V 50Hz
Condition: New Driven Type: Electric
Power: 14KW Warranty: 12 Momths
High Light:

pill filler machine

,

auto capsule filling machine

Medicine Machinery Powder Pneumatic Automatic Capsule Filler Machine



Production capacity 492000pcs/h
Net weight of machine 4000Kg
Overall size of machine 1800×1390×2200mm
Power 380V 50Hz
Total power 14KW
No.of segment bores 58
Vacuum -0.02~0.06Mpa
Dust collector Air consumption 0.2m3/min Air pressure 0.3-0.4Mpa
Noise <75DB(A)
Making rate Empty capsule 99.9% Full capsule 99.8%
Applicable capsule 00,0,1,2,3,4,5#
Filling error Western medicine:±3% Chinese medicine:±4%
Applicable product Power,granule,pellet,tablet

1. The capsule filling machine is the third generation of innovative products of pharmacy machinery.

2. Pharmacy capsule filling equipment can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).

3. This automatic capsule fill machines can automatically finish the production process including sowing, capsule separating, filling, locking, unqualified capsule rejected and finished products output.

4. Guangdong Rich Packing Machinery Co. Ltd. has big design deparment of capsule filling machine,the filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.

5. This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.
6. The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.

7. When we are manufacture the capsule filling machines ,the filling rod, the upper and lower die holes, the measuring disk adapt non polar electronic polishing treatment, enhance the material fluidity, which has solved the problems of sticky of material, stick with mold and easy to absorb moisture. (According to the material properties and the special requirements of customers, Guangdong Rich Packing Machinry Co. Ltd can provide the Teflon coating processing service)
