Fully Automatic Hard Capsule Filling Machine With 12 Months Warranty

Fully Automatic Hard Capsule Filling Machine With 12 Months Warranty

  • Fully Automatic Hard Capsule Filling Machine With 12 Months Warranty
Fully Automatic Hard Capsule Filling Machine With 12 Months Warranty
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: NJP-8200
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $74000-81000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Name: NJP Series Fully Automatic Control Hard Capsule 0 00 Capsule Filling Machine After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support
Capacity: 8200 Ccapsules / Min Dimension(l*w*h): 1800×1390×2200mm
Weight: 4000Kg Type: Filling Machine
Automatic Grade: Automatic Voltage: 220V/380V 50Hz
Condition: New Driven Type: Electric
Power: 14KW Warranty: 12 Momths
High Light:

automatic capsule filler

,

auto capsule filling machine

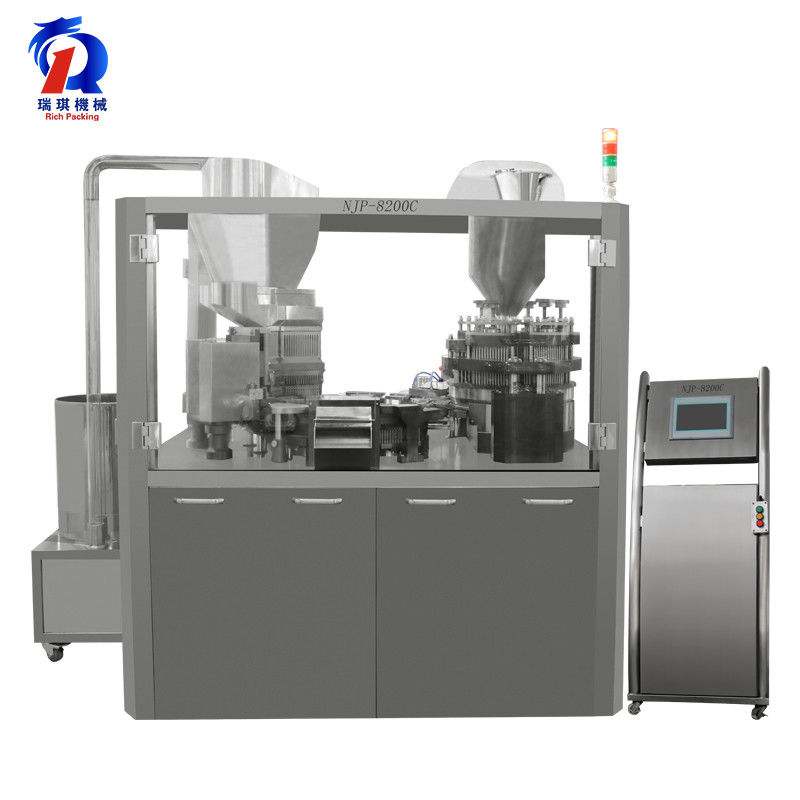

NJP Series Fully Automatic Control Hard Capsule 0 00 Capsule Filling Machine



Production capacity 492000pcs/h
Net weight of machine 4000Kg
Overall size of machine 1800×1390×2200mm
Power 380V 50Hz
Total power 14KW
No.of segment bores 58
Vacuum -0.02~0.06Mpa
Dust collector Air consumption 0.2m3/min Air pressure 0.3-0.4Mpa
Noise <75DB(A)
Making rate Empty capsule 99.9% Full capsule 99.8%
Applicable capsule 00,0,1,2,3,4,5#
Filling error Western medicine:±3% Chinese medicine:±4%
Applicable product Power,granule,pellet,tablet

1. The capsule filling machine is the third generation of innovative products of pharmacy machinery.

2. Pharmacy capsule filling equipment can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).

3. The capsule filling machine has the advantages of accurate loading, stable operation and no dust.

4. This pharmaceutical capsule filling machine has safety firs, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.

5. Rotary of capsule filling machine design to obtain a patent for utility model, the sealing ring using imported SIL silicone rubber, effectively prevent powder into the internal turntable, good sealing performance, no dust overflow pollution

Fully Automatic Hard Capsule Filling Machine With 12 Months Warranty 0



6.Guangdong Rich Packing Machinery Co. Ltd. has big design deparment of capsule filling machine,the filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the

adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.

7.The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.

8.equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.
