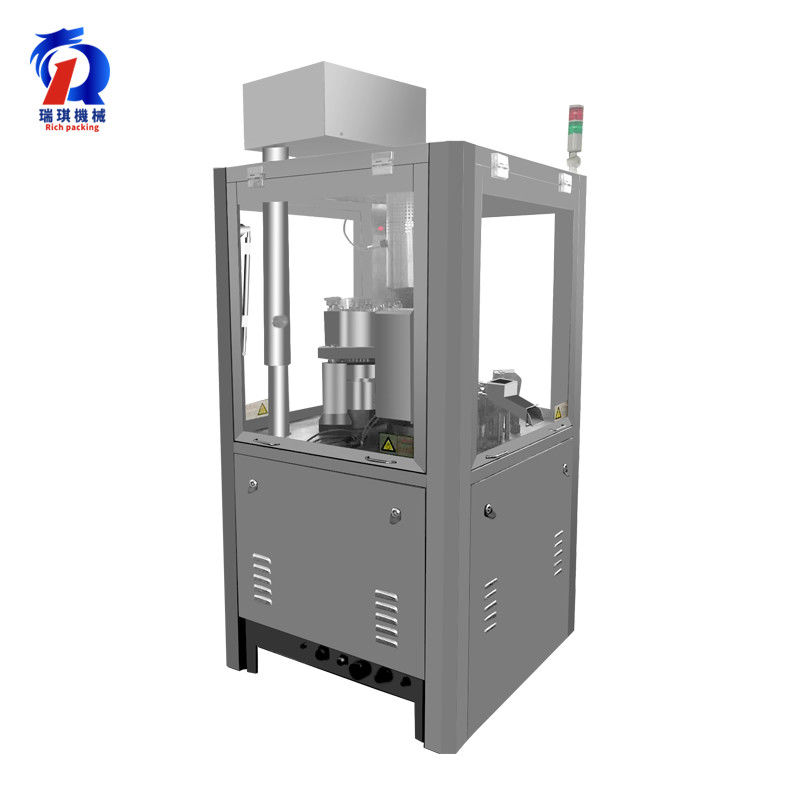

Automatic Hard Gelatin Capsule Filling Machine Suitable 000 00 0 1 2 3 4 5 Capsule

Automatic Hard Gelatin Capsule Filling Machine Suitable 000 00 0 1 2 3 4 5 Capsule

  • Automatic Hard Gelatin Capsule Filling Machine Suitable 000 00 0 1 2 3 4 5 Capsule
Automatic Hard Gelatin Capsule Filling Machine Suitable 000 00 0 1 2 3 4 5 Capsule
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Certification: CE ISO SGS
Model Number: NJP-800
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $15000-21000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support Capacity: 48000 Capsules/h
Capsule Size: 000 00 0 1 2 3 4 5 Vacuum: 20m3/h-0.04-0.08Mpa
Dimension(l*w*h): 865*855*1900(mm) Weight: 900KG
Voltage: 220V/380V 50 Hz Warranty: 1 Year
Noise: <75DB(A)
Highlight:

automatic capsule filler

,

pill filler machine

Automatic Hard Gelatin Capsule Filling Machine Suitable 000 00 0 1 2 3 4 5 Capsule



1.Pharmacy capsule filling equipment can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).

2.The capsule filling machine is the third generation of innovative products of pharmacy machinery.

3.This pharmaceutical capsule filling machine has safety firs, all the working stations take full account of the personal safety, such as the door control and emergency stop switch.

4.Guangdong Rich Packing Machinery Co. Ltd. has big design deparment of capsule filling machine,the filling mechanism obtains the national new patent, adopts the three-dimensional adjustment, makes the metering plate evenly force, the adjustment volume is precise and quick, and the powder recovery device is added, the recycling rate is 100%, which reduces the waste and improves the economic benefit.



Production capacity 48000 pcs/h
Net weight of machine 900Kg
Overall size of machine 865×855×1900(mm)
Power 380/220V 50Hz
Total power 5KW
No.of segment bores 6
Vacuum 20m3/h-0.04-0.08Mpa
Dust collector 17.6Kpa 180m3/h
Noise <75DB(A)
Making rate Empty capsule 99.9% Full capsule 99.8%
Applicable capsule 00,0,1,2,3,4,5#
Filling error Western medicine:±3% Chinese medicine:±4%
Applicable product Power,granule,pellet,tablet

The data comes from Guangdong Rich Packaging Machinery Co., Ltd







Automatic Hard Gelatin Capsule Filling Machine Suitable 000 00 0 1 2 3 4 5 Capsule 0

Automatic Hard Gelatin Capsule Filling Machine Suitable 000 00 0 1 2 3 4 5 Capsule 1

Filling station

5.This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.
6.The capsule filler machines use the imported SIL silicone rubber sealing ring to block the powder into the bearing, which effectively solves the problem of the card machine that the powder enters the bearing.

7.When we are manufacture the capsule filling machines ,the filling rod, the upper and lower die holes, the measuring disk adapt non polar electronic polishing treatment, enhance the material fluidity, which has solved the problems of sticky of material, stick with mold and easy to absorb moisture. (According to the material properties and the special requirements of customers,Guangdong Rich Packing Machinry Co. Ltd can provide the Teflon coating processing service)

8.equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.
