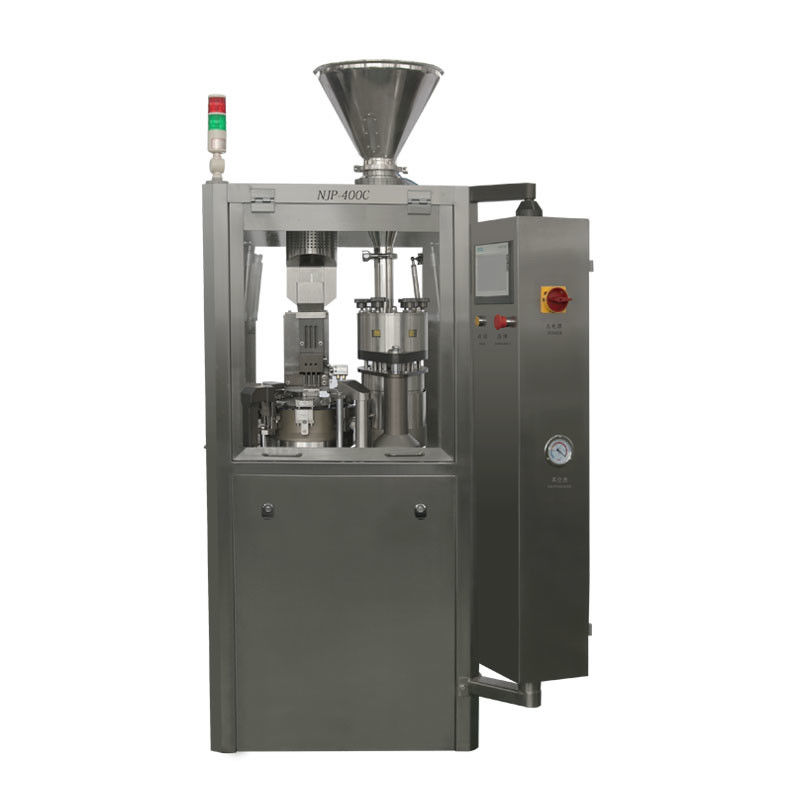

Powder Capsule Filling Fully Automatic Machines CE ISO SGS 24000 Capsules per Hour

Powder Capsule Filling Fully Automatic Machines CE ISO SGS 24000 Capsules per Hour

  • Powder Capsule Filling Fully Automatic Machines CE ISO SGS 24000 Capsules per Hour
Powder Capsule Filling Fully Automatic Machines CE ISO SGS 24000 Capsules per Hour
Product Details:
Place of Origin: Guangzhou, China
Brand Name: Rich Packing
Model Number: NJP-400
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: $9000-17000/pc
Packaging Details: Standard export wooden case
Delivery Time: 20-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 pcs/month
Contact Now
Detailed Product Description
Certification: CE,ISO,SGS Name: Powder Capsule Filling Fully Automatic Machines CE ISO SGS 24000 Capsules Per Hour
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support Material: Stainless Steel
Weight: 600KG Dimension(l*w*h): 805*705*1760 Mm
Voltage: 220V/380V 50Hz Driven Type: Electric
Condition: New Noise: <75DB(A)
High Light:

pill filler machine

,

auto capsule filling machine

Powder Capsule Filling Fully Automatic Machines CE ISO SGS 24000 Capsules per Hour

Product speed 24000 pcs/h
NG 600Kg
Machine size 805×705×1760(mm)
Power 380/220V 50Hz
Total power 3.5KW
No.of segment bores 3
Vacuum 20m3/h-0.04-0.08Mpa
Dust collector 17.6Kpa 180m3/h
Noise <75DB(A)
Filling rate Empty capsule 99.9% Full capsule 99.8%
Capsule size 00,0,1,2,3,4,5#
Filling error ±3%
Applicable product Power,granule,pellet,tablet

The data comes from Guangdong Rich Packaging Machinery Co., Ltd

1.Guangdong Rich Packing Machinery Co., Ltd. is a professional manufacturer and supplier of pharmaceutical and packing machinery and equipment in China.

2.Pharmacy capsule filling equipment can fill powder, granules and other materials into hollow capsules (000#, 00#, 0#, 1#, 2#, 3#, 4#, 5#).

3.The capsule filling machine has the advantages of accurate loading, stable operation and no dust.

4.Transverse biaxial adapt PTFE oil-less bearing, no need refueling; modular structure, equipped with jog operation, convenient maintenance and cleaning, replacement of mold only 15 minutes,our capsule filling machine is newest.

5.This series capsule filling machinery capsule suction, capsule outlet, locking and waste rejection adapt double sealing device, one is imported NBR sealing rubber which prevents the loss of lubricating oil.

6.equipped with on-line air pressure die cleaning system, the upper and lower dies are clean and without dust, improve the sowing effect.

7.With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designed and developed many types of machinery and equipments including tablet press, soft and hard blister packing machine, capsule filling machines, counting machine and cartoning box machine, etc.

8.One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished



Detail show of capsule filling machine :

Powder Capsule Filling Fully Automatic Machines CE ISO SGS 24000 Capsules per Hour 0







Powder Capsule Filling Fully Automatic Machines CE ISO SGS 24000 Capsules per Hour 1

New type bracket
